Biogas laser oxygen online analyzer

Biogas laser oxygen online analyzerIt is an analytical instrument based on laser absorption spectroscopy technology, specifically used for real-time online monitoring of oxygen content in biogas production, storage, and utilization processes. It can continuously, quickly, and accurately measure the volume fraction of oxygen in biogas, providing key data support for the safe and stable operation of biogas projects.

The core working principle of this analyzer is tunable semiconductor laser absorption spectroscopy（TDLAS）Technology. When a laser of a specific wavelength passes through a biogas sample containing oxygen, the laser energy is selectively absorbed by oxygen molecules, and the degree of absorption is proportional to the concentration of oxygen. By accurately measuring the intensity changes before and after laser absorption, combined with Lambertian analysis-The concentration of oxygen in biogas can be calculated using spectral analysis methods such as Bill's law. This technology has high selectivity and can effectively avoid interference from other components such as methane, carbon dioxide, and water vapor in biogas, ensuring the accuracy of measurement results.

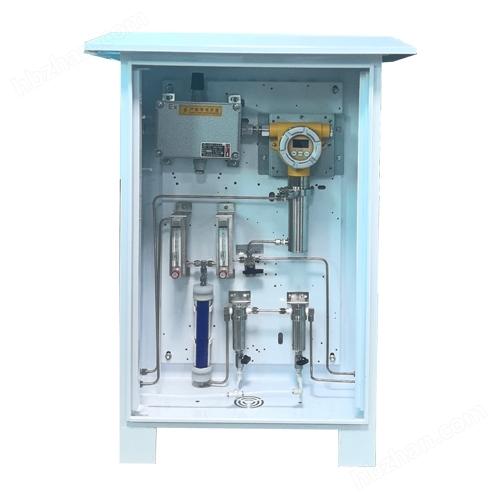

In terms of structural composition, laser oxygen online analyzers typically include a laser emission module, a gas absorption cell, a laser reception and detection module, a signal processing and data output module, and a sample gas preprocessing system. The laser emitting module generates stable specific wavelength laser; The gas absorption cell provides a place for the interaction between the sample gas and the laser, and its design needs to ensure that the sample gas is fully in contact with the laser and the optical path is stable; The receiving detection module converts the optical signal transmitted through the absorption cell into an electrical signal; The signal processing module amplifies, filters, and demodulates electrical signals, and calculates oxygen concentration based on spectral algorithms; The data output module uses digital signals (such asRS485The4-20mA）Real time uploading of measurement results to the control system or display terminal through network interfaces or other forms. The sample gas pretreatment system is a key component designed for the characteristics of biogas, responsible for filtering (removing dust, tar, and other particulate matter), dehydrating, stabilizing pressure, and stabilizing flow of the raw biogas to protect the core components of the analyzer from pollution and damage, ensure that the sample gas state meets measurement requirements, and improve the reliability and long-term stability of analysis.

Laser oxygen online analyzer has significant technical advantages. Firstly, it has high precision and sensitivity, capable of detecting as low asppmThe level of oxygen concentration variation meets the demand for trace oxygen monitoring in biogas safety monitoring. Secondly, it is fast response, with an analysis cycle usually in seconds, which can reflect the dynamic changes in oxygen content in biogas in real time, making it easy to detect abnormal situations in a timely manner. Furthermore, its measurement process is not affected by background gas interference and has strong selectivity, especially suitable for complex biogas environments. In addition, the instrument adopts non-contact measurement, and the core optical components are not easily damaged, with low maintenance and long service life. At the same time, it has the ability of online continuous monitoring, which can achieve unmanned operation, reduce labor costs, and seamlessly integrate with automation control systems, providing a data foundation for the intelligent management of biogas projects.

The application of this analyzer is crucial in biogas engineering. The main component of biogas is methane, which is a flammable and explosive gas. When the oxygen content in biogas exceeds a certain threshold (usually5%）When exposed to a fire source, an explosive mixture of gases is formed, which can easily lead to explosion accidents. Therefore, the laser oxygen online analyzer is installed at key nodes such as biogas generators, gas storage tanks, and gas pipelines to monitor oxygen concentration in real time. Once the oxygen content exceeds the standard, an alarm signal can be immediately issued and corresponding safety interlock protection measures can be triggered, such as automatically cutting off the gas source and starting the ventilation device, effectively preventing explosion accidents and ensuring production safety. In addition, monitoring the oxygen content can indirectly reflect the operation status of the biogas fermentation process. For example, if the fermentation system is not tightly sealed and leads to air leakage, it will increase the oxygen content and affect the methane yield. The data from the analyzer can help operators identify problems in a timely manner, optimize the fermentation process, and improve biogas production and quality. In the process of biogas purification (such as the production of biogas), precise control of oxygen content is also necessary to ensure the quality of the purified product and the safety of the subsequent processing.

In conclusion,Biogas laser oxygen online analyzerWith its laser spectroscopy technology, excellent performance indicators, and reliable operational performance, it has become an important key equipment for modern biogas engineering safety monitoring and optimized operation, which is of great significance for promoting the safe, efficient, and sustainable development of the biogas industry.
