1、 Structural principle

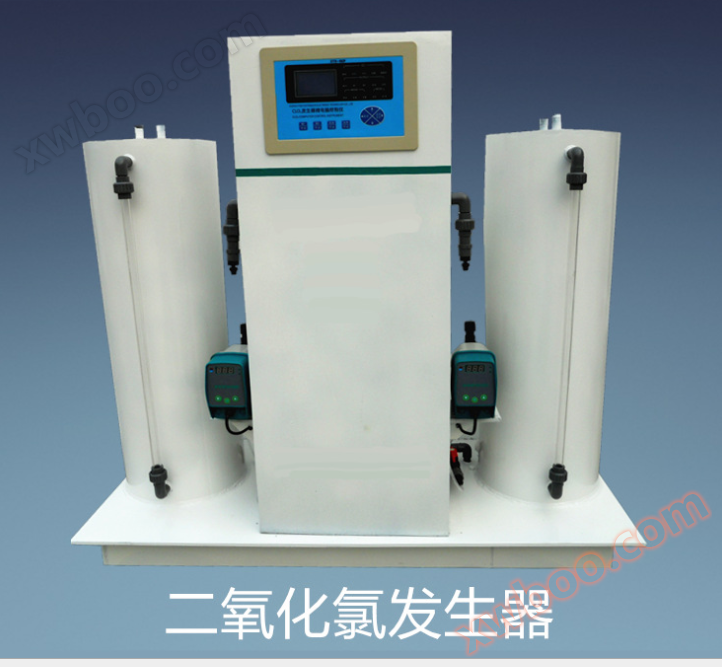

Structure: The generator consists of a feeding system, a reaction system, a temperature control system, an absorption system, a safety system, and an automatic residual liquid treatment system.
Principle: Under negative pressure conditions, sodium chlorate and aqueous hydrochloric acid are quantitatively transported to the reaction system. After heating and aeration reactions, a mixture of chlorine dioxide and chlorine gas is produced, which is absorbed by the absorption system to form a certain concentration of chlorine dioxide mixed disinfectant and directly introduced into the water to be treated.

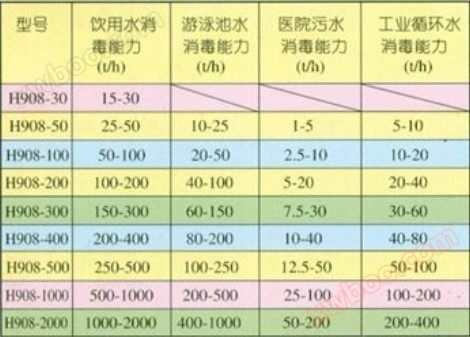

2、 Product specifications
3、 Functional parameters
4、 Performance characteristics
New process: adopting chemical negative pressure aeration process. Reasonable structure, strong reliability, low failure rate, and basically no need for maintenance;
High content: The chlorine dioxide content in the product can reach over 86% calculated as effective chlorine, and if purified, the chlorine dioxide content can reach over 98%;
● Long lifespan: The service life can reach more than 5 years;
● Easy to operate: The device has a small size (occupying an area of 0.5-1.2 square meters), light weight, no need for civil engineering, easy installation, simple operation, and convenient maintenance. It can achieve different degrees of automation control according to user requirements;
Low cost: The raw materials are easy to purchase, the operating costs are low, and the comprehensive cost for five years of use is only about 50% of that of sodium hypochlorite and electrolytic chlorine dioxide generators; About 30% of pure chlorine dioxide generator (using sodium chlorite as raw material);
● High efficiency: The mixture of chlorine dioxide and chlorine gas has a synergistic effect, and its bactericidal ability is superior to that of pure chlorine dioxide or chlorine gas;
● Pollution free: Automatic treatment of residual liquid, no secondary pollution, safe and reliable, and no leakage.
