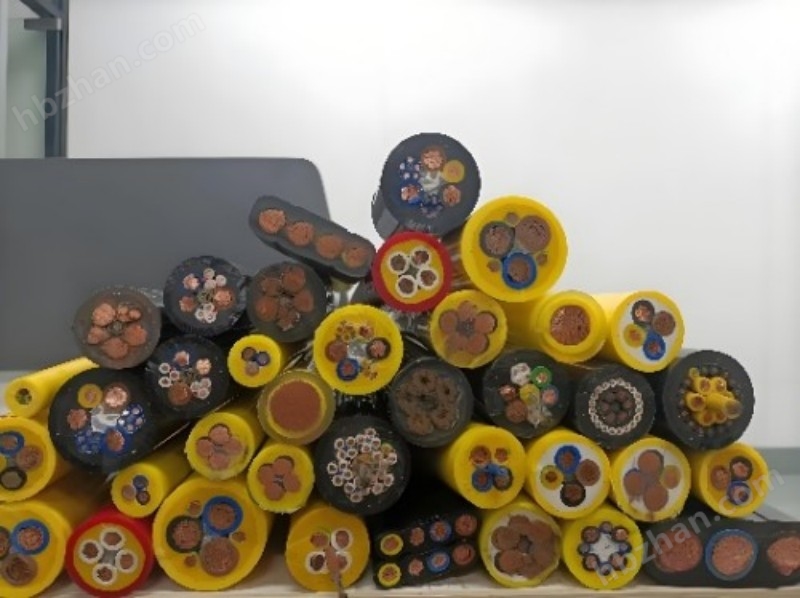

CR gantry crane drum composite cable

CR gantry crane drum composite cableSpecially designed for heavy mobile equipment such as port gantry cranes (gantry cranes), suitable for high dynamic working conditions where the drum is frequently retracted and retracted, withexcellentThe tensile, wear-resistant, and flexural properties ensure long-term stable operation in harsh environments.

Main functions:

Its core function is to ensure stable power supply during dynamic movement, while resisting mechanical stress, wear, and corrosion, thereby extending the service life of the equipment and improving safety performance.

Here is a detailed analysis:

‌Tensile and wear-resistant designThe cable adopts a double-layer sheath structure, with the outer layer made of imported polyurethane (PUR) material, which is oil resistant, corrosion-resistant, and UV resistant; The inner layer is reinforced by aramid fiber weaving, providing tensile and torsional resistance to prevent internal structural damage during winding.

‌Dynamic adaptabilityThe conductor adopts multiple strands of ultra-fine oxygen free copper wire twisted, optimizing the twisted pitch to reduce bending stress, ensuring flexibility and fatigue resistance under high-frequency winding.

‌environmental toleranceThe working temperature range is usually between -30 ℃ and 90 ℃, which can adapt toharshClimate; The sheath material has waterproof and chemical corrosion resistance characteristics, suitable for outdoor or industrial polluted environments.

‌Safe and DurableCompliant with international flame retardant standards (such as IEC 60332-1-2), the outer sheath is designed to prevent cracking due to aging, and the service life is significantly longer than that of ordinary cables.

Technical parameter reference

‌conductor structureMultiple strands of ultra-fine bare copper wire twisted together, meeting high flexibility standards.

‌sheath materialPolyurethane (PUR) or specially designed composite elastomers, UV resistant and tear resistant.

‌bend radiusDuring dynamic installation, approximately 8-10 times the outer diameter of the cable ensures flexible movement.

‌voltage levelCommonly 0.6/1kV or higher, suitable for different power requirements.

1. CRC-TRCQ series

370+135mm ²: Suitable for cranes, dock gantry cranes and other equipment, using stranded copper conductors and PVC/polypropylene insulation, with tensile and wear-resistant properties.

395+250mm ²: Flexible tensile design, specifically designed for heavy-duty machinery such as gantry cranes, priced at approximately 230 yuan/meter.

350+116mm ²: with steel wire reinforced structure, suitable for equipment such as cranes and overhead cranes, with high tensile and torsional resistance.

2. CRC-TRZQ series

‌350+116mm²‌：CRDoor machine drum composite cableSpecially designed for the drum, with steel wire reinforcement, suitable for equipment such as cranes and cranes, with high tensile and torsional resistance.

3. Other models

335+116mm ²: Suitable for equipment such as reclaimers and stackers, with polyurethane sheath and wear-resistant properties.

3x35+3x6mm ²: Flexible tensile design, suitable for harsh working conditions such as port gantry cranes and large shore cranes in deepwater ports.

These models all use stranded copper conductors and polyurethane or polyvinyl chloride/Polypropylene insulation has characteristics such as tensile strength, wear resistance, and bending resistance, and is suitable for complex environments such as ports, hydropower stations, and mines. If more detailed technical parameters or customized requirements are needed, specific application scenarios can be further provided.
If you need more detailed specifications (such as conductor cross-sectional area, voltage level) or customized requirements, please provide specific parameters, and I will further optimize the description.
