Campus weather station equipment

Campus weather station equipment is a "living textbook" for conducting science popularization education. Traditional meteorological knowledge teaching often relies on textbook theories, which are abstract and difficult to understand. However, automatic weather stations transform abstract meteorological principles into intuitive monitoring data and equipment operation processes, allowing students to observe the collection, transmission, and analysis process of meteorological data up close.

1、 Product Introduction

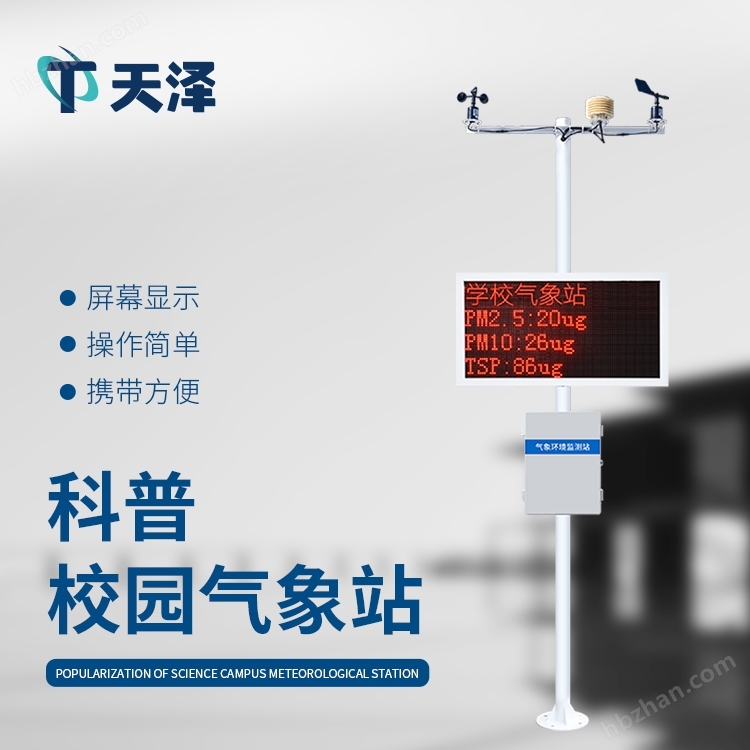

　　XQ4Campus weather station equipmentIt is a highly integrated, low-power, quick to install, and easy to use scientific research grade meteorological station for teaching purposes.

2、 Product Features

1. Transmission method: GPRS, optional wired transmission;

2. Power supply mode: mains power;

3. Display mode: 1 meter * 0.5 meter LED screen;

4. Hardware composition: sensors, pole supports, equipment boxes, LED screens, collectors, cloud platforms

IIICampus automatic weather stationTechnical Specifications

1. Sensor parameters

Name Measurement Range Resolution Accuracy

Environmental temperature -40~+80 ℃ 0.01 ℃± 0.3 ℃ (25 ℃)

Relative humidity 0-100% RH 0.01% RH ± 3% RH (20%~80%)

Light intensity 0-157286LUX1Lux<± 3%

Atmospheric pressure 300-1100hPa 0.1hPa ± 0.25%

Dew point temperature 0~+70 ℃ 0.1 ℃± 1 ℃

Soil temperature -30~+70 ℃ 0.01 ℃± 0.3 (-10~70 ℃)

Soil moisture 0-100% 0.1% ± 3%

Soil salinity: 0-20000 US/cm, 1 US/cm ± 3 (0-10000 US/cm) ± 5% (full range)

Soil pH 0-14PH0.01 ± 0.1PH

Wind direction 0-360 degrees 0.1 degrees ± 1 degree

Wind speed 0-60m/s 0.01m/s ± 0.2m/s

Average wind speed ☆ 0-60m/s 0.01m/s ± 0.2m/s

Rainfall ≤ 4mm/min0.2mm ≤± 2%

UV radiation 0-500W/㎡ 0.01W/㎡ ≤± 3%

Sunshine hours 0-6500h 0.1 h<0.2 h

Total photoelectric radiation 0-2000W/m21W/m2<± 3%

Photosynthetically active radiation 0-2000W/m21W/m2 ≤± 5%

PM2.50-1000ug/m ³ 1ug/m ³ ± 10% (<500 micrograms)

PM100-1000ug/m ³ 1ug/m ³ ± 10% (<500 micrograms)

Carbon monoxide 0-1000ppm1PPM ± 2PPM

Sulfur dioxide 0-20PPM 0.1PPM ± 1PPM

Nitrogen dioxide 0-20PPM 0.1PPM ± 1PPM

Ozone 0-20PPM 0.1PPM ± 1PPM

Negative oxygen ions ranging from 0 to 100000/cm3, with a reading of ± 10%; Ionic mobility ≤± 20%

Oxygen content 0-25% Vol0.1% ± 3% FS

Carbon dioxide 400-5000ppm 1PPM ± (50ppm+5% reading)

Evaporation capacity 0-190mm 0.01mm ± 1%

2. Data storage: no less than 500000 records

3. Power consumption: 202W

4. Production enterprises have ISO quality management system, environmental management system, and occupational health management system certifications

5. The production enterprise has a computer software registration certificate

6. The production enterprise is a Level 3 credit enterprise

4、 Introduction to Cloud Platform

1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation.

2. Support multi account and multi device login

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to scale, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in tabular format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc.

10. Support data post-processing function

11. Support external running of JavaScript scripts
