Complete set of quartz sand mechanical filtration tank

Product Introduction: Quartz sand filter is an effective means of removing suspended solids in water. It is an important unit in sewage deep treatment, sewage reuse, and water treatment. Its function is to further remove pollutants that have already been flocculated in water. It achieves the goal of water purification through the interception, sedimentation, and adsorption of filter materials. This type of equipment is a steel pressure filter. The filter material of quartz sand filter is generally single-layer quartz sand with a particle size of 0.8-1.2mm and a filter layer height of 1.0-1.2m.

Quartz Sand Filter - Product Features

1. The device has a simple structure and is easy to operate and maintain.

2. Operation can achieve automatic control.

3. High filtration efficiency, low resistance, large processing flow rate, and few backwash cycles.

Quartz sand filter - Technical parameters

1. Design pressure: 6kg f/cm ², test pressure: 9kg f/cm ²

2. Inlet water temperature: 20 ℃;

3. Operating flow rate: 10m/h;

4. Outlet water quality: When the inlet turbidity is less than 20mg/L, the outlet turbidity is less than 5mg/L;

5. Backwash strength: Quartz sand 15~18L/S • m ²

Quartz sand filter - Applicable conditions

1. Quartz sand pressure filters are suitable for industrial, rural, urban, residential and other water supply facilities that require filtered water turbidity ≤ 5 milligrams/liter.

2. When suspended solids in water condense into flakes, the water can be filtered through this product to meet the effluent standard.

3. Selection of water inflow situation

(1) Single layer filter media is used for water with a turbidity of usually 50mg/L. Raw water that has not undergone coagulation and sedimentation should be added with coagulant before the filter.

(2) The double-layer filter material filter is suitable for settling water with inlet turbidity generally below 15mg/L and ****** not exceeding 20mg/L.

Quartz Sand Filter - Application Fields

1. Pre treatment of water quality in pure water, food and beverage water, mineral water, electronics, printing and dyeing, papermaking, and chemical industries.

2. Filtration of industrial wastewater after secondary treatment.

3. Deep filtration of reclaimed water reuse system and swimming pool circulating water treatment system.

4. Industrial wastewater treatment removes suspended solids.

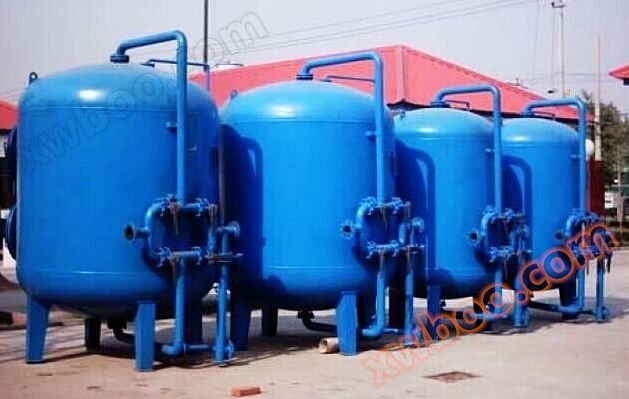

Real life photos of company cases
