Danfoss hybrid electric two-way steam regulating valve DN125+AME55
NegotiableUpdate on 05/14
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Danfoss hybrid electric two-way steam regulating valve DN125+AME55 $r $n Danfoss electric valve is used as a control or shut-off valve in boilers, district heating and cooling equipment, cooling towers, heat exchange units, and air conditioning units Suitable for closed or open piping systems (note to avoid cavitation) b, tmax200 ℃; $r$n$r$nc、 Two way valve normally open type (NO); $r$n$r$nd、 Medium: Steam; $r$n$r$ne、 Valve core: metal/metal seal; $r$n$r$nf、 Pressure balanced type.
Product Details

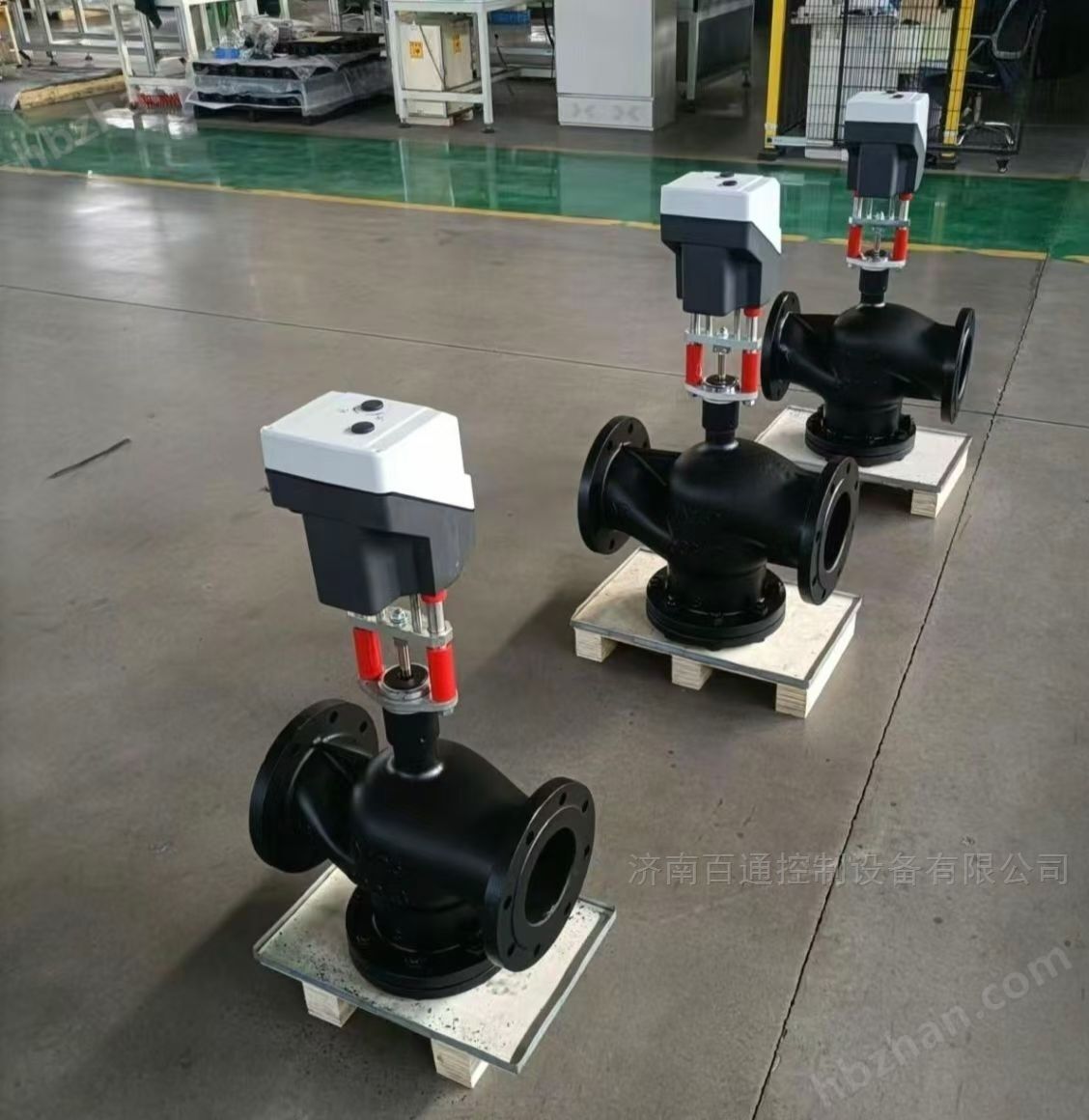

Danfoss hybrid electric two-way steam regulating valve DN125+AME55
Danfoss electric valves are used as control or shut-off valves in boilers, district heating and cooling equipment, cooling towers, heat exchange units, and air conditioning units Suitable for closed or open piping systems (be careful to avoid cavitation)
Detailed Explanation
Danfoss electric valveDetailed introduction:
Danfoss electric valve DN15-250;
b、 tmax200℃；
c、 Two way valve normally open type (NO);
d、 Medium: 30% ethylene glycol mixed water with circulating water;
e、 Valve core: VFG2 metal/metal seal; VFG21 soft seal;
f、 Pressure balanced type.
VFG25 two-way valve
a、 DN15～80；
b、 tmax200℃；
c、 Two way valve normally open type (NO);
d、 Medium: 30% ethylene glycol mixed water with circulating water;
e、 Valve core: metal/metal seal;
f、 Non pressure balanced type.
two-way valve
a、 DN15～250；
b、 tmax200℃；
c、 Two way valve normally open type (NO);
d、 Medium: Steam;
e、 Valve core: metal/metal seal;
f、 Pressure balanced type.
a、 DN15～125；
b、 tmax200℃；
c、 Two way valve normally open type (NO);
d、 Medium: 30% ethylene glycol mixed water with circulating water;
e、 Valve core: metal/metal seal;
f、 Pressure balanced type.
three-way valve
a、 DN15～125；
b、 tmax350℃；
c、 Medium: 30% ethylene glycol mixed water with circulating water;
d、 Confluent pressure balance valve;
e、 Split pressure balance valve;
f、 Confluence valve;
g、 Diversion valve;
h、 Valve core: metal/metal seal.
