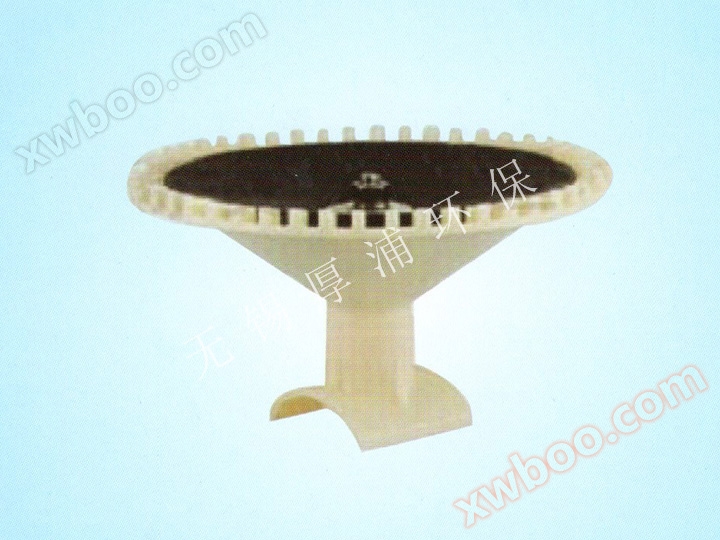

Disc agitator aerator
Product Details
Product Introduction
The disc agitator aerator is an anti clogging air agitator aerator at the bottom of the tank, with uniform airflow diffusion, strong air flushing force, and strong corrosion resistance. It effectively solves the problem of clogging in perforated aeration tube tank bottom agitation and has a long service life.

Main Technical Performance
The outer shape of the disc agitator aerator is designed as an umbrella shaped air splitter. ABS engineering plastic is used as the main body, and a double-layer rubber sheet check device is designed to ensure that sewage does not enter the air pipeline, which can avoid air pipeline blockage and eliminate the worries of maintenance and replacement during long-term operation.

Technical Parameter
name φ170×76H name φ170×76H
Chassis material ABS pipe fittings Service area (m)2 0.5-0.8
Disk material EPDM Applicable water depth (m) 6
Oxygen utilization rate (%) >30 Resistance loss (pa) <3000
Air flow rate (m)3/h) 1-2 Oxygen transfer efficiency (%) 15
