Explosion proof weather station system

1Explosion proof weather station systemProduct Introduction

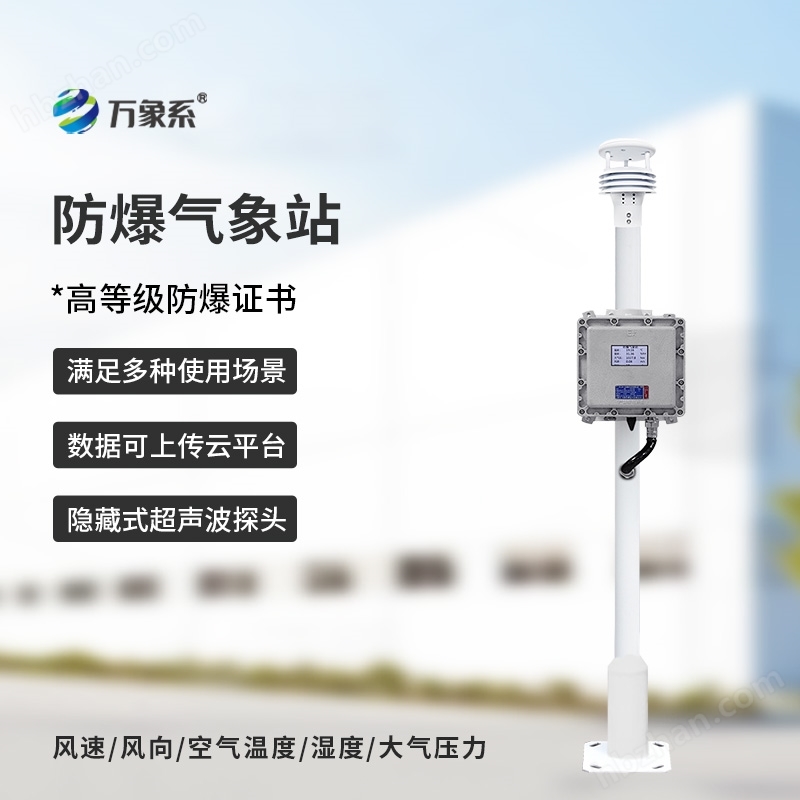

The FB01S explosion-proof meteorological station is an integrated meteorological station developed and produced by our company based on market demand for special places such as chemical plants and oil depots. It integrates data collection, storage, display, and communication, and is connected to the backend upper computer management software or central control room PLC and DCS through wired communication for data processing and analysis.

This explosion-proof weather station adopts the design concept of high protection levels such as anti-corrosion, explosion-proof, waterproof, shockproof, and dustproof, which can meet the usage needs of chemical plants, oil depots, tunnels, mines, and other scenarios.

IIExplosion proof weather station systemProduct Features

1. Hidden ultrasonic probe on the top cover to avoid interference from accumulated rain and snow, and to prevent natural wind obstruction

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase

3. Wind speed, wind direction, air temperature, humidity, and atmospheric pressure integrated sensor ☆

4. RS232/RS485 connected to PLC/DCS transmission

5. 4G collector uploads cloud service, comes with 3 years of data usage

4、 Functional Features

1. Integrated structural design, easy installation and disassembly;

2. The sensor housing is made of ASA material, which is corrosion-resistant and anti-oxidation;

3. Support customization, flexible configuration of monitoring elements according to user needs;

4 PC、 LCD screen with two display modes, wired transmission

5. Five proof design: waterproof, explosion-proof, dustproof, shockproof, and anti-corrosion;

6. Standard Modbus RTU protocol, supporting multiple backend protocol integration, providing convenience for customers;

7. Low power design, powered by AC220V;

5、 Introduction to upper computer software

1. PC standalone version data receiving, storage, viewing, and analysis software

2. Support serial port RS232, RS485 data reception, processing, and display

3. Support communication methods such as JSON strings and Modbus RTU

4. The storage time can be set by oneself, and the upper computer acquisition time can be set by oneself in modbus RTU acquisition mode

5. Support self-service addition, deletion, and modification of monitoring parameters such as protocols, names, icons, etc

6. Support data post-processing function

7. Support external running of JavaScript scripts

6、 Equipment installation

1. Confirm the on-site working conditions and set the installation plan by our company

2. Easy installation, no need for professional personnel to operate, remote guidance is sufficient for installation

3. The user does not need to provide their own parts, and our company will refine the configuration. The equipment will be installed and used immediately upon arrival
