GBOS-Q3 Integrated Oil Separation and Lifting Equipment

NegotiableUpdate on 03/02

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Basic functions: 1. Detachable assembly, fully enclosed 304 stainless steel box design, ensuring no odor leakage and long service life of the equipment; 2. The oil removal rate of particles with a diameter of over 60um is over 95%, and the overall oil removal rate is over 90%; 3. One

Product Details

GBOS-Q3 (2).jpg

GBOS-Q3 (3).jpg

GBOS-Q3 (4).jpg

GBOS-Q3 (6).jpg

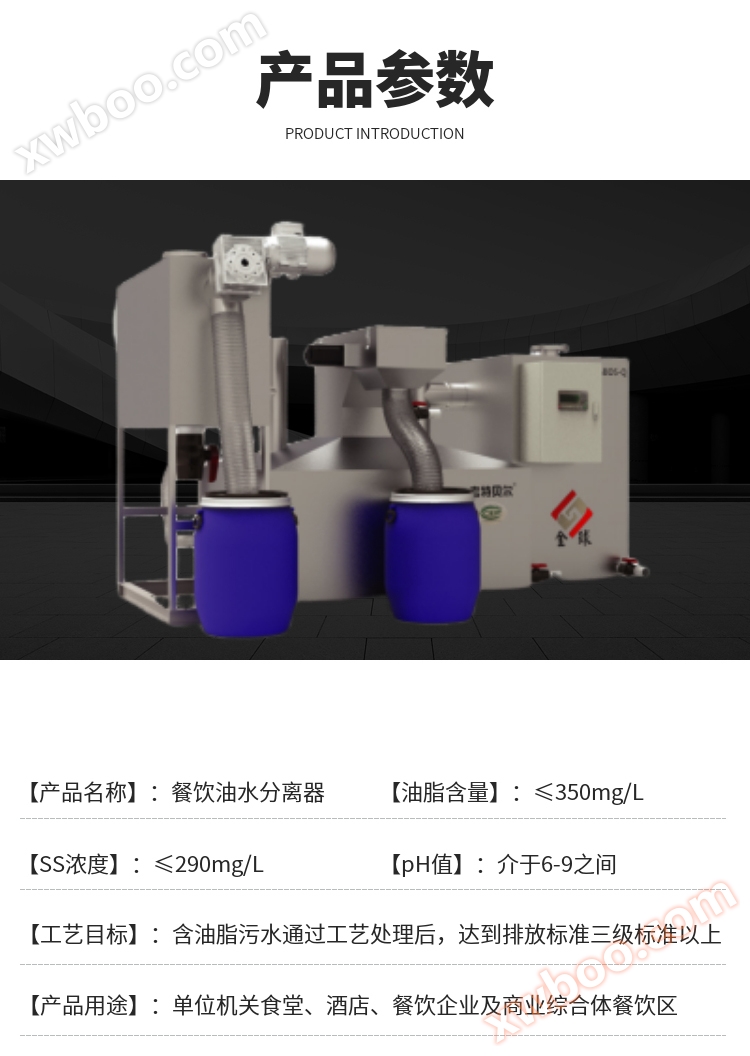

Basic functions:

1、Separable assembly，fully enclosed304Stainless steel box design ensures no odor leakage and long service life of the equipment；

2The60umThe oil removal rate of the above particle sizes reaches95%Above, overall oil removal rate90%above;

3、One time slag removal, multiple times sludge removal, to avoid sedimentation of sludge and other debris at the bottom of the tank, which may affect the oil removal effect;

4、Domestic brands are selected for the submersible sewage pump and electrical components of the mixing motor；

5、Reserved upgrade port for remote monitoring of device operation status.

Usage environment:

This series of equipment is widely used for oil separation discharge of various restaurant wastewater after pretreatment. The raw water quality is required to meet the following conditions:

The density of organic matter and oil contained in catering wastewater is0.9-0.95g/cm³;

Oil content ≤350mg/L; SSConcentration ≤290mg/L; O pHValue between6-9between.

Applicable places: hotels, supermarkets, government offices, schools, commercial complexes, catering industry.
