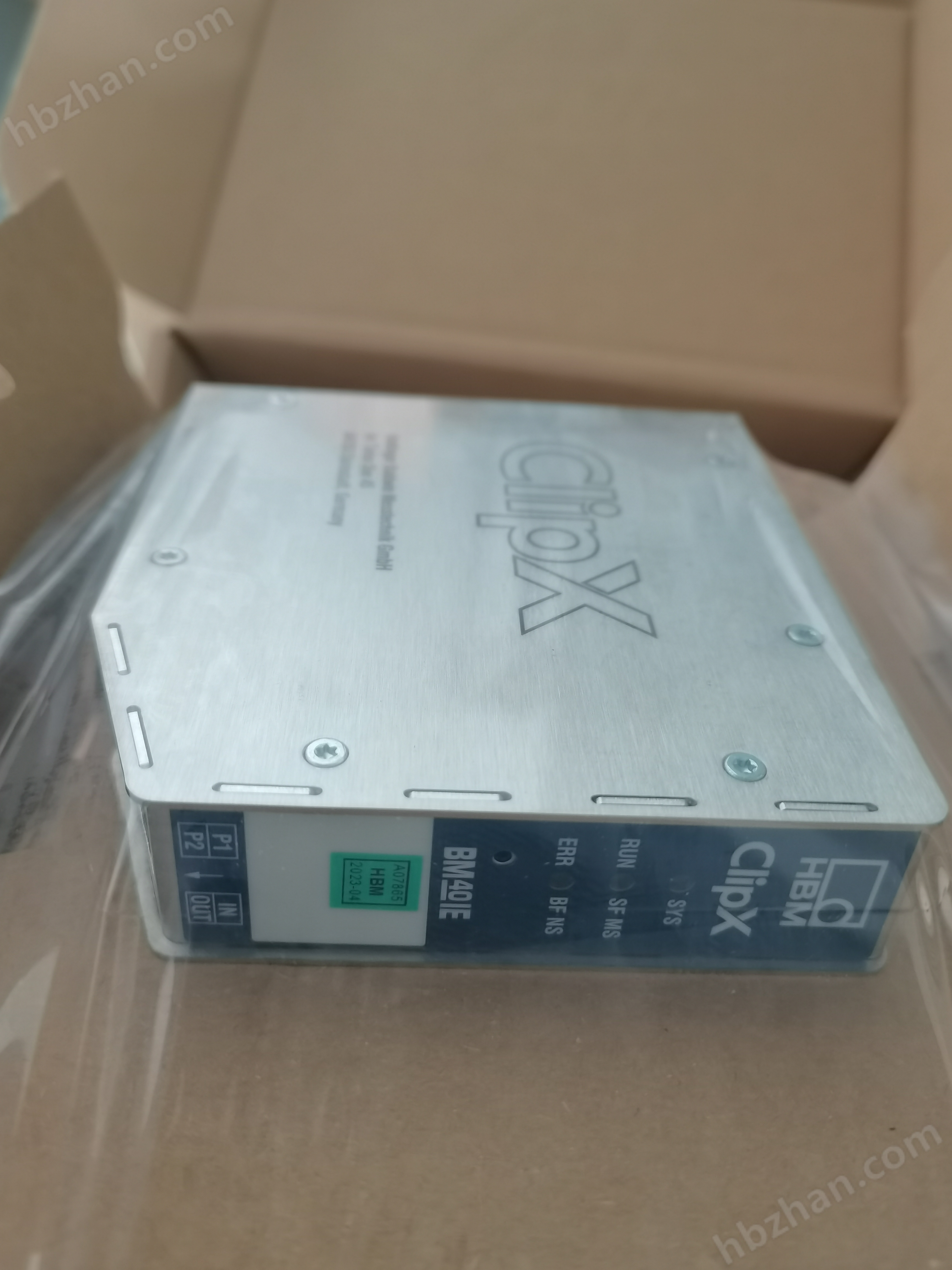

The HBM 1-BM40IE signal amplifier is a ClipX series signal amplifier produced by HBM in Germany. It features an easy to integrate signal conditioner with anti-interference capabilities, built-in calibration certificate, and a 0.01 precision level signal conditioner. ClipX sets a new standard for industrial process control.

Product Details

HBM 1-BM40IE signal amplifierProduct Introduction

The 1-BM40IE signal amplifier from HBM in Germany belongs to the ClipX series,Specially designed for industrial measurement tasks

Basic model‌

‌1-BM40No fieldbus interface, only supports analog output (4... 20 mA or ± 10 V) and digital

Industrial communication model‌

‌1-BM40IE: Supports PROFINET ®、 EtherNet/IP ™、 EtherCAT ® Or Modbus TCP protocol, which can switch interfaces through software
‌1-BM40PBIntegrated PROFIBUS ® Interface, suitable for traditional industrial bus systems

Model selection suggestion

‌Automated IntegrationPrioritize 1-BM40IE and adapt to modern industrial Ethernet protocols.
‌Cost sensitive scenariosThe 1-BM40 basic model can meet non networking requirements

HBM 1-BM40IE信号放大器

HBM 1-BM40IE signal amplifierProduct Features:

‌Multi protocol support‌
Integrate PROFINET ® Interface, supports EtherNet/IP ™、 EtherCAT ® Or Modbus TCP protocol, communication mode can be switched through software

High performance signal processing‌

Support TEDS channel parameterization, enabling efficient configuration of measurement channels.
High sampling rate (up to 19.2 kHz), suitable for multi-sensor weighing systems.
Provide freely configurable digital input/output and analog output (4... 20 mA or ± 10 V)

Industrial-grade design‌

The working voltage range is 10-30V DC, which complies with VDE/EN 61558 safety standards.
Suitable for wide temperature environments (-20 ° C to+55 ° C), with a protection level of IP20
