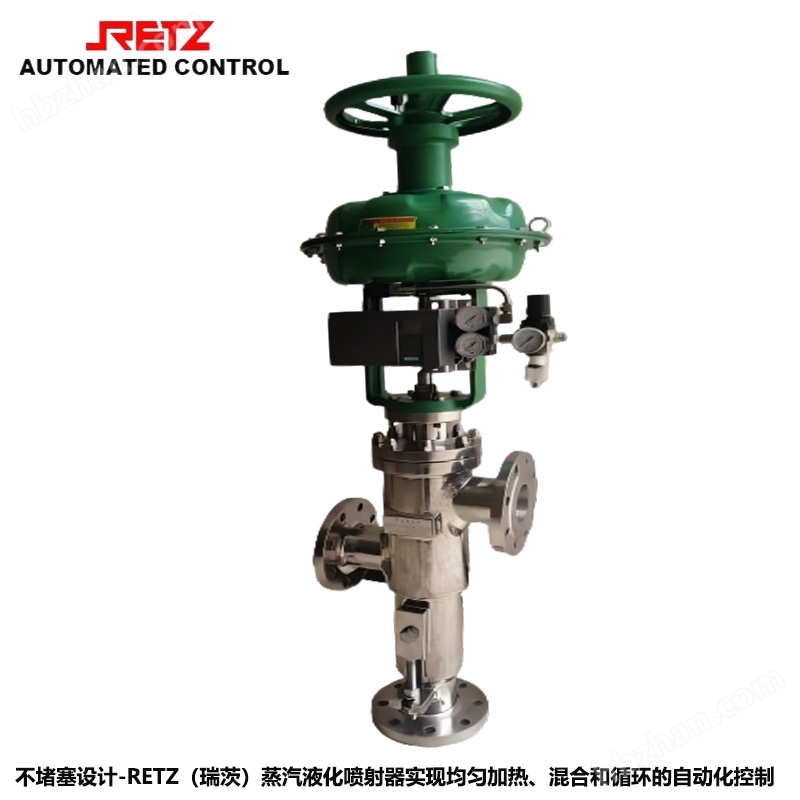

Imported intelligent steam jet liquefier

ImportIntelligent steam jet liquefierIntelligent design, providing customized body materials of various metals and alloys to ensure long-term normal operation of equipment in various working environments. Widely used in industrial automation control systems, material heating is accurate, fast, stable, and easy to operate.

Intelligent steam jet liquefier

a. Accurately controlling the temperature of jet cooking, the intelligent jet liquefier adopts a VAD structure design internally, combined with a control system, to accurately control the high-speed steam flow and form high-strength shear turbulence between the high-speed steam and the liquid material, so as to fully and uniformly mix and heat the steam and liquid, accurately control the temperature of the outflow mash, and ensure the smooth cooking of the milk powder.

b. Energy saving and effective, under the condition of steam pressure ≥ 0.5Mpa and low steam supply pressure not less than 0.5Mpa, the jet liquefaction system has good liquefaction and boiling effect on starch emulsion, 1.8-2.0mm large grain corn flour, dried potato and cassava mash, and requires low head of feed pump and low energy consumption.

ImportIntelligent steam jet liquefierMain advantages:

No blockages or inventory accumulation, rapid temperature rise, almost instant heat transfer, precise temperature control, process stability, and post heating settings.

Instantaneous heating when needed, this injector product is perfect for maintaining precise temperature control anywhere. We are popular in various industries, including pulp, chemicals, starch sugar, pharmaceuticals, glucose syrup, high malt syrup, alcohol, citric acid, amino acids, itaconic acid, monosodium glutamate, lactic acid, food and beverage, and other industries that require different liquid materials for steaming.

Compared with traditional steam injectors, the continuous elimination steam injector has the following advantages:

1. High energy utilization efficiency, because there is sufficient steam supply inside the continuous elimination spray head, and after spraying high-speed steam, the volume inside the spray head can be expanded.

2. It has a wide range of adaptability and flexibility, covering many work areas that traditional steam injectors find difficult to cover.

3. Intelligent operation control improves production efficiency and facilitates maintenance;

4. Stable work, no need for continuous manual intervention, reducing costs;

Technical Specifications:

Equipped with Fischer pneumatic actuators and Siemens locators

Valve body material: stainless steel 304316L

Specifications (hourly processing capacity): Dry matter meter: 0.2-100T/h, liquid meter: 0.5-300T/h
