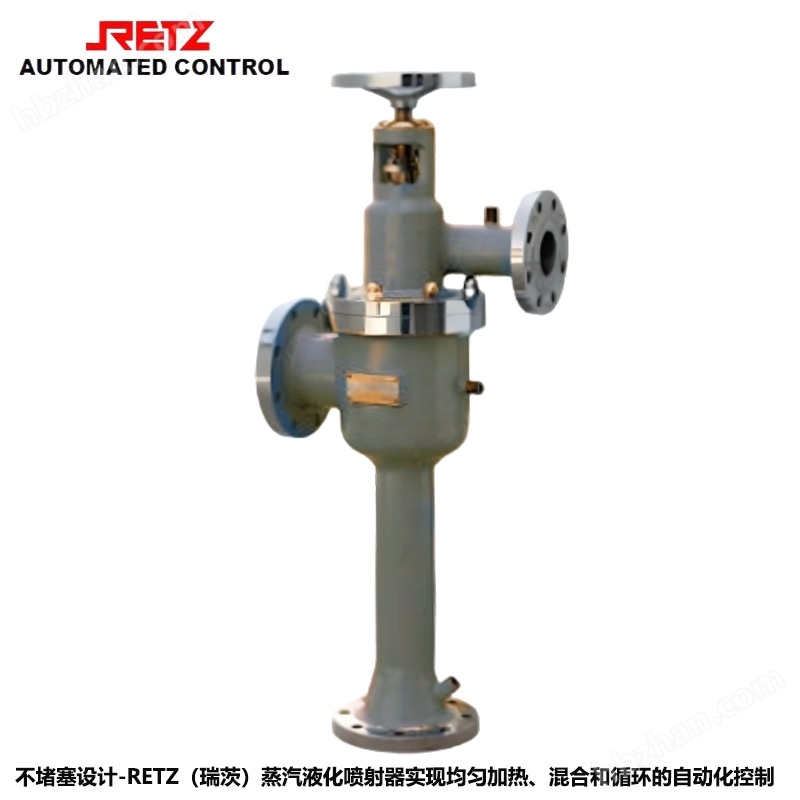

Imported low-pressure steam jet liquefier

Imported low-pressure steam jet liquefierThe application in the food and pharmaceutical processing industries is also significant. During the food processing, a large amount of liquid raw materials are required, such as syrup, juice, and concentrated liquids; In the pharmaceutical process, many drug ingredients need to be liquefied for mixing and formulation. Low pressure steam jet liquefier can effectively reduce the liquefaction temperature, maintain the active ingredients of drugs, avoid high temperature damage to drug components, and ensure the quality and efficacy of drugs; The low-pressure steam jet liquefier can efficiently liquefy these liquid raw materials, ensuring processing efficiency and quality. At the same time, the device can also fully preserve the characteristics of food liquids by adjusting temperature and pressure, avoiding the damage of high temperature evaporation to food quality.

working principle

The low-pressure steam jet liquefier mainly utilizes the high-speed airflow generated by low-pressure steam jet to allow gas or liquid to enter the mixing chamber of the liquefier through the jet nozzle. In the mixing chamber, steam collides with gas or liquid and quickly converts it into liquid. This process not only enables rapid liquefaction of gas, but also effectively reduces temperature, increases liquid density, thereby enhancing liquid fluidity and storage capacity.

Imported low-pressure steam jet liquefierfeature

A significant feature of low-pressure steam jet liquefier is its ability to operate at lower pressures and temperatures. Traditional liquefaction equipment usually requires higher temperatures and pressures, while low-pressure steam jet liquefiers can complete liquefaction under lower conditions through the action of steam jet, which not only saves energy but also reduces equipment wear and maintenance costs. Compared with other liquefaction equipment, low-pressure steam jet liquefiers have higher energy efficiency and more economical operating costs.

Continuous jet liquefaction without blockage

The low-pressure jet liquefier eliminates blockage from the structural principle, and there are whole grains of rice or starch with a concentration of ≥ in the slurry25BeIn this case, it is also impossible to cause blockage. From the usage of various manufacturers2Jet liquefiers within the year do not need to be disassembled and cleaned, eliminating the defects of previous domestic jet liquefiers due to nozzle aperture and other reasons, especially when using superheated steam for spraying, which often caused blockages and could not be continuously produced.

Suitable for low-pressure and superheated steam jet liquefaction

Adopting the method of using material with steam, the driving force is the material liquid, which is not only suitable for low-pressure steam, but also for superheated steam jet liquefaction105℃When spraying liquefaction, the steam pressure only needs to be0.1MpaIt can meet the liquefaction needs and achieve steam balance, even mixing of gas and liquid. Compared with traditional liquefaction methods, it can save steam15%The above.

matchingmanualFischer pneumatic actuator、Siemens locator

valvebodyMaterial: Stainless steel304,316L

Specifications(Hourly processing capacity)Dry matter meter:0.2～100T/hLiquid meter:0.5～300T/h
