Meteorological fiberglass louver box

Meteorological fiberglass louver boxSpecially tailored for high-precision meteorological observation, high-quality fiberglass materials are carefully selected and crafted through processes, possessing weather resistance and corrosion resistance, and capable of long-term stable operation in climate conditions. Its unique louver structure cleverly guides air circulation, ensuring that the temperature and humidity sensors inside the box accurately capture environmental changes, while effectively blocking rain, snow, and direct sunlight, reducing external interference. The equipment is easy to install, easy to maintain, and does not require frequent maintenance. It is widely used in various meteorological monitoring stations and scientific research fields, providing reliable support for meteorological data collection.

1、 Product Overview

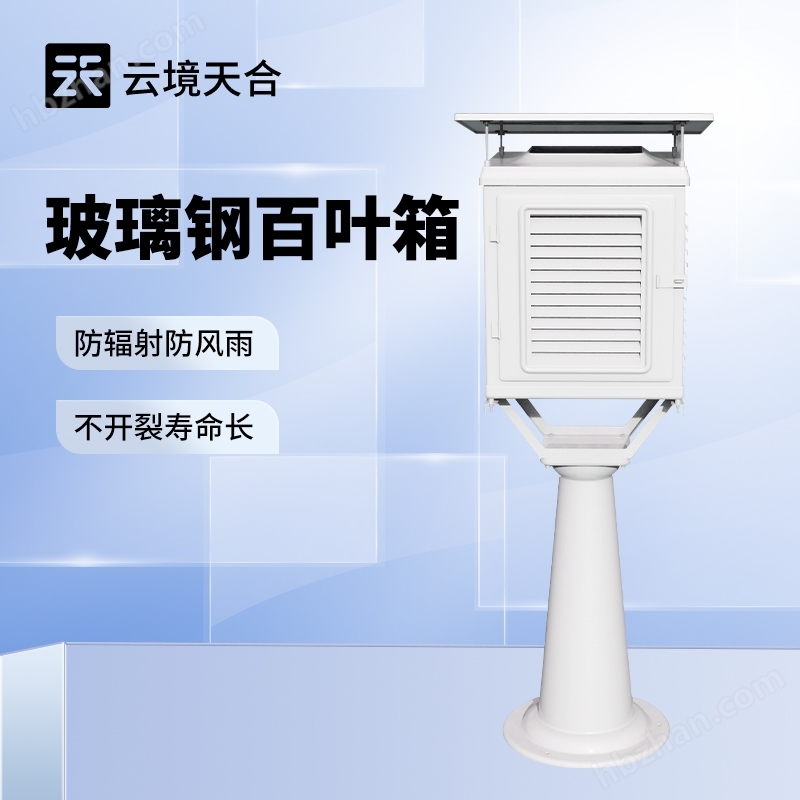

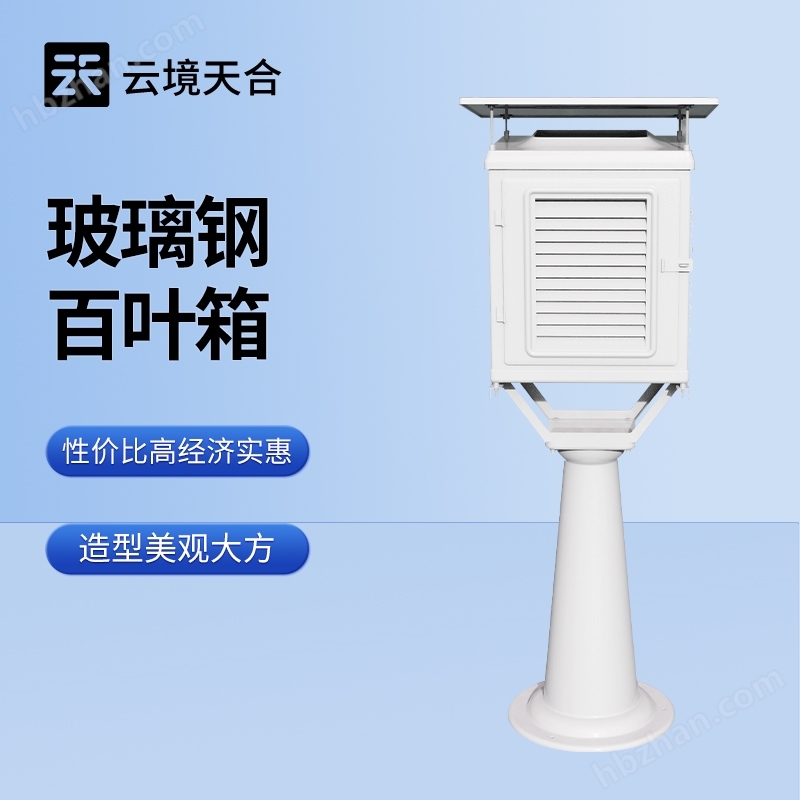

Meteorological fiberglass louver boxIt consists of three parts: the louver box, the connecting bracket, and the base, all made of high-quality fiberglass.

The design principles and comparative tests have shown that it not only overcomes the drawbacks of the original wooden louver box, such as easy decay, cracking, and short service life, but also significantly improves the comprehensive performance of ventilation, insulation, radiation protection, and wind and rain resistance.

2、 Product Features

1. The material is made of fiberglass with low thermal conductivity, small heat capacity, corrosion resistance, crack resistance, and strong anti radiation force. The fiberglass louver box does not rot in rainy, acid rain, and humid environments, and does not crack under dry and scorching sun, with a long service life.

2. The structure adopts an inverted "V" - shaped integral frame layered fastening structure, which is sturdy and will not loosen. It can ensure the normal exchange of gas inside and outside the box, and effectively prevent rain and snow from blowing into the box. The upper cover plate is replaced with an inverted "funnel-shaped" ventilation cover. In clear and windless conditions with rapid changes in the external environment, the gas inside and outside the box can quickly exchange, and the internal and external environments quickly converge, making the observation data more accurate and representative.

3. The fiberglass louver box has a beautiful and elegant appearance, with a snow-white and smooth surface that does not require painting or care. Its service life is over fifteen years. The performance price is relatively high and cost-effective.

3、 Product Usage

Used for routine observation of air temperature and humidity.

Due to its excellent insulation performance, electric suspension, ventilation, rain resistance, radiation resistance, and insect resistance, the fiberglass louver box can be used as a station building for hydrological and meteorological automatic observation stations.

4、 Main technical parameters

Shutter box:

Box volume: 520 (length) x 480 (width) x 610 (height) (mm)

Dimensions: 720 (length) x 780 (width) x 880 (height) (mm) Weight: 40kg

Connection bracket: Height: 220 (mm) Weight: 7kg

Base: Height: 1050 (mm) Weight: 10kg. Installation: The mounting holes on the disc bottom plate are 3- Φ 20, with a circumference diameter of Φ 410 and 120 ° divided equally

Overall height: 2150mm

(1) Specification parameters of the hundred leaf box: external dimensions: width 720 x depth 780 x height 880 (mm). The above-mentioned "door" shaped blades, ventilation cover, base, top cover and other components are all made of high-quality fiberglass material as a whole, with a honeycomb structure inside. The installation size is 4-M1O with four connecting rods.

(2) Top cover dimensions: length 780 x width 720 x thickness 22 (mm). The profile line is similar to a cycloid, and the distance between the ventilation opening and the top cover is 10mm. On the inner base of the box and the ventilation cover, brackets are installed alternately with wooden partitions for the installation and fixation of observation instruments inside the box. The base column is made of fiberglass material, with a beautiful and lightweight design. The connecting frame is made of angle steel and has a surface electroplating treatment. It is used to connect the box and column.

5、 Accessories

Comes standard with 3 expansion screws, 14X150.

Optional ground cage, with the following dimensions
