Spark full spectrum direct reading spectrometerOES8000sadoptCMOSDetector full spectrum testing technology,It can test all spectral lines within the wavelength range, and it is extremely convenient to configure and supplement testing substrates, channels, and analysis programs. The instrument is compact in size, convenient for maintenance and laboratory placement.OES8000sIt is a universal instrument for testing the elements of steel and non-ferrous metal materials, which can meet the following requirements:FeMatrixCuMatrixAlMatrixTiMatrixPbMatrix, Mg matrixCoMatrix and other matrix requirements are the preferred choices for metal element analysis.

Full spectrum analysis technology facilitates the configuration of more matrices and elements, making it easy to supplement configurations on-site for users

The instrument is compact in size and has low requirements for laboratory space

Long working hours, excellent stability and reliability

The sample testing speed is fast, and the single testing process is less than40second

The instrument is easy to use and maintain, with low professional requirements for personnel

Original installation analysis program, accurate test data, and complete range of applicable alloy grades

Standardized sample configuration allows for periodic calibration of instruments

No use of chemical reagents, safe and environmentally friendly testing process

Mg based and Co based metal element direct reading spectrometer technical advantage

Tianrui Direct Reading SpectrometerOES8000sWidely used in element analysis of steel and non-ferrous metal products, it can quickly, accurately, stably, and reliably test dozens of elements, meeting the inspection needs of industrial research and development, process control, feed inspection, and product sorting. It is an equipment for producing metal products.

Full spectrum detection and testing of various metals and elements

Based on CMOS detector full spectrum testing technology, the spectral lines of various elements in metals are tested, which facilitates the testing of multiple substrates and elements.

Configuring and supplementing testing substrates, channels, and analysis programs is extremely convenient, making it easy to supplement testing elements and analysis programs at the customer's location after delivery.

Top international suppliers provide core components

Spectral Dispersion Element - Grating from GermanyZeiss/FranceYYMade by the company to ensure excellent spectral resolution capability

Spectral detector——CMOSThe detector is manufactured by Hamamatsu, Japan, ensuring sensitive and low-noise spectral line detection

Light room constant temperature system

The constant temperature chamber of the light room is equipped with a feedback heating device and a temperature insulation layer, effectively ensuring constant temperature inside the light room.

This suppresses the optical path drift caused by slight changes in the size of mechanical components under temperature fluctuations. Except for special maintenance, regular maintenance generally does not require tracing.

Simultaneously operating the detector in a constant temperature environment helps to stabilize the photoelectric conversion performance.

Quickly and simultaneously analyze multiple elements in steel and non-ferrous metal materials

After placing the pre processed sample on the sample stage,OES8000sCan be at most40Present test results within seconds.

We can test the content of common elements in almost all steel and non-ferrous metal materials according to customer needs.

Professional testing plan

With the accumulation of long-term testing technology services, Tianrui Instrument provides mature testing solutions for steel and non-ferrous metal material analysis users.

The testing plan adopts an analysis program that classifies the content of material elements to meet various common testing needs of users.

The analysis program is calibrated by the original factory using international and national standard samples, and fitted and calibrated by professional instrument software.

Users only need to use a small number of standardized samples from the original factory configuration to complete daily maintenance, without the need to purchase a large number of standard samples for making analysis programs.

Analysis of High and Low Alloy Composition of Carbon Steel (Direct Reading Spectrometer) working conditions

Operating Temperature15-30℃

Relative humidity:≤70%

electricity Source:220±5V, single-phase50HzGrounding resistance<1Ω

The laboratory is free from vibration, dust, strong electromagnetic interference, strong airflow, and corrosive gases

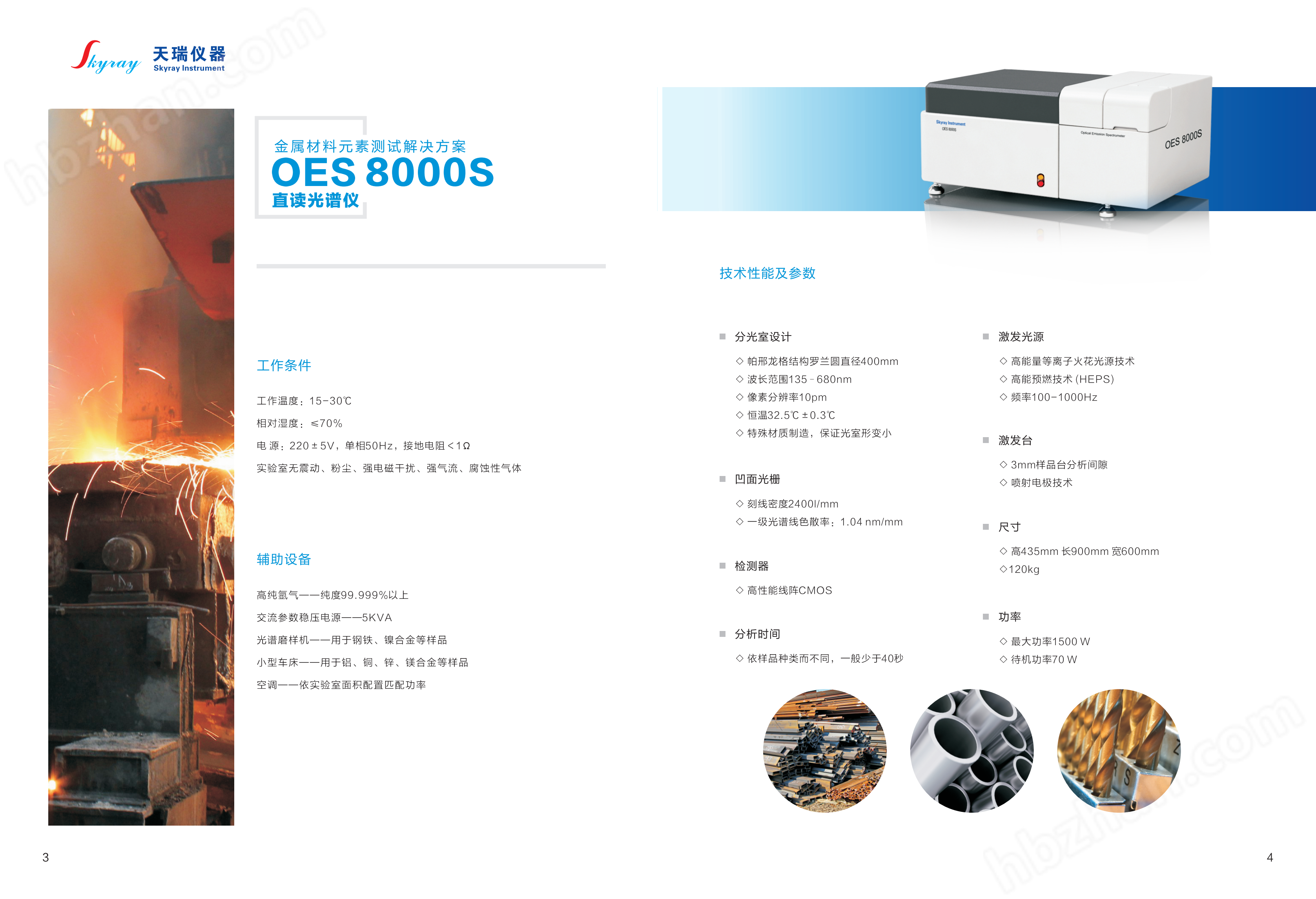

Technical performance and indicators

1. Spectral chamber design

Pasing-Dragon grid structure,Roland circle diameter400mm

Wavelength range: 140-680nm

Pixel resolution 10pm

constant temperature33℃±0.2℃

Special material casting ensures minimal deformation of the light chamber

Intermittent vacuum system ensures that the operating time of the vacuum pump is less than5%

2. Concave grating

Marking density3600l/mm

Spectral line dispersion rate:1.04 nm/mm

3. Detector

High performance linear array CMOS

4. Analysis time

Different depending on the variety, generally less than40second

5. Excitation light source

Full digital plasma spark light source technology

High energy pre combustion technology(HEPS)

frequency100-1000Hz

current1-80A

6. Excitation table

3mm sample stage analysis gap

Jet electrode technology

Specially designed gas path system ensures low argon gas consumption

7. Size and weight

Height 450mm, length 900mm, width 600mm

120 kg

8. Power

high power1500W

standby power70W
