Multi functional food safety detector

Product Introduction:

Multi functional food safety detectorEasy to operate, small in size, and integrated with multiple detection methods, it can quickly detect more than 200 items, including non food chemicals, abused food additives, pesticide residues, veterinary drug residues, trace elements, heavy metals, bacteria and microorganisms, diseased meat, nutritional fortifiers, antibiotic residues, hormone residues, fungal toxin residues, chemical residues, and other on-site qualitative and quantitative detection.

Multi functional food safety detectorMulti functional integration, widely used in market supervision bureaus, testing centers, health supervision departmentsNongye departments, colleges and various unit canteens, food and meat product deep processing enterprises, supermarket marketsSifa departments, catering institutions, breeding farms, slaughterhouses, inspection and quarantine departments and other units use it.

Product Features:

1. ★ Android 10 operating system, with WiFi, 4G, and Ethernet cable multiple upload functions, allowing for quick batch upload of data.

2. ★ 15.6-inch ultra large touch screen, clear and efficient UI interactive interface, enhancing operation and visual experience.

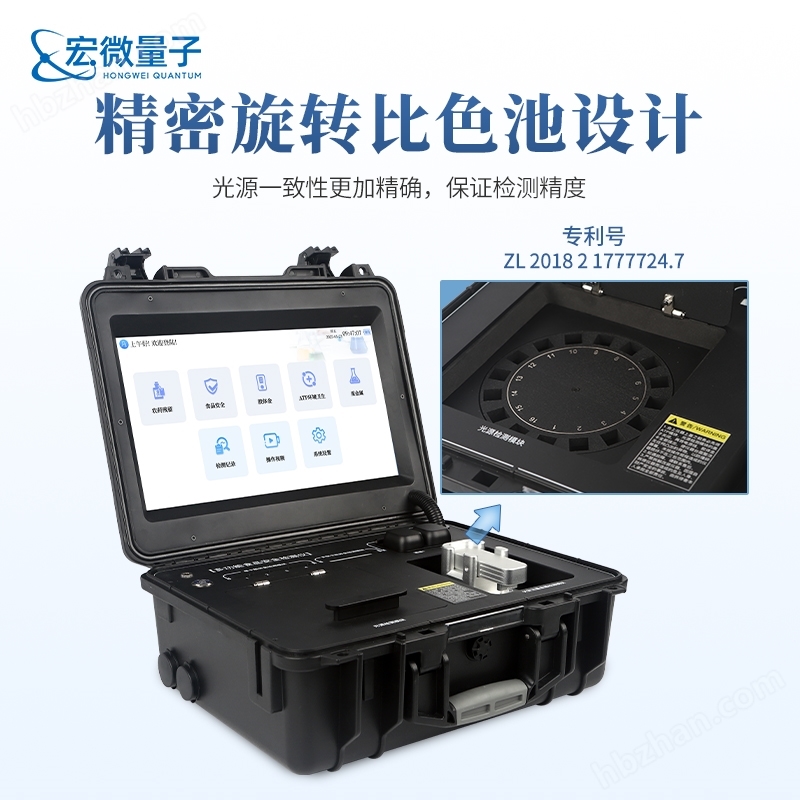

3. ★ Precise rotating colorimetric cell design（Zhuanli number: ZL 2018 2 1777724.7), the consistency of the light source is more accurate, ensuring detection accuracy.

4. ★ Spectral module, 16 rotating detection channels, can quickly detect 16 samples at once, greatly improving detection efficiency and reducing detection costs.

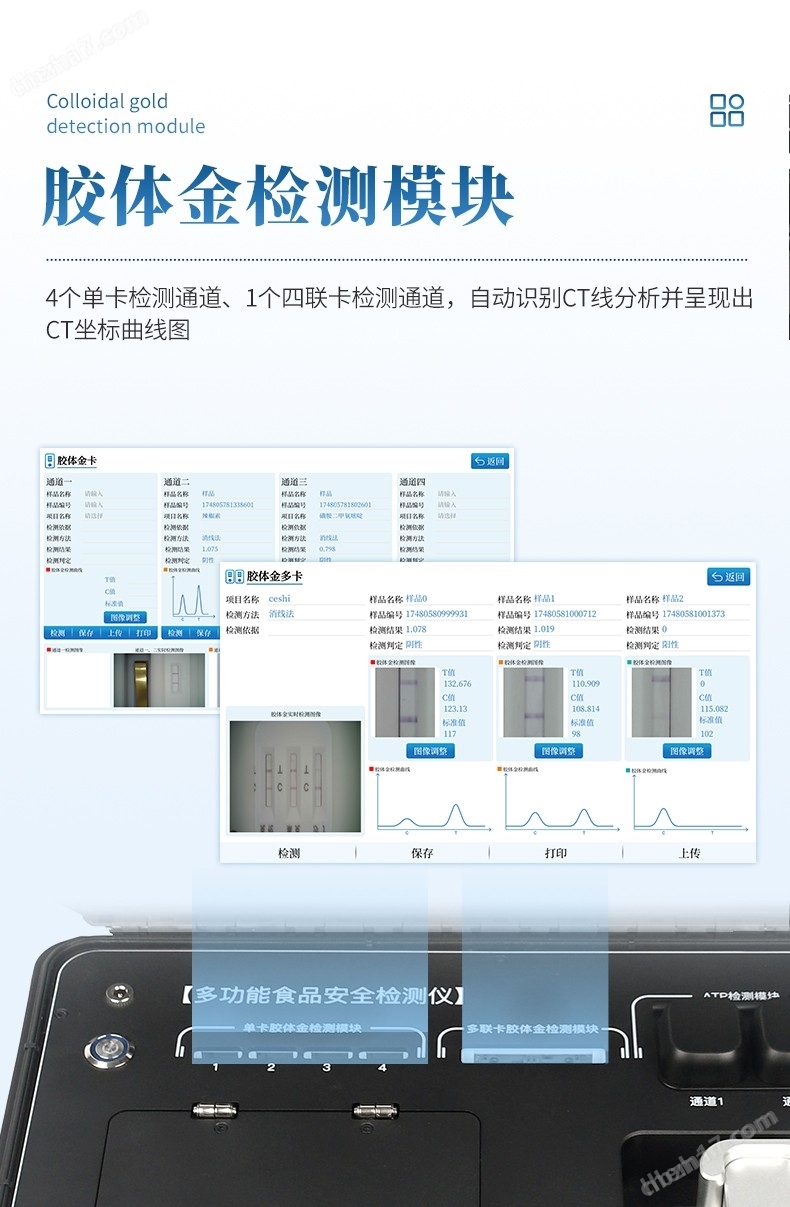

5. ★ Colloidal gold detection module, with 4 single card detection channels and 1 quadruple card detection channel, automatically recognizes CT line analysis and presents CT coordinate curve graph.

6. ★ Fluorescence detection module, two ATP detection channels, used for bacterial and microbial detection to determine surface cleanliness.

7. ★ Electrochemical detection module, anodic stripping voltammetry achieves trace metal detection through disposable three electrode plates, which is fast and convenient.

8. Six wavelength cold light sources at 420nm, 470nm, 520nm, 560nm, 620nm, and 700nm, all detection items can be detected simultaneously through multiple channels.

9. Equipped with a standard food safety supervision platform, the test results can be directly uploaded. Conduct regional food safety data statistics, long-term and short-term dynamic analysis, to achieve food safety problem estimation and early warning.

10. ★ Equipped with a built-in camera for taking photos, displaying real-time images of the gold label card, automatically analyzing and presenting CT coordinate curves, and automatically recognizing CT lines without the need for manual adjustment.

11. The instrument is equipped with built-in operation videos, which can be quickly learned by clicking on the video module. It is your laboratory guidance expert by your side.

12. Built in database with over 200 types of samples, allowing for independent addition and deletion.

13. Built in new national standards, on-site comparison with measured results, and continuous updating of standards.

14. The instrument has the functions of power on self-test and zero adjustment.

15. The instrument is equipped with a high-speed thermal printer, which can automatically print or batch print historical records after detection is completed.

16. ★ Supports USB copying at the same time, and the detection results are directly imported into the USB drive without driver insertion and removal.

17. High performance and low power consumption. Stable operation, convenient for flow detection.

18. One click switch between Chinese and English interface.

Technical Specifications:

Spectral detection module:

Absorption range: 0~3.5 (OD)

Sensitivity: 0.01 (OD)

Single well repeatability: ≤± 0.01 (OD)

Channel difference: ≤± 0.08 (OD)

Repeatability: CV ≤ 5%

Stability: CV ≤ 5%

★ Fluorescence detection module:

ATP detection accuracy: 10-15 to 10-18mol ATP

ATP detection range: 0-999999 RLU

ATP detection lower limit: 1RLU

ATP detection time: 10 seconds

ATP detection interference: ± 5% or ± 5RLU

★ Electrochemical detection module:

Food heavy metal sample detection range: 0.03-1.0mg/kg

Food heavy metal repeatability RSD: ≤ 5%

Food heavy metal resolution: 0.5ppb

Food heavy metal detection speed: 280 seconds/time

Basic Parameters:

1. ARM Cortex-A7 architecture processor

2. Working environment: Temperature: 10-30 ℃, humidity: ≤ 70%

3. Power supply: AC/DC dual-use, DC12V (can be connected to car power supply)

4. Battery capacity: 20AH

5. Working hours: ≥ 5h
6. Data storage: ≤ 500000 records

7. Rated power: 15W
8. Instrument size: 430 * 343 * 188mm

9. Net weight of the host: 16.6kg

10. Instrument packaging size: 510 * 390 * 375mm Accessories packaging size: 460 * 265 * 420mm

11. Packaging weight: 21kg
