Multi parameter ultrasonic meteorological station

1Multi parameter ultrasonic meteorological stationProduct Introduction

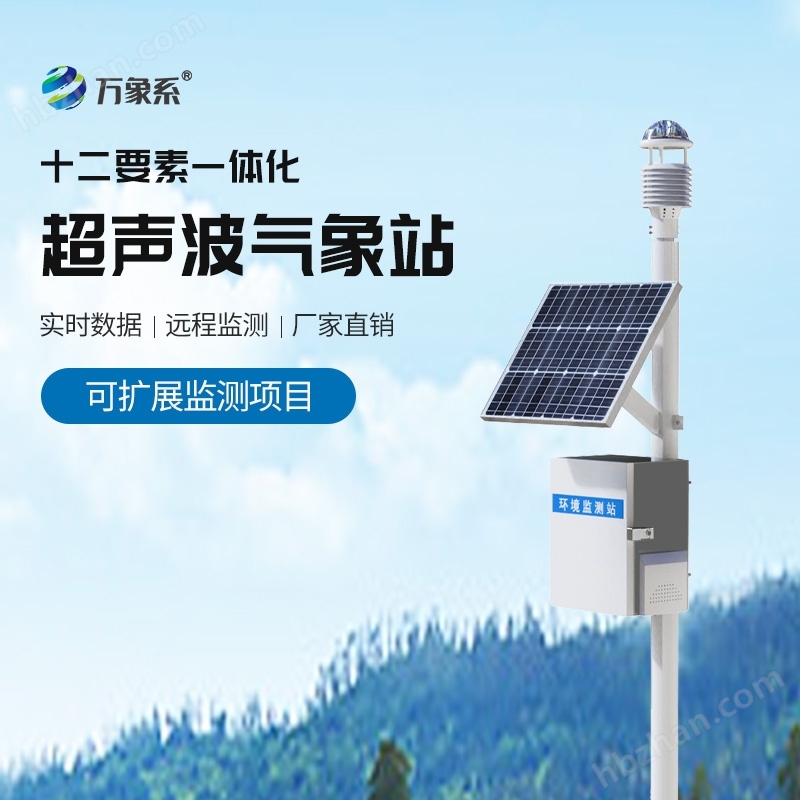

CQX12 Ultrasonic Meteorological Station is a highly integrated, low-power, quickly installable, and convenient high-precision automatic meteorological observation equipment for field monitoring and use.

This device is debugging free and can be quickly deployed. It is widely used in fields such as meteorology, agriculture, forestry, environmental protection, oceanography, airports, ports, scientific research, and campus education.

Compared with traditional ultrasonic weather stations, our products overcome the need for high-precision timers and avoid measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

This device innovatively adopts a twelve element integrated sensor, which can detect wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, etc pm2.5、pm10、CO、NO2、SO2、O3、 Real time observation of meteorological elements can achieve 24-hour continuous online monitoring of outdoor meteorological parameters,

Output twelve parameters to the user at once through a digital communication interface.

IIMulti parameter ultrasonic meteorological stationProduct Features

1. Hidden ultrasonic probe on the top cover to avoid interference from accumulated rain and snow, and to prevent natural wind from blocking it

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase

3. Wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, pm2.5, pm10, CO, NO2, SO2, O3 twelve element integrated sensor ☆

4. Standard configuration of GPRS; Optional RJ45, Ethernet, 4-20mA, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB and other transmission methods

5. Two meter carbon steel bracket, the top does not require a flange and can be directly fitted with sensors

6. The sensor housing is made of imported ASA material, which effectively resists salt spray and other environments, with a protection level of IP65 or above

3、 Technical parameters

1. Wind speed: Measurement principle ultrasonic, 0-60m/s (± 0.1m/s+0.01V) resolution 0.01m/s;

2. Wind direction: Measurement principle ultrasonic, 0-360 ° (± 2 °); Resolution: 1 °;

3. Air temperature: Measurement principle: diode junction voltage method, -40-80 ℃ (± 0.3 ℃ (25 ℃)), resolution 0.01 ℃;

4. Air humidity: Measurement principle capacitive, 0-100% RH (± 3% RH (20%~80%)), resolution: 0.01% RH;

5. Atmospheric pressure: Measurement principle pressure resistance type, 300-1100Hpa (± 0.25%), resolution 0.1hpa;

6. Optical rainfall measurement principle: photoelectric type, 0-4mm/min (≤± 4%), resolution 0.01mm;

7. PM2.5: Measurement principle of light scattering, 0-1000ug/m3 (± 10% (<500 micrograms)), resolution of 1ug/m ³;

8. PM10: Measurement principle of light scattering, 0-1000ug/m3 (± 10% (<500 micrograms)), resolution of 1ug/m ³;

9. Carbon monoxide: Measurement principle electrochemical method, 0-1000PPM (± 2PPM), resolution 1PPM;

10. Nitrogen dioxide: Measurement principle electrochemical method, 0-20PPM (± 1PPM), resolution 0.1PPM;

11. Sulfur dioxide: Measurement principle electrochemical method, 0-20PPM (± 1PPM), resolution 0.1PPM;

12. Ozone: Measurement principle electrochemical method, 0-20PPM (± 1PPM), resolution 0.1PPM;

13. Collector power interface: GX-12-4P, input voltage 8-16V, with RS485 output JSON data format;

14. Sensor Modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V

15. Powered by solar energy and equipped with lead-acid batteries, optional 30W 20AH/50W 40AH/100W 100AH. Charging controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%

16. Data upload interval: adjustable from 1 minute to 1000 minutes

17. Android 7-inch touchscreen, screen resolution: 1024 * 600 RGB LCD (optional)

18 manufacturing enterprises have ISO quality management system, environmental management system, and occupational health management system certifications

19. The production enterprise has a computer software registration certificate

20. The production enterprise is a 3A level credit enterprise

4、 Introduction to upper computer software

1. PC standalone version data receiving, storage, viewing, and analysis software

2. Support serial data reception, processing, and display

3. Supports communication methods such as JSON strings and Modbus 485

4. The storage time can be set by oneself, and the collection time can be set by oneself in modbus485 collection mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc

6. Support data post-processing function

7. Support external running of JavaScript scripts

5、 Introduction to Android APP

1. Android standalone version data receiving, storage, viewing, and analysis software

2. Supports Bluetooth data reception

3. After the phone goes into sleep mode, the software backend receives and processes it

4. JSON data automatically adds devices, Modbus devices support scanning to add devices

5. Support viewing, analyzing, and exporting historical data tables, as well as displaying curves and viewing odd numbered sites

6. Support data post-processing function

7. Support external running of JavaScript scripts

6、 Introduction to Cloud Platform

1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation

2. Support multi account and multi device login

3. Support real-time data display and historical data display dashboard

4. Cloud servers, cloud data storage, stable and reliable, easy to expand, load balancing

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in tabular format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc

10. Support data post-processing function

11. Support external running of JavaScript scripts
