FT-G1 Shandongfengtu IoT Technology, a manufacturer of optical rainfall sensors, is a high-tech enterprise specializing in meteorological monitoring equipment and a supplier of high-quality optical rainfall sensors. The company was established in 2017 and was awarded the title of Gazelle Enterprise in Shandong Province in 2024. The FT-G1 optical rain sensor has no mechanical components and is maintenance free. It uses three channel narrowband infrared detection technology with measurement accuracy ≤ #177; 4%, suitable for unmanned outdoor scenarios. This type of sensor is often integrated into multi-element meteorological instruments, suitable for multiple fields such as meteorology, agriculture, and municipal engineering.

Product Details

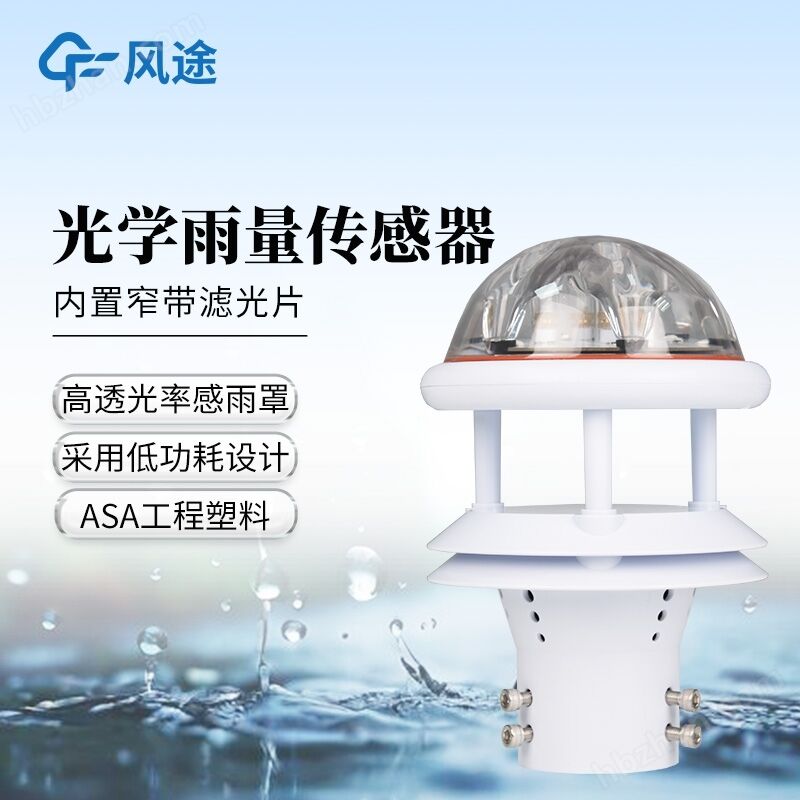

　　Optical rain sensor manufacturerFT-G1 Shandongfengtu IoT Technology is a high-tech enterprise specializing in meteorological monitoring equipment and a supplier of high-quality optical rainfall sensors. The company was established in 2017. The FT-G1 optical rain sensor has no mechanical components and is maintenance free. It uses three channel narrowband infrared detection technology with a measurement accuracy of ≤± 4%, and is suitable for unmanned outdoor scenarios. This type of sensor is often integrated into multi-element meteorological instruments, suitable for multiple fields such as meteorology, agriculture, and municipal engineering.

1Optical rain sensor manufacturerProduct Introduction

The FT-G1 optical rainfall sensor adopts a three channel narrowband infrared detector and a pure sine AC signal source, which has the advantages of high accuracy, strong resistance to environmental light, maintenance free, and compatibility with other optical sensors (light, ultraviolet radiation, total radiation). It can be widely used in industries such as meteorology, agriculture, municipal engineering, and transportation. This sensor adopts a low-power design and can be applied to unmanned observation stations in the field.

2、 Product Features

This optical rainfall sensor adopts a pure sine infrared light source, built-in narrowband filter, and a rain sensing surface of 78 square centimeters, which can measure rainfall with high accuracy and is not affected by high-intensity sunlight and other light. The high transmittance rain cover does not affect direct sunlight and is compatible with other built-in optical sensors such as lighting, total radiation, UV sensors, etc.

3、 Technical parameters

1. Power supply voltage: DC12V

2. Sensor power consumption: 0.12W

3. Current: 10ma DC12V

4. Rainfall resolution: 0.01mm

5. Rain intensity range: 0-4mm/min

6. Measurement accuracy: ≤± 4%

7. Working environment: -40~85 ℃, 0~100% RH

4、 Precautions

1. There is no obstruction within a 1-meter radius around the sensor to avoid the impact of water droplets splashing

2. The installation position of the sensor should avoid being obstructed by trees, and the tilt direction should also avoid being obstructed by tree shade

To ensure measurement accuracy, the sensor should be installed horizontally
