Portable small weather station manufacturer

The manufacturer of portable small weather stations has achieved a balance between portability and observation performance through scientific design optimization, without any significant performance compromise. In terms of portability, the body is made of high-strength and lightweight materials to reduce the weight of the equipment. At the same time, it adopts a foldable or detachable structure, which greatly reduces the volume after storage and is easy to carry; Simplify the installation process and use convenient connection methods such as snap on and magnetic suction, allowing for quick assembly without the need for professional tools.

1、 Product Introduction

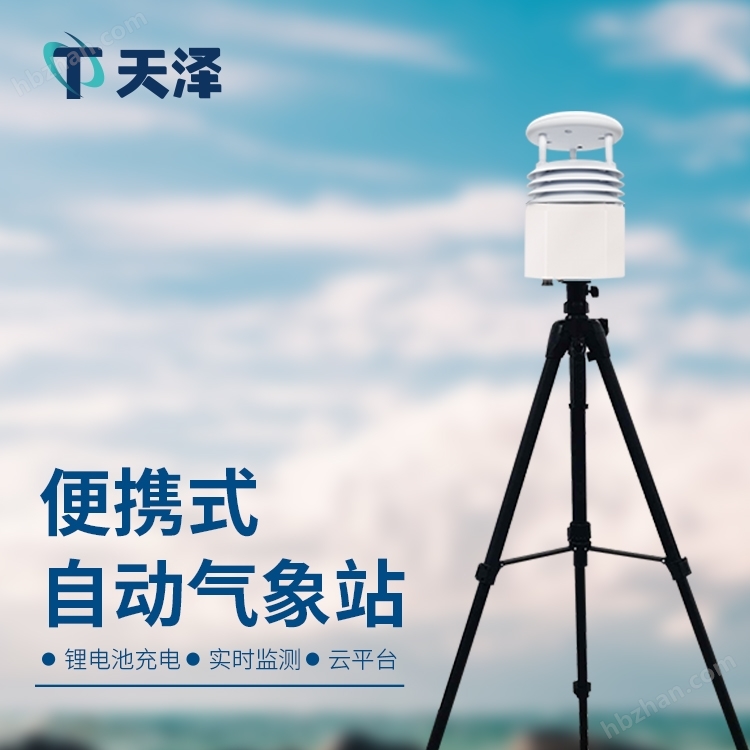

BQX7Portable small weather station manufacturerIt is a highly integrated, low-power, quick to install, and easy to use high-precision automatic meteorological observation equipment for field monitoring.

This device supports wired, Bluetooth, GPRS and other transmission methods, requires no debugging, can be quickly deployed, and is suitable for obtaining various emergency meteorological short-term observations, mobile meteorological monitoring and other meteorological data. Widely used in fields such as meteorology, agriculture and forestry, environmental protection, oceanography, airports, ports, scientific research, campus education, etc

The device adopts a seven element integrated sensor, which can observe meteorological elements such as wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, and optical rainfall in real time. The sensor housing is made of imported ABS material, which is more effective in resisting salt spray and other environments, and the protection level reaches IP65 or above.

2、 Product Features

1. Hidden ultrasonic probe on the top cover to avoid interference from accumulated rain and snow, and to prevent natural wind from blocking it

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase

3. Integrated sensor with seven elements including wind speed, wind direction, air temperature, humidity, atmospheric pressure, lighting, and optical rainfall ☆

4. Standard configuration includes GPRS, Bluetooth, and 485 to USB transmission methods

5. Aluminum alloy bracket, extendable

6. Shock absorption and protective suitcase, convenient to carry

3、 Technical parameters

1. Wind speed: measurement principle ultrasonic, range: 0-60m/s, accuracy: 0.1m/s+0.01v, resolution: 0.1m/s;

2. Wind direction: measurement principle ultrasonic, range: 0-360 °, accuracy: ± 2 °, resolution: 1 °;

3. Air temperature: measurement principle diode junction voltage method, range: -40-80 ℃, accuracy: ± 0.3 ℃ (25 ℃), resolution: 0.01 ℃;

4. Air humidity: Measurement principle capacitive, range: 0-100% RH, accuracy: ± 3% RH (20%~80%), resolution: 0.01% RH;

5. Atmospheric pressure: measurement principle piezoresistive, range: 300-1100hPa, accuracy: ± 0.25%, resolution: 0.1hPa;

6. Data storage: no less than 500000 records;

7. Power consumption: 1.75W

8. Lithium battery: capacity 12000mAh, battery life ≥ 50H, charge display function

9. Total weight of equipment: ≤ 5kg;

10. Deployment time: 1 person, no more than 2 minutes to complete the deployment;

4、 Introduction to upper computer software

1. PC standalone version data receiving, storage, viewing, and analysis software

2. Support serial data reception, processing, and display

3. Support communication methods such as JSON strings and Modbus 485

4. The storage time can be set by oneself, and the collection time can be set by oneself in modbus485 collection mode

5. Support self-service addition, deletion, and modification of monitoring parameters such as protocols, names, icons, etc

6. Support data post-processing function

7. Support external running of JavaScript scripts

5、 Introduction to Android APP

1. Android standalone version data receiving, storage, viewing, and analysis software

2. Support Bluetooth data reception

3. After the mobile phone goes into sleep mode, the software backend receives and processes it

4. JSON data automatically adds devices, Modbus devices support scanning to add devices

5. Support viewing, analyzing, and exporting tables of historical data, as well as displaying curves and viewing odd numbered sites.

6. Support data post-processing function

7. Support external running of JavaScript scripts

6、 Introduction to Cloud Platform

1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation.

2. Support multi account and multi device login

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to scale, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in tabular format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc.

10. Support data post-processing function

11. Support external running of JavaScript scripts
