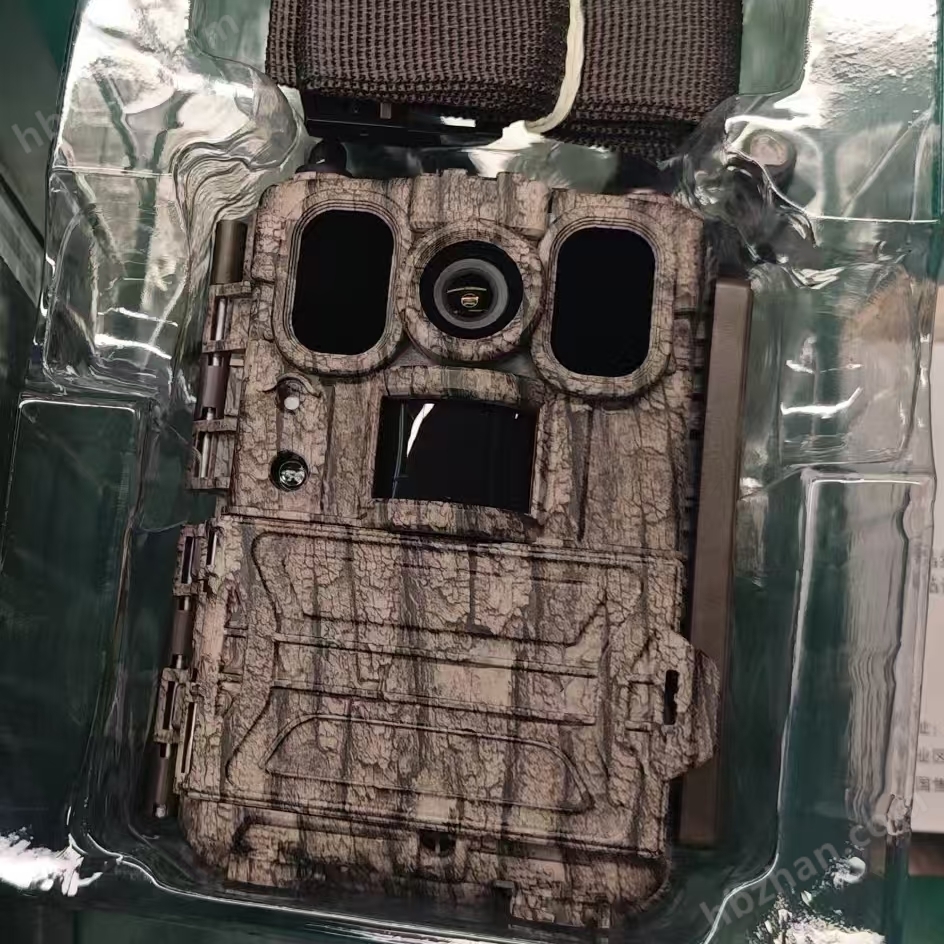

5G network transmitter infrared camera 4K FCCL-M601

5G network transmitter infrared camera 4K FCCL-M601

1) ▲ Video resolution: 4K (3840 * 2160)/30 frames, 3K (2560 * 1920)/30 frames, 1080P (1920 * 1080)/30 frames, 1080P (1920 * 1080)/60 frames, 720P (1280 * 720)/30 frames, audio video, photo resolution: 8MP/16MP/24MP/32MP

2) ▲ Starlight level image sensor with 800W pixels, 1.8-inch,

3) Support 4G full network function, WIFI function, customizable 5G full network, 700M N28 frequency

4) Support cloud based image storage and remote control to modify parameters

5) Remote viewing of device working status information, including battery level, SD card capacity, signal strength, data card traffic GPS、 Server space capacity and other information can be integrated with third-party information systems

6) ▲ 4G upload speed of 50Mbps, supports uploading high-definition original images and videos, compressed videos, thumbnail options, and supports breakpoint resubmission

7) ▲ Support setting camera parameters and previewing camera images through a mobile app

8) High gain full frequency dual antenna design

9) ▲ Support Beidou dual frequency automatic positioning

10) ▲ 2.3-inch high-definition front omnidirectional screen, easy to view the monitoring area during installation. After replacing the battery, the camera case can no longer be opened, which can prevent the case from accidentally falling into rainwater when opened on rainy days

11) ▲ The camera starts recording and taking photos simultaneously, with a startup time of 0.2 seconds, solving the problem of no animals in the recording

12) Simultaneously taking photos while recording with the camera saves time and reduces the duration of each camera startup, thereby saving power consumption

13) Built in intelligent image algorithm, adaptive to various ambient lighting conditions, automatically adjusts exposure levels for long and short distances

14) Lens aperture F=1.6, FOV=100 degrees, wide spectral compatibility, no zoom for high and low temperatures

15) Integrated high stability IR-CUT day night switch, improving color and black and white image quality

16) ▲ Supports overall installation and battery replacement methods similar to magazine replacement, unaffected by installation height and angle. Battery replacement does not require lying on the ground or loosening straps, nor does it require disassembling and assembling one battery at a time outdoors. Battery replacement is convenient and fast

17) ▲ Two level switch design, automatically enters monitoring mode when there is no operation after turning on, to avoid forgetting to manually enter monitoring mode when in the wild and causing the camera to not enter monitoring mode

18) Adopting multi zone large sensing surface, high sensitivity, strong anti-interference PIR, multi-stage signal amplification and filtering design, effectively avoiding false triggering, with a sensing distance of up to 25 meters

19) PIR sensitivity adjustable: high, average, low

20) ▲ The camera hardware comes with two wavelengths of light: 940nm infrared fill light and 650nm white fill light. The fill light type can be selected through software. When selecting the 940nm fill light, black and white images can be captured at night, and when selecting the 650nm fill light, color images can be captured at night. The fill light distance can reach 25 meters

21) ▲ Ultra low power design scheme, 100ua ultra-low standby current, daytime working current of the whole machine is less than 180ma, standby time is greater than 6 months

22) Trigger interval from 0 seconds to 60 minutes is optional

23) Support four high-precision timed time periods, with a timed shooting interval of up to 24 hours

24) Support working modes of photography, video recording, and photography+video recording

25) Supports 1-10 continuous shooting options

26) Supports optional recording duration of 5-60 seconds

27) ▲ Strong resistance to thermal shock, stability, IP68 waterproof and dustproof design

28) Power supply mode: 8 AA batteries of size 5, 16 AA batteries of size 5, 15000mah@3.7V Three element lithium rechargeable battery, 30000mah@3.7V Ternary lithium rechargeable battery, 6-22V external DC power supply, supports direct solar charging of the camera's internal rechargeable battery

29) ▲ Built in low-temperature resistant button battery ensures good stability during power outages or low temperatures

30) ▲ Supports 512GB SD memory card, compatible with various brands

31) Supports 1-8G memory options, with 2G memory as standard

32) High quality recording design, -38dB sensitivity MIC

33) It can display rich photo information, including shooting date, time, temperature, moon phase, equipment name, latitude and longitude, etc

34) Weight: 490g (main unit, without battery)

35) Working temperature: -40 to+80 degrees Celsius, working humidity: 5% -98%
