AB agent chlorine dioxide generator

NegotiableUpdate on 02/23

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Summary: Used for disinfection of daily life, drinking, and tap water in various occasions;

Product Details

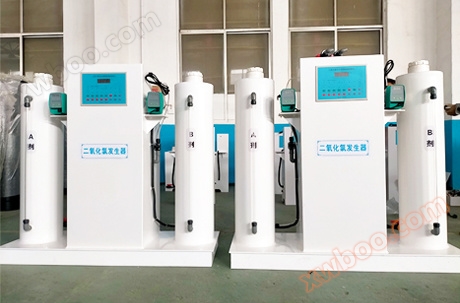

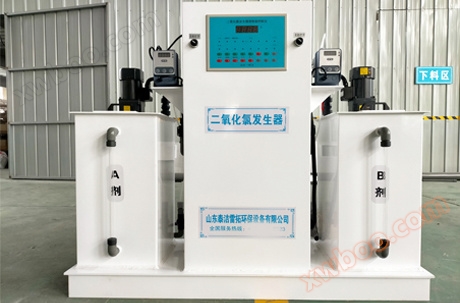

Naclo3+2Hcl=Clo2+1/2Cl2+NaCl+H2O belongs to the following series: chemical method, negative pressure product composition: feeding system, reaction system, temperature control system, dispensing system, safety system.

1. The control system adopts single-chip technology intelligent controller, LED digital display, and touch sensitive operation panel.
2. The feeding system adopts a well-known brand metering pump, with a constant back pressure valve and accurate measurement.
3. The heating unit adopts automatic constant temperature closed-loop control, which has protection functions such as heating water jacket water shortage, temperature sensor open circuit, short circuit protection, over temperature alarm and automatic stop of heating. The operation protection unit has the function of automatic shutdown protection for power water under pressure and material shortage (optional). The communication unit is equipped with a MODBUS485 communication interface. It has four passive contact outputs, which indicate the four working states of the controller, including "local/remote status, manual/automatic status, operating status, and overall alarm", and can achieve remote monitoring of the controller's working status from the central control room.

♦ intelligent control

Equipment specific automatic control intelligent panel, one click setting, automated operation.

♦ Metering pump

Using well-known brand metering pumps and electromagnetic diaphragm pumps, with precise metering and stable performance.

♦ self-protection

The automatic control system has automatic alarm and protection functions for undervoltage, material shortage, overtemperature, water shortage, etc.

♦ Stable operation

Mature technology and stable operation can produce stable chlorine dioxide solution.

1. There are high requirements for raw material conversion rate and chlorine dioxide content.
2. There are high requirements for the appearance and cost-effectiveness of the equipment.
3. Need to achieve natural linkage with the lifting pump (pre-processing unit). Scope of application: Disinfection of drinking water, medical wastewater, domestic sewage, and slaughter wastewater.

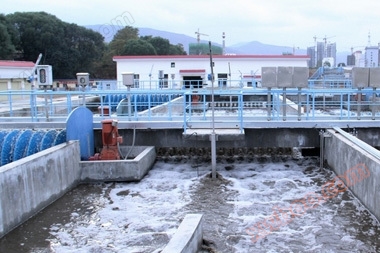

1. Disinfection of daily life, drinking, and tap water in various occasions;
2. Sterilization and disinfection treatment of hospital wastewater;
3. Sterilization and disinfection of swimming pools, industrial circulating water, and bathhouse water;

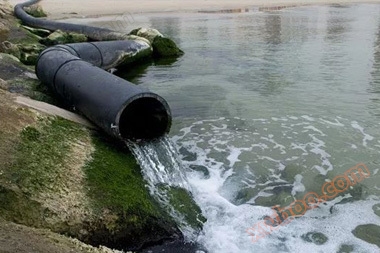

4. Sterilization and deodorization in wastewater reuse;
5. Disinfection and treatment of wastewater from dairy factories and slaughterhouses;

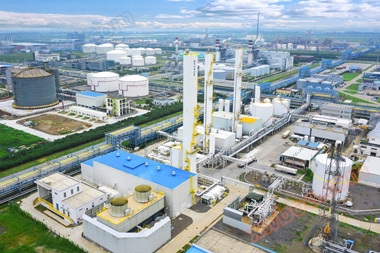

6. Water treatment and disinfection in food, beverage factories, and fermentation industries;
