Accurate detection of impact wear tester for protective clothing

NegotiableUpdate on 02/23

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The impact wear tester for protective clothing is accurately and intelligently controlled, and the testing frequency and requirements can be set on the control panel. As long as the required parameters are entered in the console, the machine will automatically cycle through testing. During the testing process, the test can be paused at any time, the safety door can be opened, and the degree of sample loss can be observed;

Product Details

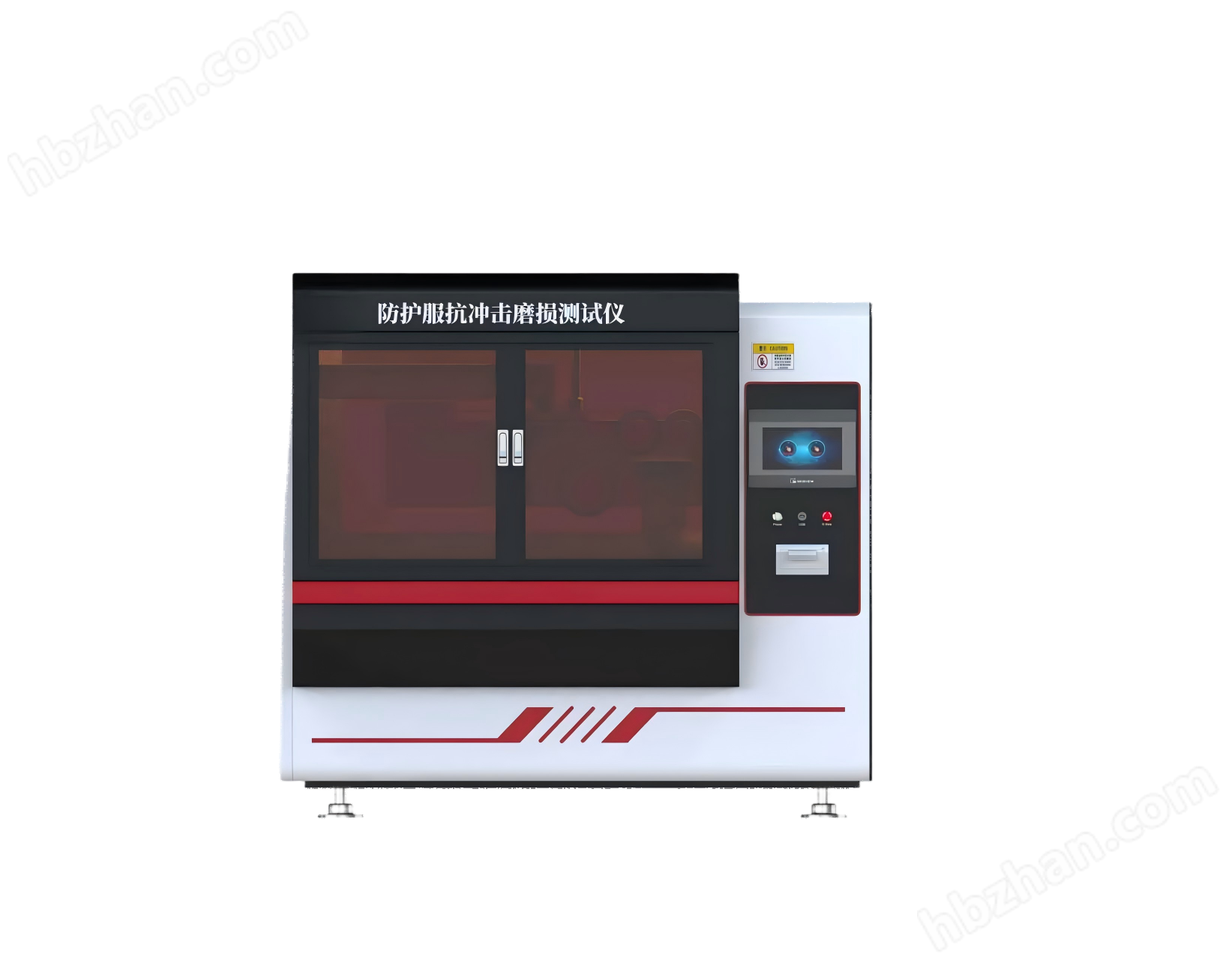

Accurate detection of impact wear tester for protective clothing

Protective clothing impact wear tester

‌1Introduction‌

Test the protection of motorcycle riders against wear and tear caused by impacts while riding on gravel roads.

Intelligent control, on the control surfaceBoard isCan be set for testingFrequency and requirementsAs long as the required parameters are entered in the console, the machine will automatically cycle through testing. During the testing process, you can pause the test at any time, open the safety door, and observe the degree of sample loss；

Adopting servo drive, the motor response time is short, without speed overshoot or uneven speed phenomenon；

‌2、 Key pointparameter‌

‌parameter item‌	Specifications‌
control system	industrial-gradePLC
operating interface	colorful7Inch touch screen, switching between Chinese and English
Operation method	Full touch operation, capable of setting, calling, and modifying test programs
printer	Embedded printer
Belt transmission speed	8m/s
The hardness of the belt	granularityOP60
wear area	1963mm²
Apply force to the sample	49N
Net pressure on the sample	25kPa
Falling height	50mm
Sample holder	Diameter Φ 75mm
cleaning brush	Diameter Φ 200mm, polypropylene bristles 0.2mm, free length 45mm;
USBTest software socket, read data, can connect to computer
