Henan Zhong'an Electronic Detection Technology Co., Ltd
Breathing air compressor
NegotiableUpdate on 03/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Breathing air compressor
Product Details
Product Introduction
Technical Specifications
| inflation speed | 100L/min |
| Bottle filling time | 6L 300bar/18min 6.8L 300bar/20min； 12L 200bar/24min |
| work pressure | 200 Bar / 2900 Psi； 300 Bar / 4350 Psi |
| Drive Type | Three phase/single-phase electric motor |
| Power | 2.2Kw (220 V - 50 Hz)； 3 Kw (380 V - 50 Hz) |
| Volume | 41*38*60cm |
| Net weight | 44 Kg |
| Noise | <75 decibels |
| compression level | 4-cylinder 4-stage |
| dosage | <0.35L |
| Lubricating oil | L-DAC100/L-DAC150/Compressor specific oil/ANDEROL 750 |
| Oil/water separation | 1 oil-water separator |
| Safety valve | 1 final safety valve |
| Respiratory standards | EU EN12021 |

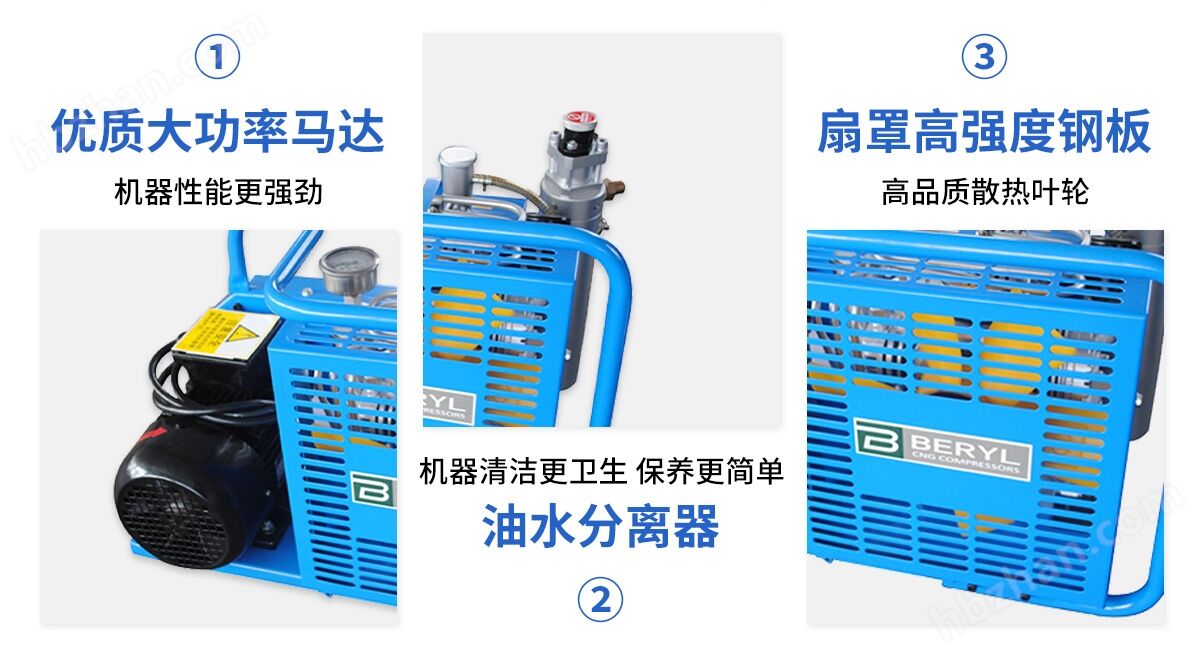

Product detail images
