Copper corrosion tester for petroleum products

1Copper corrosion tester for petroleum productsProduct Introduction

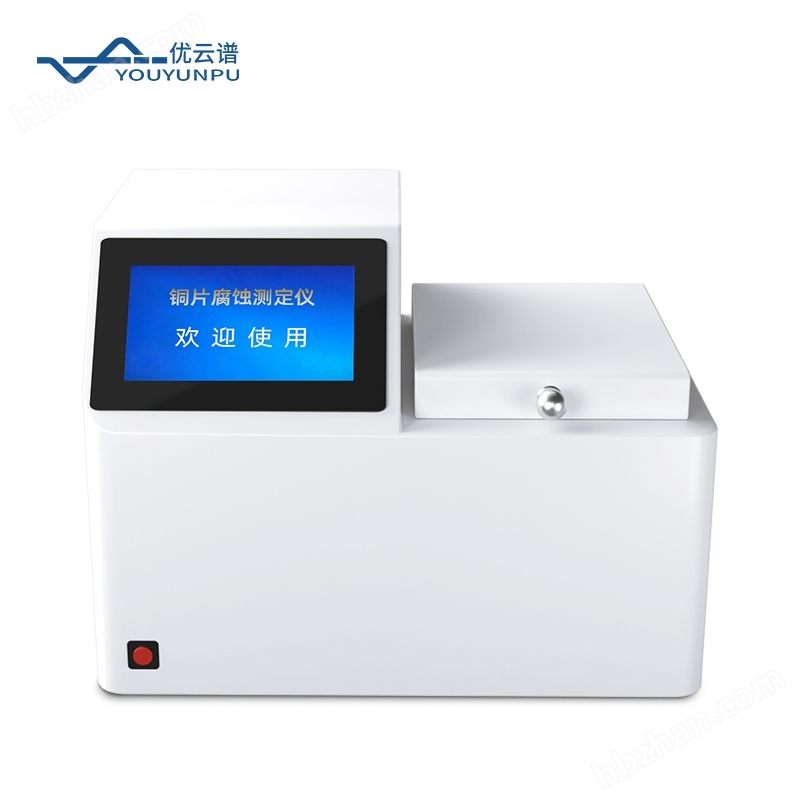

YP-5096Copper corrosion tester for petroleum productsAdopting advanced 32-bit MCU and 7-inch large screen LCD display, it has the advantages of high temperature measurement accuracy, rapid temperature rise, stable and reliable, easy operation, and easy maintenance. This machine is suitable for transformer factories, power supply departments, refineries, railways, shipping, oil storage stations, and commercial departments to monitor and control the corrosion properties of petroleum products, and is a necessary instrument for rapid analysis. The measurement results comply with the GB/T5096 method specification.

2、 Main functions and features

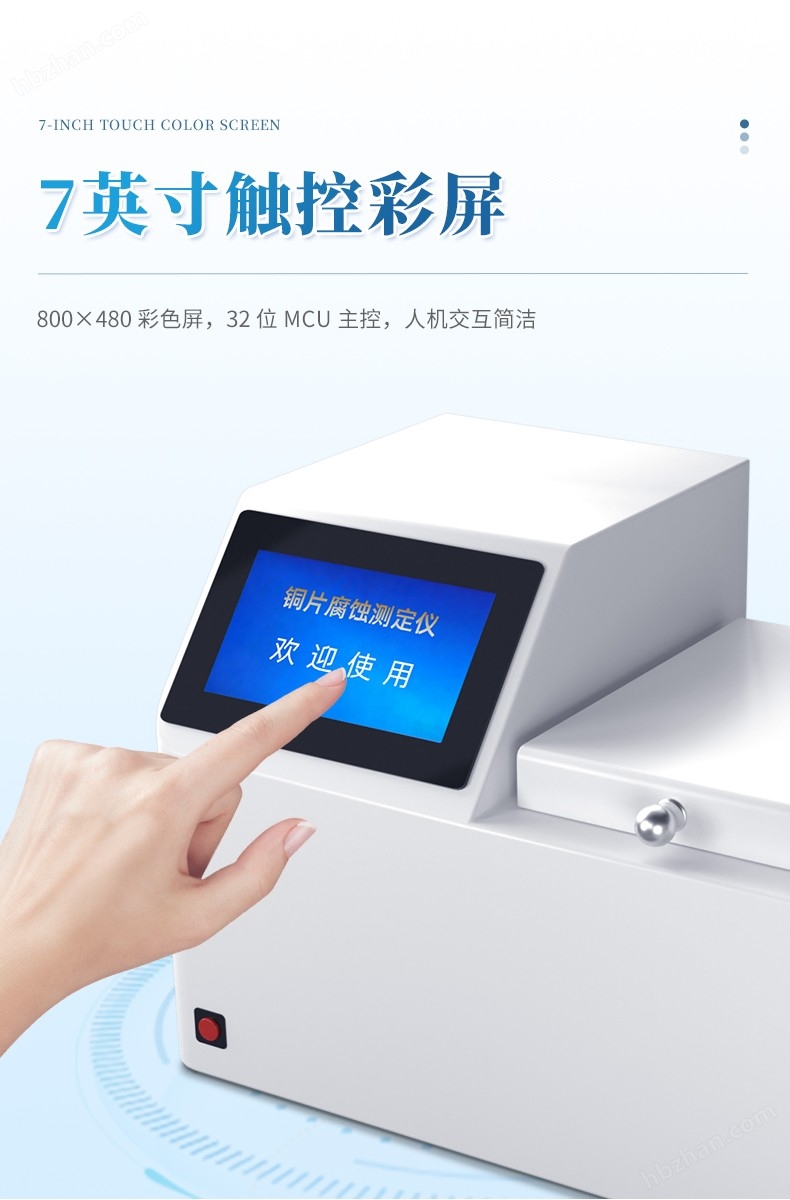

1. 7-inch color touch screen, resolution 800 × 480, simple and easy-to-use human-computer interaction.

2. Adopting a 32-bit microprocessor as the main control core and a new generation intelligent operating system.

3. Adopting high-precision temperature sensors, the temperature curve is displayed in real-time.

4. PID automatic temperature control and overheat protection.

5. Metal bath heating, fast heating, low operating cost, and maintenance free.

6. Equipped with a timer reminder and a buzzer to alert upon completion of the experiment.

7. The instrument is equipped with an electronic version of the ASTM standard color palette, which is convenient to use.

8. Configure RS232 interface to connect to LIMS system.

3、 Technical indicators

1. Applicable standards: GB/T5096, ASTM D130, ISO3735, DIN51789

2. Heating method: Metal bath dry heating

3. Temperature measurement accuracy: 0.1 ℃

4. Temperature control range: room temperature~120 ℃

5. Temperature control accuracy: ± 0.1 ℃

6. Time control range: 1 minute to 99 hours

7. Work units: 4

8. Rated power: 1100W

9. Dimensions: 455 × 320 × 335 (mm)

10. Weight: 18 kg

4、 Usage conditions

1. Environmental temperature: 5 ℃~40 ℃

2. Relative humidity:<80%

3. Input power supply: AC220V ± 10V 50Hz
