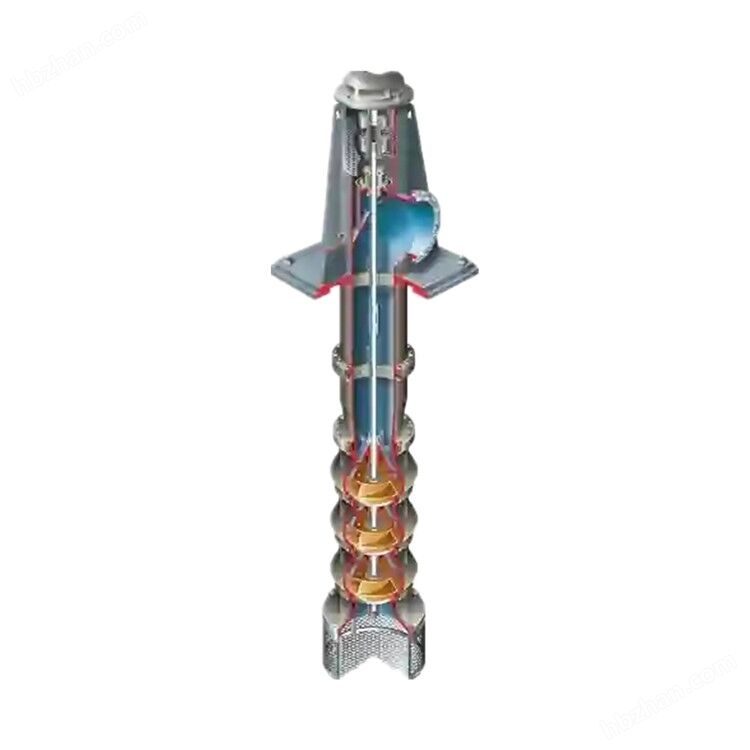

Flowserve locator process pump HPX-V

Product Name:Flowserve locator process pump HPX-V

Product Model:HPX-V

productIntroduction:

The HPX-V vertical pipeline process pump allows you to save space without compromising performance. Its sturdy structure and compact footprint make it an ideal choice for high-pressure, high-temperature applications with limited installation space. Its design can reliably withstand the harsh operating conditions commonly found in the oil and gas as well as hydrocarbon industries.

Flowserve locator process pump HPX-V Performance Characteristics：

The inline vertical housing can withstand nozzle loads that comply with ISO 13709/API 610 requirements to minimize shaft misalignment and extend the service life of rotors, bearings, and seals to the maximum extent possible.

The raised face flange complies with ASME B16.5 standard, Class 300. Surface smoothness meets ISO 13709/API 610 standards (ISO and JIS flanges available)

The shell and lid are designed with metal to metal mating, featuring restricted controlled compression gaskets to ensure proper sealing and alignment.

The nozzle guide vanes reduce inlet vortices and ensure reliable cavitation allowance.

The high-precision cast impeller with dynamic balance can minimize vibration to the maximum extent, ensuring smooth operation over a wide flow range.

The replaceable casing and impeller wear-resistant ring reduce the cost of parts. The back wear ring is a standard configuration for all pump sizes. Provide optional arrangements and materials.

ISO 21049/API 682 sealing chambers are suitable for various sealing components, including dual pressurized and non pressurized container types used for harsh working conditions. Provide a complete API 682 seal flushing pipeline plan.

The shaft design complies with ISO/API shaft deflection and runout standards.

parameter

• Model:HPX-V

• Flow rate: 1200 m3/h (5200 gpm)

• Lift up to 325 m (1070 ft)

• Standard pressure up to 42 bar (600 psi)

• Temperature range: -40 ° C to 400 ° C (-40 ° F to 750 ° F)

• Size range: from 1.5HPX6A-V (min) to 10HPX21A-V (max)

API material grades: S6, S8, C6, A8, D1, D2

Installation: Vertical

• Material: Metal

•Origin: United States
