Intelligent top mounted mixer
NegotiableUpdate on 03/02
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The RWD100AS intelligent top mounted mixer is a programmable top mounted mixer with a large LCD touch screen display. Adopting self-locking chuck, adjustable speed and time, used for solid-liquid, liquid-liquid or medium high viscosity sample mixing; Mainly used in fields such as scientific research, pharmaceuticals, chemical engineering, petrochemicals, cosmetics, food, and biology.
Product Details
Product application:
●RWD100ASIntelligent top mounted mixerIt is a programmable top mounted mixer with a large LCD touch screen display. Adopting self-locking chuck, adjustable speed and time, used for solid-liquid, liquid-liquid or medium high viscosity sample mixing; Mainly used in fields such as scientific research, pharmaceuticals, chemical engineering, petrochemicals, cosmetics, food, and biology.
Main features:
● Brushless motor improves the carbon free environment and prevents carbon powder from contaminating the sample;
● RWD100ASIntelligent top mounted mixerStrong and stable stirring ability, with a processing torque of up to 60N. cm, can meet the needs of most routine experiments in the laboratory;
● RWD100ASIntelligent top mounted mixerStrong and stable stirring ability, with a processing torque of up to 60N. cm, can meet the needs of most routine experiments in the laboratory;
● user-friendly design
① Intuitive operation, 4.3-inch LCD capacitive touch screen, easy to operate with gloves;
② Screen lock: Lock the screen to prevent accidental operation;
③ Clear digital display screen, which can clearly show the speed, facilitating speed control and recording;
④ It has a smooth start function, effectively preventing the sample medium from splashing out;
⑤ Convenient mixing blade clamp, easy to replace mixing blades, no need for any tool assistance, no risk of key loss, easy and convenient operation;
⑥ After the clamp is installed in place, there will be a sound prompt to fully avoid misalignment of the mixing blade installation;
⑦ Corrosion resistant plastic clamp, effectively avoiding organic solvent corrosion;
⑧ Configure the stirring blade penetration hole, users do not need to adjust the installation height of the instrument, only need to adjust the installation position of the stirring rod.
● The brand new motor and ventilation design significantly reduces equipment operating noise and improves equipment service life;
● By using a microelectronic processor, the stirring speed can be continuously and stably output, unaffected by changes in material viscosity;
● By using a microelectronic processor, the stirring speed can be continuously and stably output, unaffected by changes in material viscosity;
● Equipped with overload protection function; In case of overload, short circuit or abnormality, the circuit will be automatically cut off and an alarm will be triggered to ensure the safety of the experiment;
● Double support rods fix the host and double clamp fixing clips, making the machine more stable and secure.

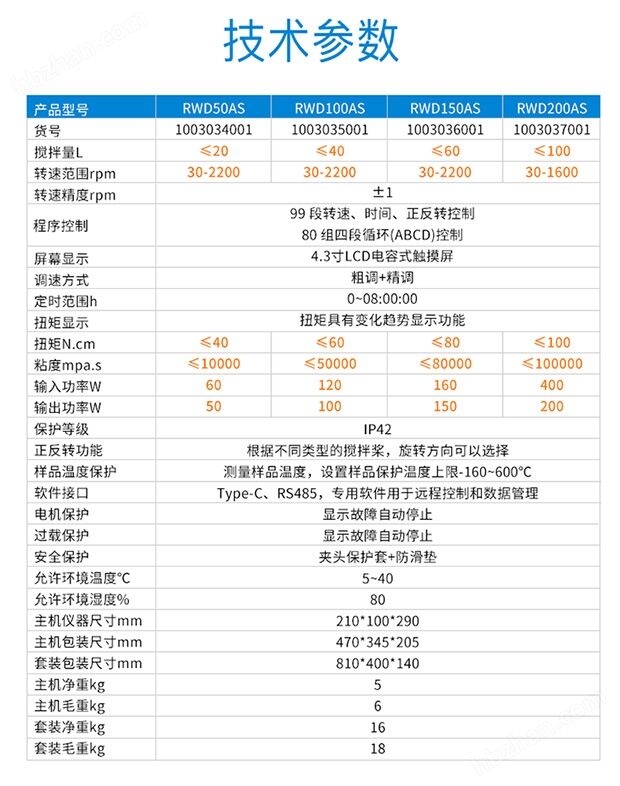

| Product Parameters: | |
|---|---|
| model | RWD100AS |
| Item Number | 1003035001 |
| Maximum mixing capacity | 40L |
| speed range | 30-2200rpm |
| Speed accuracy | ±1rpm |
| program control | 99 speed, time, forward and reverse control |
| 80 sets of four stage cycle (ABCD) control | |
| screen display | 4.3-inch LCD capacitive touch screen |
| speed regulation method | Coarse adjustment+fine adjustment |
| Timing range h | 0~08:00:00 |
| Torque display | Torque has a trend display function |
| Maximum torque N.cm | 60 |
| Maximum viscosity mpa. s | 50000 |
| Input power W | 120 |
| Output power W | 100 |
| Forward and reverse rotation function | According to different types of impellers, the rotation direction can be selected |
| Sample temperature protection | Measure the temperature of the sample and set the maximum temperature limit for sample protection to -160~600 ℃ |
| software interface | Type-C、RS485， Specialized software for remote control and data management |
| Motor Protection | Display fault automatic stop |
| overload protection | Display fault automatic stop |
| safety protection | Chuck protective cover+anti slip pad |
| Allowable ambient temperature ℃ | 5~40 |
| Allow ambient humidity% | 80 |
| Host instrument size mm | 210*100*290 |
| Host packaging size mm | 475*340*200 |
| Package size mm | 803*400*140 |
