Polyurethane drum cable manufacturer

NegotiableUpdate on 01/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The safety compliance of polyurethane drum cable manufacturers has been rigorously verified. Its outer layer adopts high-quality rubber sheath, which has excellent wear resistance, weather resistance and anti-aging performance, and can adapt to complex working conditions. The cable has good flexibility and is suitable for repeated bending movements of the reel, making it less prone to damage due to frequent movements. Stable conductivity, capable of efficient power transmission, suitable for mechanical equipment such as cranes and winches that require cable winding and unwinding on drums, providing continuous and reliable power support for equipment operation and ensuring smooth operation.

Product Details

Polyurethane drum cable manufacturer

Scope of application

This product is dedicated to providing stable support for the accompanying power supply system of heavy machinery. The specific applicable scenarios are as follows:

·Accompanying power supply systems for various types of grab bucket machines, gantry cranes, and cranes;

·Roll equipment that requires frequent retraction and loading operations;

·Special occasions where cables require stretching, twisting, and forced movement;

·Can adapt to damp or dry indoor environments, and can also be installed and used in outdoor environments;

Product Features

·High tensile and winding resistance: able to easily cope with repeated stretching and winding actions during equipment operation, maintaining stable performance

·Mechanical load bearing capacity: capable of withstanding high-intensity mechanical pressure generated during the operation of heavy machinery, ensuring long-term reliable operation

·Excellent oil resistance: Complies with EN60811-404 standard and performs well in industrial environments exposed to oil stains

·Reliable flame retardancy: compliant with IEC60332-1-2 standard, enhancing safety during use

·Resistant to environmental erosion: It has the characteristics of hydrolysis resistance, salt spray resistance, and mold resistance, and is suitable for various complex environments

·Zhuoyue's cold resistance: Zui can tolerate low temperatures of -50 ℃ and can work normally in cold regions

Technical certification

·Obtain CE certification

·Meets the requirements of VDE0250 standard

·Meet the environmental regulations of RoHS and REACH

Polyurethane drum cable manufacturer

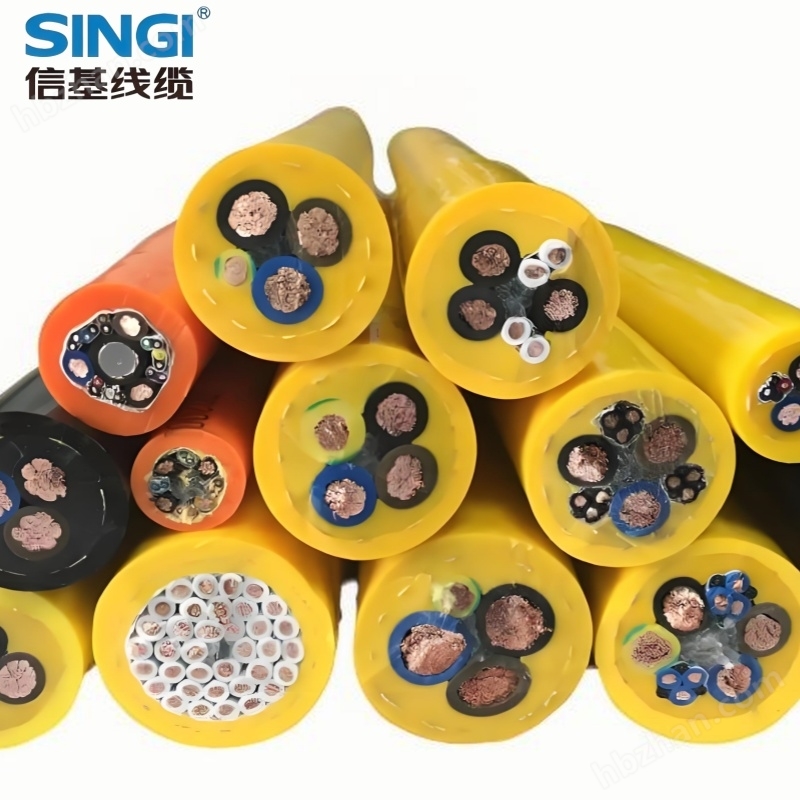

structure

1. Conductor: using multi strand twisted bare copper wire, in accordance with IEC60228 standard Class 5

2. Core wire insulation: using rubber compound to ensure good insulation performance

3. Tensile strengthening core: located at the center of the cable, significantly enhancing the overall tensile strength of the cable

4. Inner sheath: made of rubber compound material

5. Braided layer: Wide mesh aramid braided layer enhances the stability and anti-interference ability of cable structure

6. Outer sheath: made of rubber compound material, with colors of black and yellow

Technical Specifications

parameter category	Specific content
Core wire identification	According to DIN VDE0293 standard, black core wire with white numerical numbering is used
conductor resistance	Compliant with IEC60228 Class 5 standard
rated voltage	≤6mm²：450/750V；＞6mm²：0.6/1KV
insulation resistance	＞20MΩ x km
test voltage	4000V
Grounding protection core wire	G=with yellow green grounding protection core wire, X=without yellow green grounding protection core wire
temperature range	Fixed installation: -60 to+105 ℃; Mobile installation: -50 to+90 ℃
Zui small bending radius	Fixed installation: 5 times the diameter of the cable; Mobile installation: 7.5 times cable diameter

Rubber sheathed drum cableWith its comprehensive performance advantages and wide adaptability, it can provide solid power transmission guarantee for the stable operation of various heavy machinery under complex working conditions, and is a reliable cable choice in the industrial field.

The product price is for reference only. If you need to inquire, please contact the homepage sales~
