S900-Y Conventional Smoke Online Monitoring System

NegotiableUpdate on 03/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The S900-Y continuous smoke monitoring system is a combination of online analysis technology and Chinese environmental monitoring technology, carefully crafted through our company's years of rich experience in industrial processes.

Product Details

Product Introduction

Technical Specifications

gas detection	flue gas
Detection Principle	High precision PID photoionization/electrochemical sensor
Testing Scope	0～100.0%VOL, Other ranges can be customized
resolution	0.1%VOL（0～100 %VOL）
Detection method	Pump suction measurement, available in pipeline, flow, and diffusion types
working method	Online continuous operation, pump suction sampling
sampling flow	10 liters per minute (standard)
response time	T90≤30S
output signal	Bus based RS485 RTU, capable of communicating with data acquisition instruments and uploading to environmental monitoring departments
alarm method	1 or 2 passive contact (dry node) signal outputs and alarm points can be set.
working environment	Atmospheric pressure ± 30%, -40 ℃~+70 ℃, higher temperature environments require customization or optional pre-treatment systems.
relative humidity	≤ 95% RH (non condensing environment), customized or optional pre-treatment system is required for use in higher humidity environments.
Working Voltage	Cabinet AC220V
Weight	Instrument cabinet weighs approximately 20kg
sensor lifespan	PID principle 2-3 years/electrochemical sensor 2-3 years
display mode	High brightness LED display screen
Debugging method	controller
Detection error	≤± 3% FS, high precision customizable

Product detail images

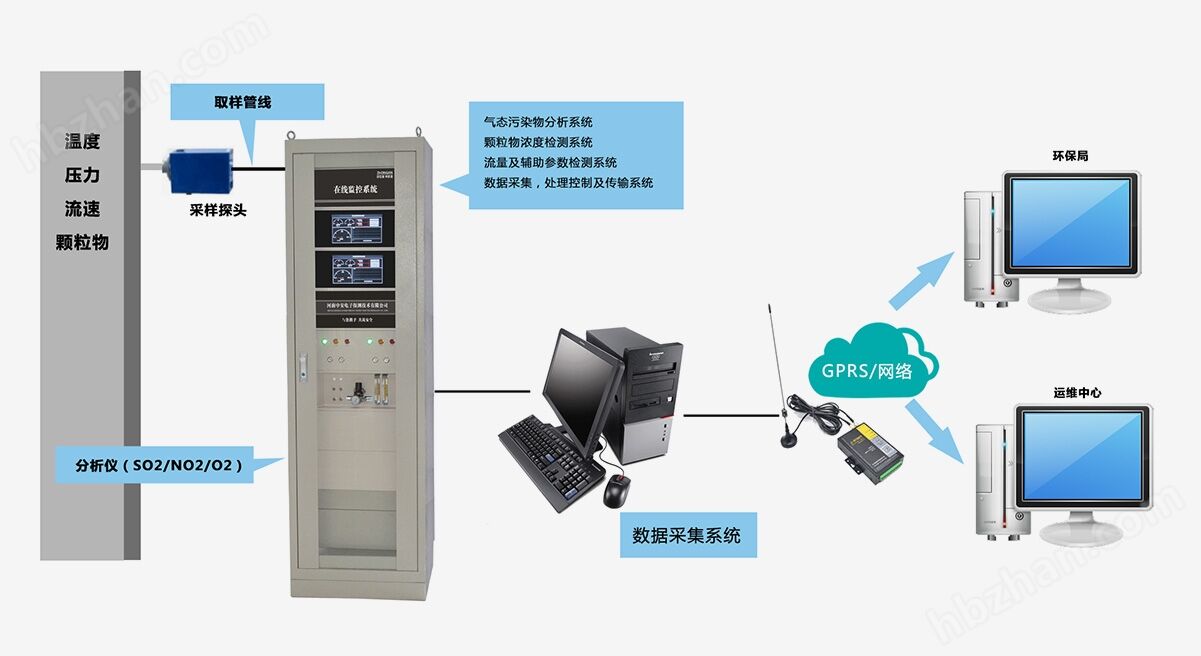

S900-Y常规烟气在线监测系统_05
