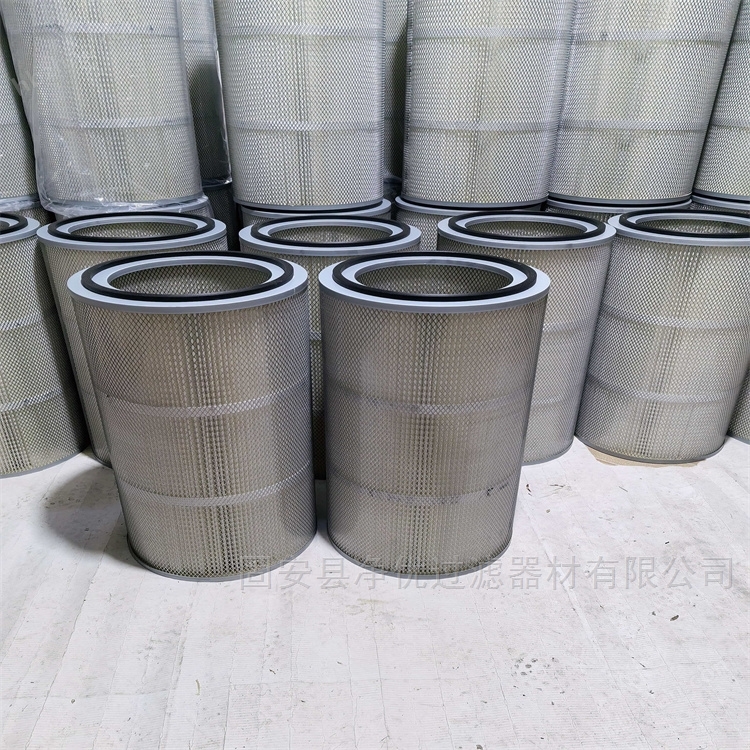

The 350 * 660 single pass small hole high-efficiency dust removal filter cartridge for Jingyou filtration shot blasting room is a pleated filter cartridge designed specifically for the pulse blowback system of sandblasting/shot blasting machines.

• Overall dimensionsOuter diameter 350mm x length 660mm, inlet and outlet diameter approximately 240mm.

• filtration areaApproximately 8 square meters per unit (standard), customizable for larger areas.

• Filtering accuracy/efficiencyPTFE coating ≥ 99.99% @ 0.3 μ m, conventional polyester ≥ 99.9% @ 1 μ m.

• Initial pressure difference≤ 150Pa (clean air at room temperature), low resistance and energy-saving.

• Upper limit of working pressure differenceConventional ≤ 0.4MPa, recommended operation ≤ 0.25MPa, good blowback recovery.

• Operating TemperatureRegular temperature ≤ 85 ℃, temperature resistant version ≤ 100 ℃, high temperature version can be customized.

• filter mediaStandard PTFE coated polyester filter material, surface filtration, hydrophobic and oil resistant, dust does not penetrate the substrate, excellent dust cleaning performance. Optional anti-static (10 ⁴ -10 ⁸ Ω), flame retardant, temperature resistant modification, suitable for flammable, explosive, high temperature, oil containing and other working conditions.

• End cap and skeletonThe end cap is made of galvanized steel plate/stainless steel, bonded with polyurethane foam adhesive; The internal and external support is made of galvanized diamond mesh/stainless steel mesh, which is resistant to suction collapse, blow explosion, and has high strength. It is suitable for the airflow impact and vibration environment of sandblasting/shot blasting.

• sealUsing closed cell chloroprene rubber/fluororubber sealing rings to ensure no bypass leakage at the flower plate and avoid secondary dust.
