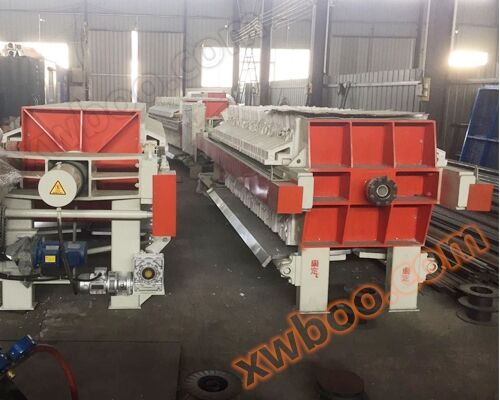

automaticcompressfilter pressWhen compressed, the motor drives the reducer, and the transmission components push the compression plate to compress the filter plate. The compression screw and fixed nut are designed with reliable self-locking helix angles to ensure reliability and stability during compression. Implement automatic control using a comprehensive motor protector. Can provide overheating and overload protection for the motor.

Structure and working principle of filter press:

1The filter press consists of a frame, filter plate, clamping system (in manual, hydraulic, and mechanical forms), and an electrical control cabinet.

2The rack part serves to support the compression device and filter plate, consisting of a machine base, compression plate, thrust plate, and main beam.

3Automatic filter pressThe filter plate is installed on the main beam between the compression plate and the thrust plate, with the filter cloth sandwiched between them.

4Plate and frame filter pressandchamber pressure filterThe structure is the same, except that the filtering part is composed of one plate, one frame, and filter cloth, and the space between the plate and frame is the filter chamber.

5The liquid flow form of the compression filter press is divided into open flow and dark flow. Clear flow refers to the direct discharge of filtrate from the outlet holes of each filter plate to the outside of the machine; Underflow refers to the merging of filtrate from each filter plate and discharging it out of the machine through the outlet hole.
