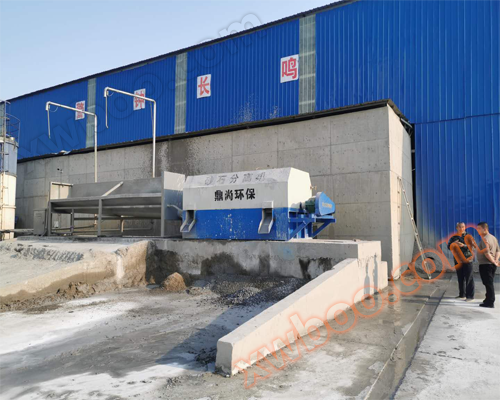

Drum type sand and gravel separator

Manufacturer of drum type sand and gravel separatorDrum type sand and gravel separator equipmentA machine that separates stones and sand, usually composed of a mechanical chassis, frame, reducer, conveyor belt, rotary screen, vibrating screen, push-pull screen, water spray gun, engine or motor, etc.

After reversing the mixer truck to the workstation,Sand and gravel separatorThe main engine, tanker water pump, and equipment flushing pump start working. The water pump adds water to the tanker, and the tank rotates to clean the internal concrete residue. Then, the waste slurry is poured into the discharge tank and enters the sand and gravelseparatorInternally, the drum of the sand and gravel separator rotates, and the stones are output from the stone outlet by the inner screw, while the sand is output from the sand outlet by the outer screw. The separated slurry flows into the slurry mixing tank through the drainage ditch, and is then sent to the main station building for ingredient use through the slurry mixing and recovery device, or throughfilter pressSeparate the slurry and water into solid and liquid, press cement and fly ash into a filter cake, and use the filtered water for further flushing, thus achieving the effect of water recycling. At this point, the sand, stones, slurry water, clean water, and filter cake separated by the sand and gravel separation system have all been reused.
