Zhuhai Obert Measurement and Control Technology Co., Ltd
Electrical proportional valve/electrical converter
NegotiableUpdate on 02/14
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The T-1000 converter is an electrical conversion device that reduces the supply pressure and generates a pressure output proportional to the input electrical signal. The supply pressure range is 125kPa to 700kPa. Equipped with a volume amplifier to provide high flow capacity (up to 20.4m3/h)
Product Details

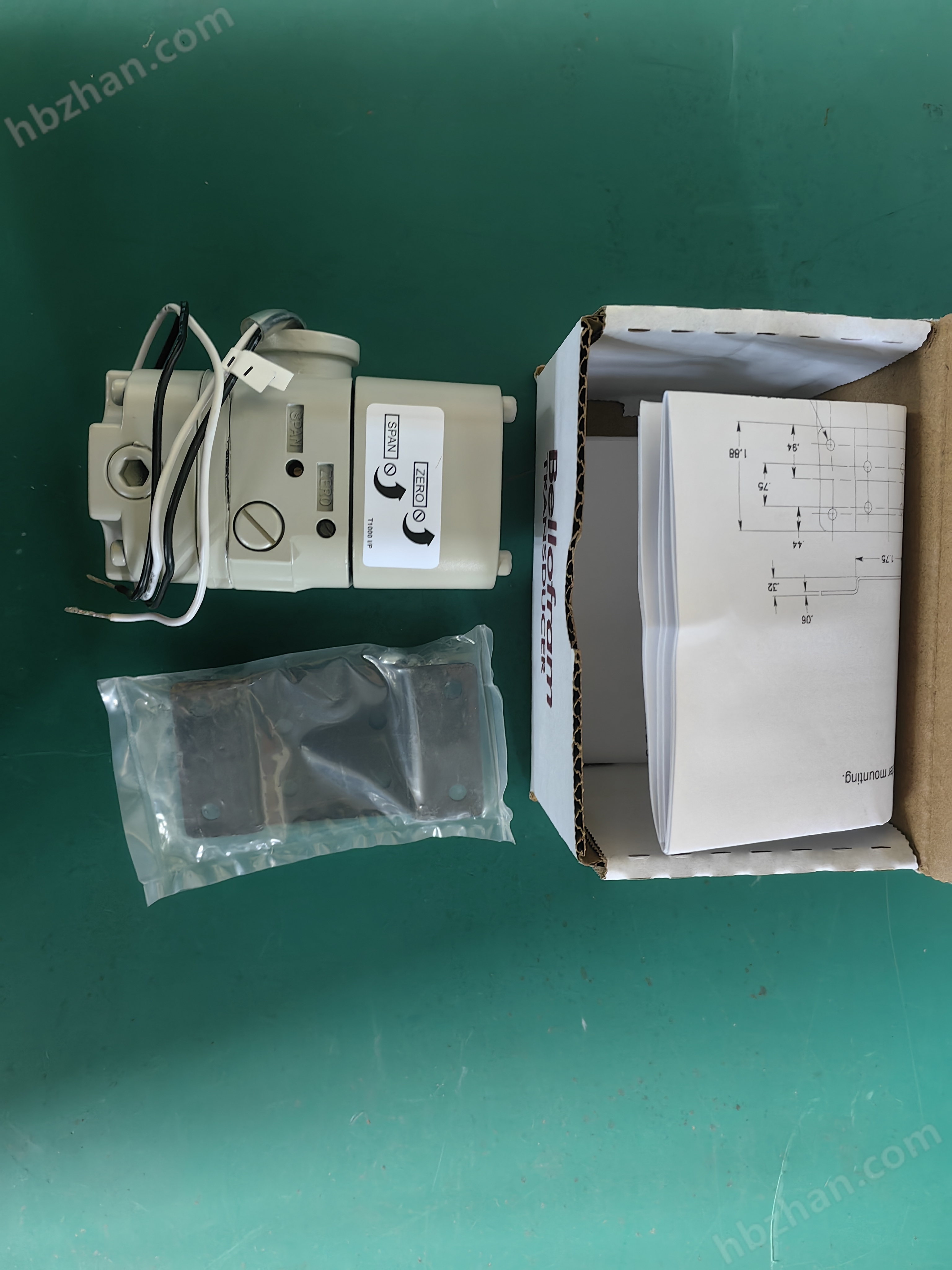

Electrical proportional valve/electrical converter
The T-1000 converter is an electrical conversion device that reduces the supply pressure and generates a pressure output proportional to the input electrical signal. The supply pressure range is 125kPa to 700kPa. Equipped with a volume amplifier to provide high flow capacity (up to 20.4m3/h)
961-070-000 characteristic parameters
Electrical proportional valve/electrical converter
Traffic: Universal and Internal Security Types
When the supply pressure is 175kPa, the flow rate is 7.6m3/h, and when the supply pressure is 700kPa, the flow rate is 20.0m3/h.
Explosion-proof type
When the supply pressure is 175kPa, the flow rate is 3.2m3/h, and when the supply pressure is 700kPa, the flow rate is 3.1m3/h.
Supply pressure: The supply pressure should exceed the output pressure by 21kPa, but the maximum is 700kPa.
Sensitivity of supply pressure: ± 0.15% range, with a change of 10kPa in supply pressure.
Linearity: less than ± 1.0% range
Repeatability: less than ± 0.5% range
Lag: less than ± 1.0% range
Exhaust volume: 0.2 m3/h in the middle range.
Interface size: 1/4 "NPT (gas) 1/2" NPT (electric)
Size: Universal and internal safety type 54mm × 54mm × 102mm
Explosion proof type 163mm × 151mm × 192mm
Weight: Universal and Internal Safety Type: 2.1lb. (0.94kg)
Explosion proof type: 5.2lb. (2.35kg)
American Maersk Line Rover
Electrical converter
Order information
General purpose converter | ||||
|
input
|
Output |
Order Number |
Resistance (Ω) |
|
psi |
KPa |
|||
|
4-20mA |
3-9 |
20-60 |
961-072-000 |
90 |
9-15 |
60-100 |
961-073-000 |
90 |
|
3-15 |
20-100 |
961-070-000 |
180 |
|
3-27 |
20-185 |
961-074-000 |
220 |
|
6-30 |
40-200 |
961-075-000 |
220 |
|
1-17 |
7-117 |
961-116-000 |
250 |
|
3-15 |
20-100 |
961-116-000 |
180 |
|
|
10-50mA |
3-15 |
20-100 |
961-076-000 |
70 |
3-27 |
20-185 |
961-077-000 |
85 |
|
6-30 |
40-200 |
961-078-000 |
85 |
|
|
0-5V |
3-15 |
20-100 |
961-079-000 |
615 |
3-27 |
20-185 |
961-080-000 |
530 |
|
6-30 |
40-200 |
961-081-000 |
530 |
|
0-10V |
1-17 |
7-117 |
961-119-000 |
|
3-15 |
20-100 |
961-913-000 |
||
|
1-5V |
3-15 |
20-100 |
961-082-000 |
|
3-27 |
20-185 |
961-083-000 |
||
6-30 |
40-200 |
961-084-000 |
||
|
1-9V |
9-15 |
60-100 |
961-995-000 |
|
3-15 |
20-100 |
961-085-000 |
985 |
|
3-27 |
20-185 |
961-086-000 |
840 |
|
6-30 |
40-200 |
961-087-000 |
840 |
|
T-1000 hazardous field converter | ||||
|
4-20 mA |
3-15 |
20-100 |
961-098-000 |
180 FM |
3-15 |
20-100 |
961-098-000 |
180 CSA |
|
3-15 |
20-100 |
961-110-000 |
180 |
|
3-15 |
20-100 |
961-099-000 |
180 FM |
|
3-27 |
20-185 |
961-105-000 |
220 FM |
|
3-15 |
20-100 |
961-106-000 |
180 CSA |
|
3-27 |
20-185 |
961-107-000 |
220 CSA |
|
3-15 |
20-100 |
961-108-000 |
180 |
|
3-27 |
20-185 |
961-109-000 |
220 |
|
1-9V |
3-15 |
20-100 |
961-142-000 |
FM |
The T-1000 converter can be used in conjunction with Bellofram's T-75 repeater when the output pressure is less than 3psi or greater than 30psi. | ||||
T-1000 High Overflow Converter | ||||
|
4-20mA
|
3-9 |
20-60 |
961-130-000 |
90 |
9-15 |
60-100 |
961-131-000 |
90 |
|
3-15 |
20-100 |
961-132-000 |
180 |
|
3-27 |
20-185 |
961-133-000 |
220 |
|
6-30 |
40-200 |
961-134-000 |
220 |
|
3-15 |
20-100 |
961-135-000 |
180 |
|
1-17 |
7-117 |
961-136-000 |
250 |
|
|
10-50mA |
3-15 |
20-100 |
961-137-000 |
70 |
3-27 |
20-185 |
961-138-000 |
85 |
|
6-30 |
40-200 |
961-139-000 |
85 |
|
|
0-5V |
3-15 |
20-100 |
961-163-000 |
|
3-27 |
20-185 |
961-164-000 |
||
6-30 |
40-200 |
961-165-000 |
||
0-10V |
1-17 |
7-117 |
961-166-000 |
|
3-15 |
20-100 |
961-167-000 |
||
|
1-5V |
3-15 |
20-100 |
961-168-000 |
|
3-27 |
20-185 |
961-169-000 |
||
6-30 |
40-200 |
961-170-000 |
||
|
1-9V
|
9-15 |
60-100 |
961-171-000 |
|
3-15 |
20-100 |
961-172-000 |
||
3-27 |
20-185 |
961-173-000 |
||
6-30 |
40-200 |
961-174-000 |
||
T-1000 Extended Type | ||||
0-60 mA |
2-120 |
15-830 |
961-107-000 |
|
4-20 mA |
3-120 |
20-830 |
961-111-000 |
|
2-60 |
14-420 |
961-117-000 |
||
0-10 V |
3-120 |
20-830 |
961-112-000 |
|
0-5 V |
2-60 |
14-420 |
961-118-000 |
|
BSPT: British Standard Pipe Thread, add "BSPT" after the order number when placing an order
