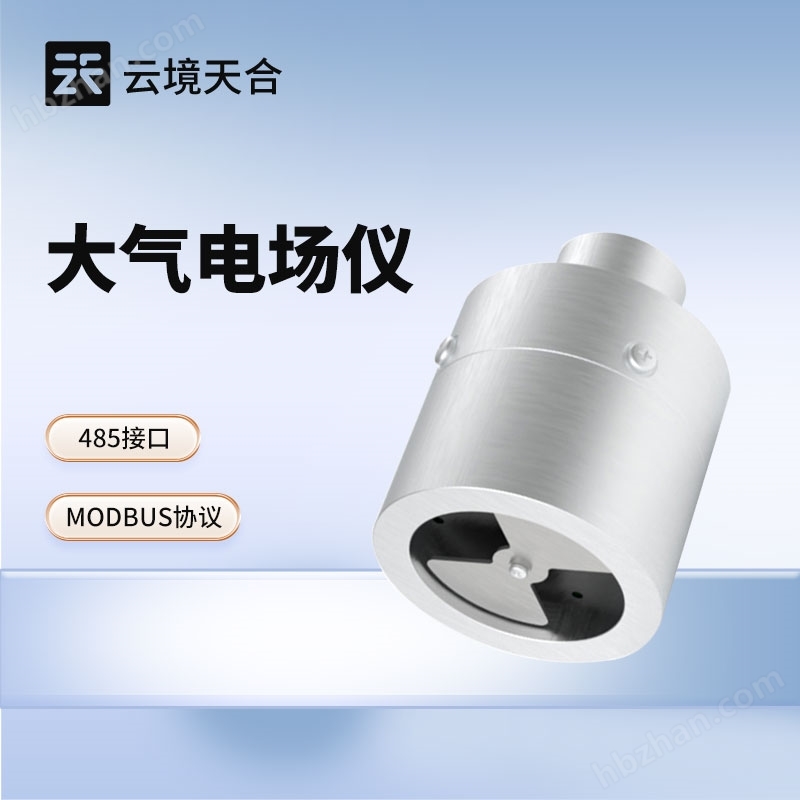

Ground electric field meter

Ground electric field meterIt is a professional instrument used to measure the strength of atmospheric electric fields near the ground, studying atmospheric electrical phenomena, predicting weather changes, and preventing natural disasters by monitoring changes in electric fields. Continuously measure the electric field strength near the ground to reflect the distribution and motion of charges in the atmosphere. Adopting shielding design and filtering technology to reduce the impact of electromagnetic noise.

1、 Application Environment Description

Ground electric field meterIt is a high-precision lightning monitoring and warning device that can monitor real-time changes in the electric field in the atmosphere, accurately capture the traces of lightning activity, and provide strong support for the prevention of lightning disasters.

In the field of meteorological monitoring, it can be widely applied to meteorological stations to continuously and uninterrupted monitor lightning activity in the region, providing key data for weather forecasting and meteorological disaster warning. By analyzing changes in atmospheric electric fields, meteorological departments can predict the probability, intensity, and development trend of lightning weather in advance, issue lightning warning signals in a timely manner, and provide important reference for the safe operation of the public, aviation, navigation, and other industries.

For various places that are susceptible to lightning strikes, such as petrochemical enterprises, communication base stations, power facilities, high-rise buildings, etc., it can be used as an important monitoring tool for lightning protection. By installing around these locations, real-time monitoring of the dynamic changes in the surrounding atmospheric electric field can be achieved. When the strength of the atmospheric electric field exceeds the preset threshold, an alarm can be triggered in a timely manner to remind staff to take corresponding protective measures, such as stopping outdoor operations and shutting down key equipment, effectively reducing the losses caused by lightning disasters to personnel safety and equipment and facilities.

In addition, it also has certain application value in industries such as agriculture and forestry. In agricultural production, knowing lightning weather information in advance is helpful for arranging agricultural activities reasonably, avoiding crop losses caused by lightning weather, and also ensuring the safety of agricultural workers. In forestry, monitoring lightning activity can be used to prevent forest fires caused by lightning strikes and provide protection for forest resources.

2、 Technical performance and specifications

1. Technical parameters

2. Dimensional drawing

3、 Installation and electrical connections

1. Installation

1.1: This product belongs to a relatively precise instrument and should avoid phenomena such as falling and impact.

1.2: The equipment should avoid high temperatures, pay attention to waterproofing, and prevent icing;

1.3: The unpacked instrument should be stored in a dry, ventilated, and non corrosive gas free place. When handling, it should be handled with care and avoid severe vibration. Dust, moisture, and drastic temperature changes can affect the service life of this product, so avoid placing it in these areas.

The equipment should have good grounding during use

2. Electrical installation

The cable is a 4-core shielded wire, and the line sequence is defined as follows:

1- Red - Power cord (12~24VDC)

2- Blue - Ground (GND)

3-Green-485B

4-Yellow-485A
