Intelligent pipeline caliper M300

Schroeder's "Ce Li De"Intelligent pipeline caliper M300It is an intelligent pipeline caliper used in pipeline surveying and geophysical exploration, operation and maintenance pipe diameter measurement, and other scenarios. This product is portable and adopts two measurement modes: laser and ultrasonic. It can measure without water and with water, with high measurement accuracy (error less than 5%). The folding design of the equipped telescopic rod can measure deep wells over 9 meters, with high measurement efficiency and the ability to visualize multiple working conditions.

Schroeder's "Ce Li De"Intelligent pipeline caliper M300functional characteristics

1. High measurement accuracy

Ultra high integration pipe diameter measurement module with measurement error less than 5%

2. Clever retractable folding design

The vertical and horizontal bars can be extended or folded, effectively achieving deep well measurement of more than 9 meters

3. High measurement efficiency

Simultaneous measurement of pipe top elevation, pipe diameter size, pipeline orientation, etc., efficient operation, time-saving and labor-saving

4. Multi condition visualization measurement

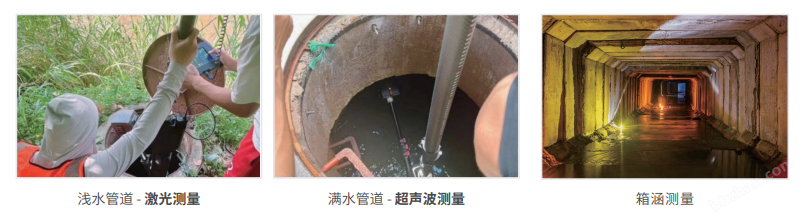

Suitable for measuring semi water, full water, eccentricity and other working conditions, dual camera visualization of underground conditions

Schroeder's "Ce Li De"Application Scenario:

1. Application scenarios for municipal and drainage management units, survey institutes, design institutes, and surveying institutes:

·Pipeline surveying and geophysical exploration;

·Pipeline maintenance and diameter measurement.

2. Application scenarios of water companies:

·Measurement of the diameter of the main water supply pipeline.

3. Industrial parks and chemical industry application scenarios:

·Measurement of underground chemical pipeline diameter;

·Measurement of various industrial pipeline diameters.

4. Application scenarios for construction and supervision units:

·During the acceptance of newly constructed pipelines, the diameter data of the pipelines shall be randomly checked.

5. Application scenarios of railway/highway maintenance department:

·Measurement of culvert pipe diameter for underpass roads.

Schroeder's "Ce Li De"Main Parameters
