Guangzhou Minhong Environmental Protection Technology Co., Ltd
MHF-JF Activated Carbon Industrial Waste Gas Adsorber
NegotiableUpdate on 03/01
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The Minhong Environmental Protection MHF-JF Activated Carbon Industrial Waste Gas Adsorber uses multi-stage honeycomb activated carbon with high adsorption capacity as the adsorption material, which has the advantages of high adsorption and purification efficiency, low resistance, high adsorption efficiency, wide applicability, easy maintenance, and the ability to simultaneously treat various mixed waste gases. Working principle: Dust containing gas is powered by a fan and enters the activated carbon industrial waste gas adsorber under positive or negative pressure. Due to the presence of unbalanced and unsaturated molecular gravity or chemical bonding forces on the solid surface of activated carbon, when the solid surface comes into contact with the gas, it can attract gas molecules, causing them to concentrate and
Product Details
Product Introduction:
Minhong Environmental Protection Jingzhan Brand MHF-JF Activated Carbon Industrial Waste Gas Adsorber adopts multi-stage honeycomb activated carbon with high adsorption capacity as the adsorption material. It has the advantages of high adsorption and purification efficiency, low resistance, high adsorption efficiency, wide applicability, easy maintenance, and can simultaneously treat various mixed waste gases.
Working Principle:
The dusty gas is powered by a fan and enters the activated carbon industrial waste gas adsorber under positive or negative pressure. Due to the unbalanced and unsaturated molecular gravity or chemical bonding force on the solid surface of activated carbon, when the solid surface comes into contact with the gas, it can attract gas molecules, concentrate and maintain them on the solid surface, and adsorb pollutants. After passing through the filter, the waste gas enters the equipment's dust removal system to purify the gas for high-altitude emission standards.
Product Usage
Minhong Environmental Protection Jingzhan Brand MHF-JF Activated Carbon Industrial Waste Gas Adsorber is mainly suitable for waste gas purification in industries such as electronic component production, battery production, acid washing operations, laboratory exhaust, metallurgy, chemical industry, pharmaceuticals, painting, light industry, rubber, shipbuilding, automotive, petroleum, painting, brewing, and furniture production.
Product Parameters:
| serial number | Specification Model | Processing air volume (m ³/h) | Dimensions L * W * H (mm) | Import and export dimensions W * H (mm) | Remarks |
| 1 | MHF-4JF | 3000 | 1500*760*730 | 670*510 | |
| 2 | MHF-6JF | 5000 | 1500*860*830 | 770*610 | |
| 3 | MHF-8JF | 8000 | 1500*1060*1030 | 970*810 | |
| 4 | MHF-10JF | 10000 | 1500*1160*1130 | 1070*910 | |
| 5 | MHF-15JF | 15000 | 1500*1360*1330 | 1270*1110 | |
| 6 | MHF-20JF | 20000 | 1500*1560*1430 | 1470*1210 | |
| 7 | MHF-25JF | 25000 | 1500*1760*1630 | 1640*1410 | |
| 8 | MHF-30JF | 30000 | 1500*1760*1830 | 1640*1610 | |
| 9 | MHF-35JF | 35000 | 1500*1960*1930 | 1840*1710 | |
| 10 | MHF-40JF | 40000 | 1500*2160*2030 | 2040*1810 | |
| Note: 1. The above dimensions are subject to change without prior notice. Please design according to the parameters at that time. | |||||
| 2. Material: The shell is made of A3 carbon steel plate baked paint. Welcome to order 201, 304, 316 stainless steel materials. | |||||
| 3. Special sizes and materials can be customized according to requirements. | |||||
Product Features:
1. The product has a unique structure, low resistance, and high purification efficiency.
2. Pure physical principles, no energy consumption, simple and convenient maintenance.

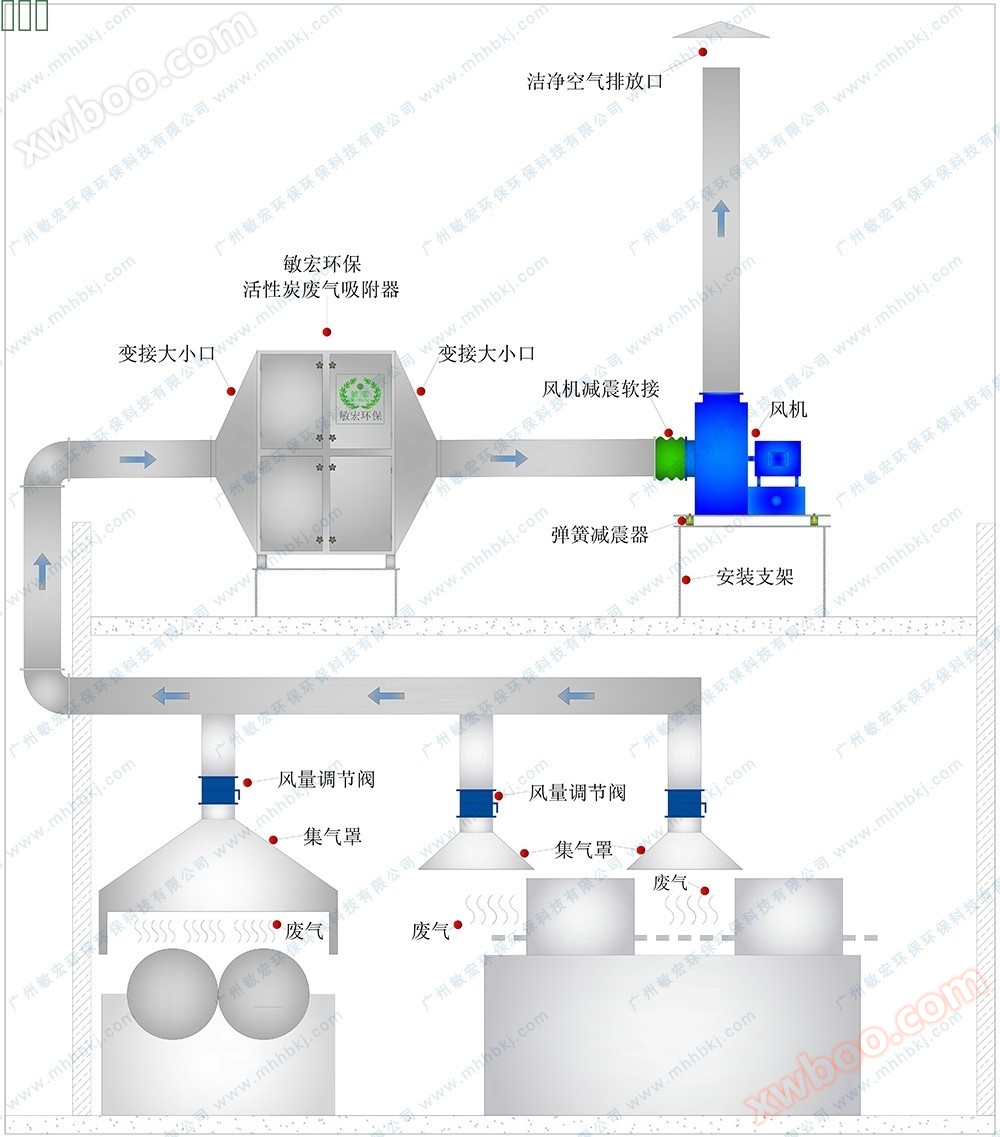

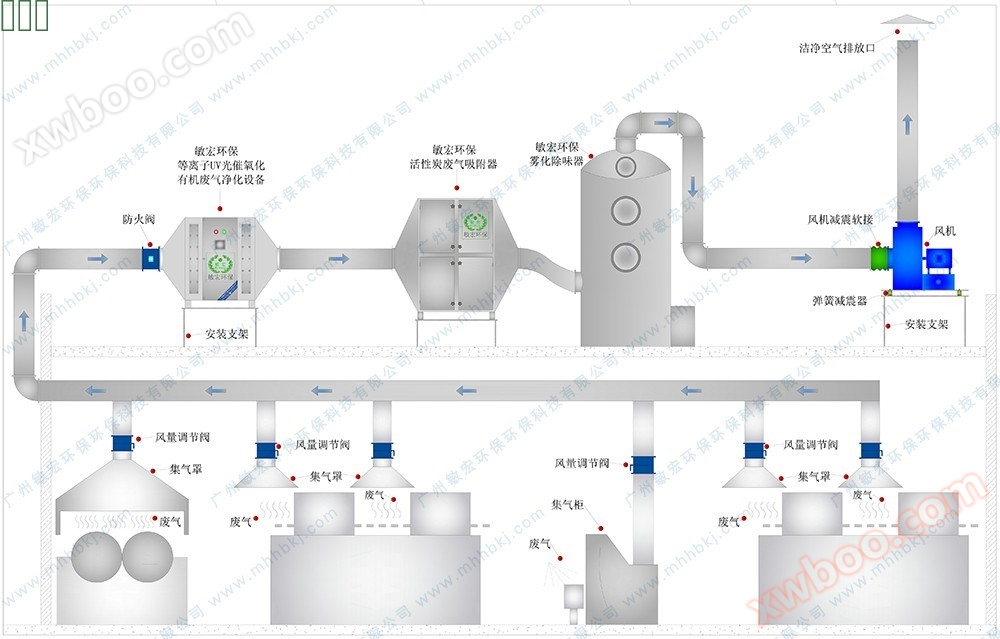

Installation diagram:
