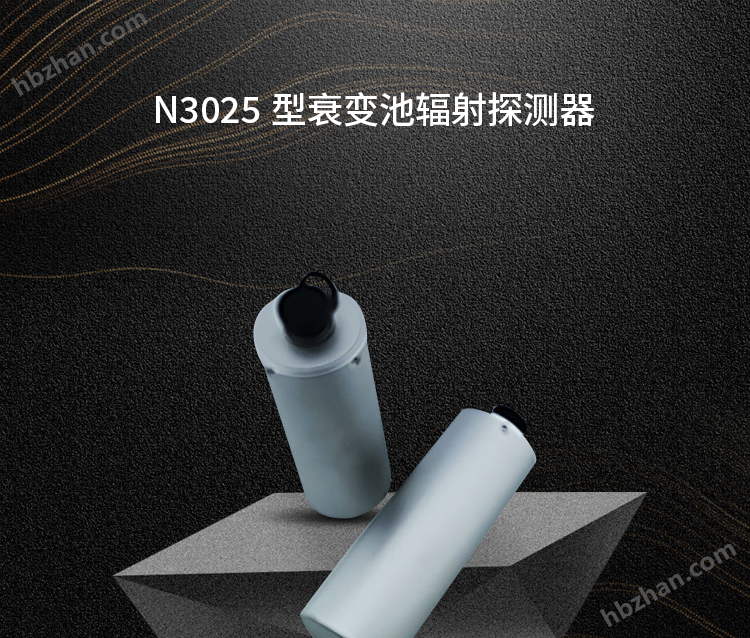

N3025 Decay Pool Radiation Monitoring Probe

Independently developed products, customizable. Provide communication protocols and integrated technical support. Welcome to consult.

1. Real time measurement of gamma and X-ray radiation in the workplace can be achieved

2. Can achieve network communication with the control host and upper computer monitoring system

High sensitivity NaI scintillation detector

Embedded high-speed microprocessor

Aluminum alloy metal shell

1. Measurement range: 0.01uSv/h～600uSv/h

2. Energy response: 40keV to 3MeV

3. Sensitivity: 350cps/uSv/h

4. Relative error: ≤ 15% (20uSv/h)

5. Alarm response time: ≤ 1S (10uSv/h)

1. Temperature: -20 ℃ to+40 ℃

2. Relative humidity: ≤ 98%

3. Power supply mode: DC 7V~24V

4. Detector size: diameter 45mm, length 130mm

5. Weight: 0.6kg
