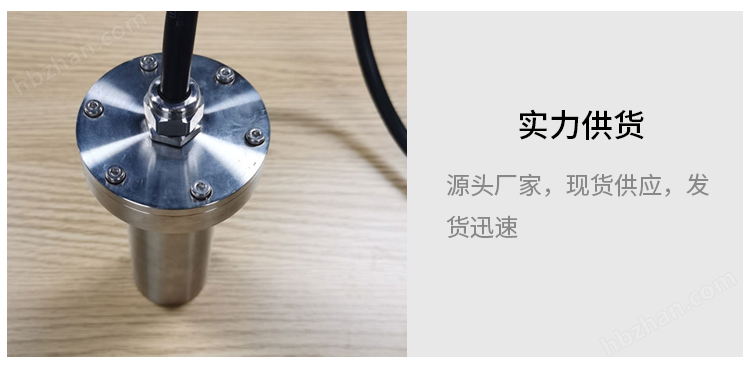

NT-DW50 series underwater radiation detector

Please contact us for specific requirements.

1. Can achieve water immersionγTheXReal time measurement of radiation

2. Can achieve network communication with the control host and upper computer monitoring system

3. Provide 485 interface and MODBUS communication protocol.

•Optional high-sensitivity NaI scintillation detector

•Embedded high-speed microprocessor

•stainless steel casing

1Detector type: NaI scintillation detector, customizable and optionalGMDetector or high range detector.

2. Measurement range: 0.01uSv/h～500 uSv/h，Customizable high range optionsGMDetector range10Sv/h

3. Energy Range:25keV～3MeV

4Sensitivity: Approximately 350cps/ uSv/h

5Relative error: not exceeding ±15%

6. Alarm response time:≤1S （10uSv/h）

1. temperature-20℃～+45℃

2. Power supply method:DC 7V～24V

3.Static power consumption: 12V/ 10mA

4. Detector size:

WD50-L type:Diameter 50mm, length 1000mm (excluding interface)

Weight: Approximately 5.5kg

WD50-Stype:Diameter:75mmLength:150mm

Weight:1.5kg
