Regulating valve type axial flow fan, square wall exhaust fan with electric regulating valve, fire damper, electric sealing valve

NegotiableUpdate on 02/23

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Regulating valve axial flow fan

Product Details

Regulating valve type axial flow fan, square wall exhaust fan with electric regulating valve, fire damper, electric sealing valve

Each series of fans can be equipped with electric regulating valves, fire dampers, and electric sealing valves

supply DZ、CDZ、SF、XBDZ（DFBZ）、DFZ、WEXD(WEXD/DWSP)、LFF、DBF、T35(T40)、SDF Series axial flow fan, side wall axial flow fan, square wall axial flow fan, low-noise fan, transformer axial flow fan, can be made into explosion-proof, fiberglass, stainless steel, anti-corrosion type, variable frequency type, can be equipped with louvers, safety nets, bird proof nets, 60 degree elbows, 90 degree elbows can be made into post type, fixed type, pipeline type, mobile type, wall type, etc.

1、 DZ type low-noise axial flow fan

2、 CDZ type ultra-low noise axial flow fan

3、 SF type low-noise axial flow fan

4、 XBDZ (DFBZ) Square Wall Axial Flow Fan

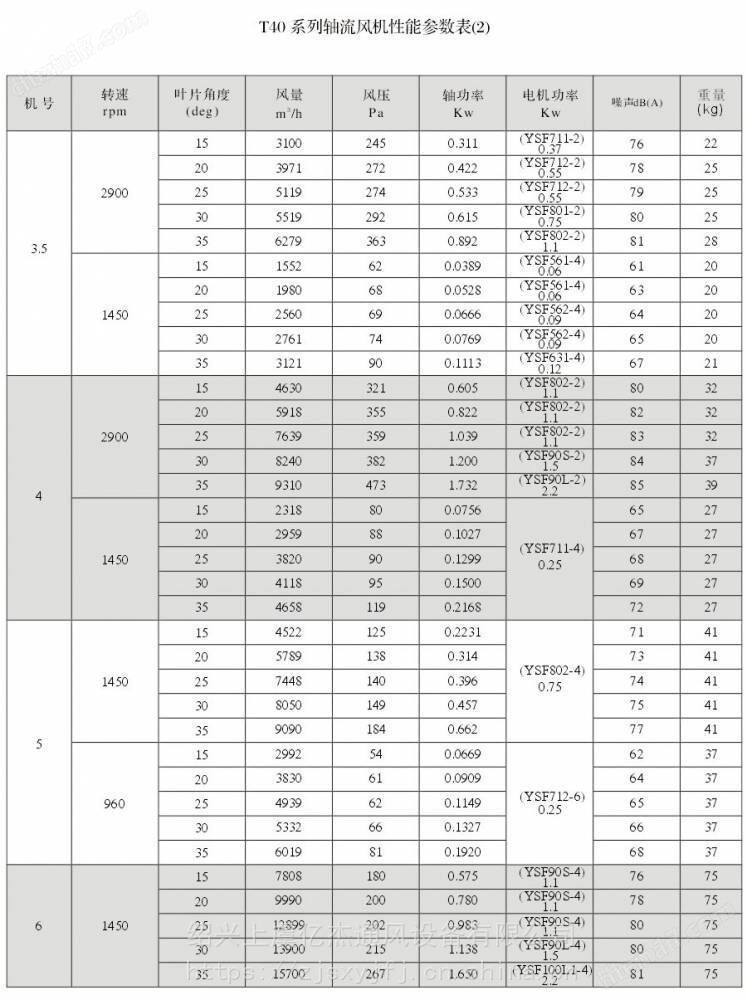

5、 T35-11/T40-11 series axial flow fan

6、 DWEX (DWSP) type side wall fan

1、 Characteristics and Applications

The DWEX side wall fan adopts forward swept blades, low-noise external or internal rotor fan dedicated motor direct drive, and a square shell design that can be easily installed on concrete walls, brick walls, or light steel pressed wall panels. The square rain cover structure is firm and aesthetically pleasing. It has the characteristics of low noise, large air volume, reliable operation, wide range of performance parameters, and easy installation, and is widely used for side wall ventilation and air exchange in factories, mines, workshops, and civil and commercial construction projects. According to the requirements of the conveying medium, it can be made into anti-corrosion and explosion-proof types.
DWEX(WEX)Side wall fans are generally used for side wall exhaust, equipped with a 45 ° rain cover (or specially manufactured to 60 °) and insect proof nets (to prevent insects from flying into the workshop through lights at night). The side wall air supply fan model can be made into DWSP (WSP) according to the needs, equipped with a 90 ° rain cover (windproof, rain proof, dust proof) and insect proof net (can prevent insects from flying into the workshop through lights at night).
Accessory selection: Gravity check air valve (to ensure that the workshop remains isolated from the outside when the fan is not turned on), please specify when ordering.
