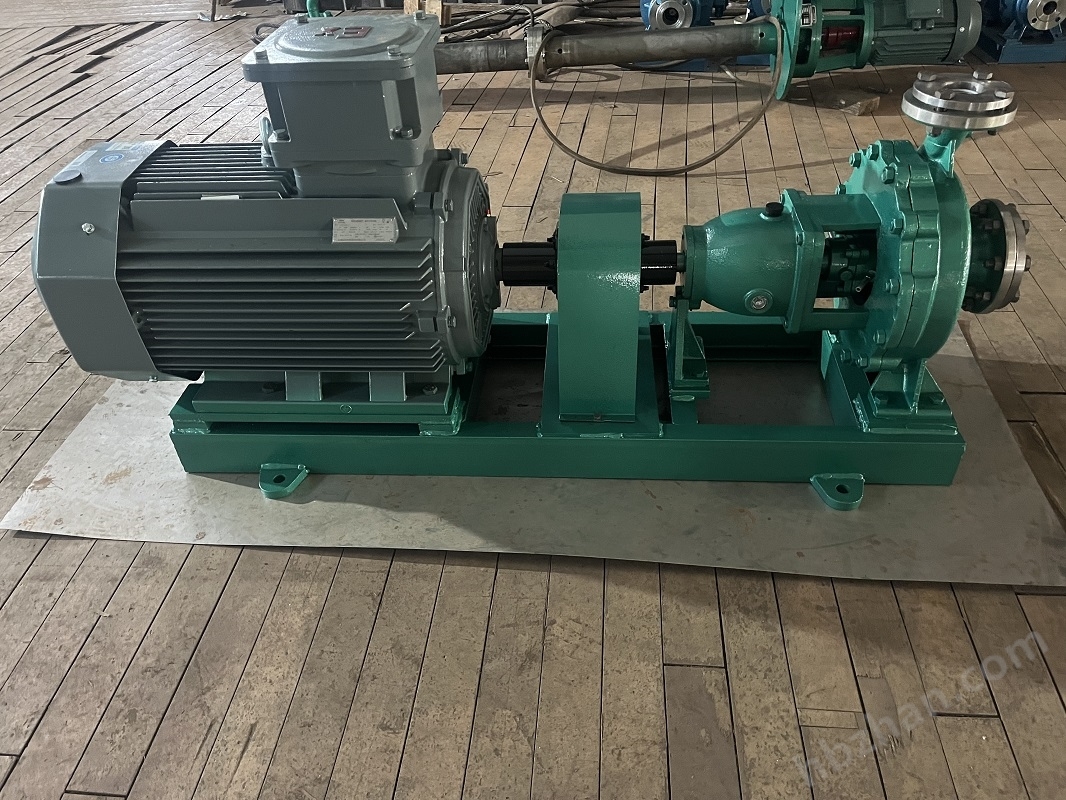

Single stage single suction centrifugal pump

Single stage single suction centrifugal pumpWidely used in industrial and urban water supply and drainage, agricultural irrigation, and for the transportation of clean water or other liquids with physical and chemical properties similar to clean water, with a temperature not exceeding 80 ℃.

Core structural characteristics

Cantilever impeller: The impeller is installed at one end of the pump shaft like a cantilever beam. This eliminates the need for supporting bearings at the impeller end and simplifies the structure.

■ Rear opening design: The connection between the pump body and the bracket (bearing box) is located on the motor side. During maintenance, simply remove the connecting bolts between the pump body and the bracket to remove the entire pump body (including impeller, pump cover, mechanical seal) from the bracket without dismantling the inlet and outlet pipelines and motor, making maintenance extremely convenient.

Axial force balance: The impeller usually has balance holes and is matched with front and rear sealing rings to use pressure difference to balance most of the axial thrust generated by single-sided water inlet, and the remaining axial force is borne by the bearings.

Single stage single suction centrifugal pumpThe main performance parameters include:

■ Speed: 2900r/min or 1450r/min

‌■ 吸入口直径‌： 50～200mm

■ Flow rate: 6.3-400m ³/h

Lift: 5-125m

Sealing methods: packing seal, mechanical seal

■ Material: Cast Iron

Single stage single suction centrifugal pumpIt is the cornerstone of centrifugal pump technology. It laid the foundation for standardization and serialization, and its design ideas extended to various specialized pump types. Whether it is the classic IS type, compact vertical pipeline pump (ISG), or corrosion-resistant chemical pump (IH), their core is the "single-stage single suction" structure.

When selecting, as long as your operating condition is to transport clean or slightly contaminated liquids, and the required head is within the single-stage capacity range,Single stage single suction centrifugal pumpAlmost always an economical and reliable solution.
