Welding smoke and dust removal equipment

The hazards of welding production:

With the continuous expansion of welding production scale, the types of pollution generated during the welding process are diverse and harmful, which can lead to the occurrence of various occupational diseases (such as welder silicosis, manganese poisoning, electric eye inflammation, etc.), and have become a major environmental hazard. With the deepening of related research and the improvement of treatment technology, welding pollution has been relatively effectively controlled. Therefore, it is imperative to strive to transform the welding process from dirty, dry, and dangerous to a green and environmentally friendly operation.

Introduction to Tianlu Environmental Protection Welding Dust Collector:

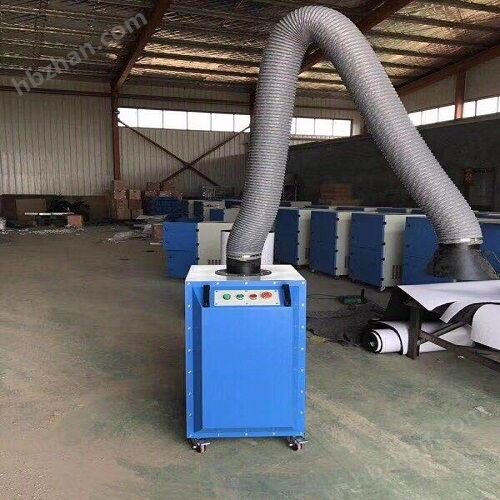

The structure composition of Tianlu Environmental Protection Welding Smoke Dust Collector: The main components include: universal vacuum arm, high temperature resistant vacuum hose, vacuum hood (with air volume regulating valve), flame retardant mesh, flame-retardant high-efficiency filter element, ash drawer combination, casters with brakes, fan, motor, etc.

Tianlu Environmental ProtectionWelding smoke and dust removal equipmentWorking Principle:

Through the gravitational force of the fan, the welding smoke exhaust gas is sucked into the equipment inlet through the universal vacuum hood. A flame arrester is installed at the equipment inlet, and sparks are blocked by the flame arrester. The smoke and dust gas enters the settling chamber and, using gravity and upward airflow, first directly drops the coarse dust into the ash hopper. The fine smoke and dust are captured on the outer surface by the filter element. After being filtered and purified by the filter element, the clean gas flows into the clean room from the center of the filter element. The clean air is further purified by the activated carbon filter and discharged through the outlet to meet the standard.

Tianlu Environmental ProtectionWelding smoke and dust removal equipmentFeatures:

1. Welding smoke dust removal equipment host: This product is produced using seamless molds to ensure the host's sealing and good noise control

2. Welding smoke dust removal equipment filter element: using "Dow" coated anti-static filter cartridge, with low dust adhesion, easy dust cleaning, good ventilation efficiency, and increased filtration area

3. Welding smoke and dust removal equipment suction arm: adopts a universal and hovering suction arm to ensure smooth entry of smoke and dust into the dust collection hood under various working conditions, improve purification efficiency, and ensure purification effect

4. Mobility of welding smoke and dust removal equipment: Equipped with universal wheels and locking function, it is convenient to move freely to ensure point-to-point purification of welding smoke and dust

5. Cleaning method for welding smoke dust removal equipment: The equipment has a reverse blowing function inside, and regularly using a gas source to clean the high-efficiency purification chamber inside the equipment can improve the service life of the equipment and enhance the purification efficiency (optional)

6. Operability of welding smoke and dust removal equipment: The welding smoke purifier adopts a PLC integrated control system, which can achieve one click operation. The studio only needs to open the main button of the equipment to directly use it, which is convenient for customers to operate

7. Maintenance of welding smoke and dust removal equipment accessories: There are no vulnerable parts in the welding smoke purifier, and the high-efficiency purification chamber filter element can be used normally for 10000 hours after regular dust cleaning

8. Convenience of welding smoke dust removal equipment: The welding smoke purifier is a vertical single machine purifier with small footprint, easy to move and can be fixed and used anywhere, making it convenient for workers to operate

Tianlu Environmental Protection Welding Dust Equipment is widely used in industries such as chemical, electronic, metal processing, tobacco, glass, pharmaceutical, food processing, clean rooms, hospitals, and other places with dust and smoke pollution.

Our company's main business:

The treatment of exhaust gas and wastewater in industrial and mining enterprises includes smoke removal, dust removal, odor removal, oil removal, and noise reduction. Specializing in odor control during construction decoration, sewage, and garbage treatment processes; Provide users with environmental pollution control technology and project solutions.

The company's continuous introduction of management concepts and various talents has enabled the company to gradually improve and move towards the goal of scientific and rational development. Superior quality, discounted prices, and meticulous service have received high praise from a wide range of users! The company currently holds multiple qualification certificates in mechanical and electrical installation, environmental engineering general contracting, and environmental engineering design, and has a professional construction management team. Welcome all users to call or write to inquire!
