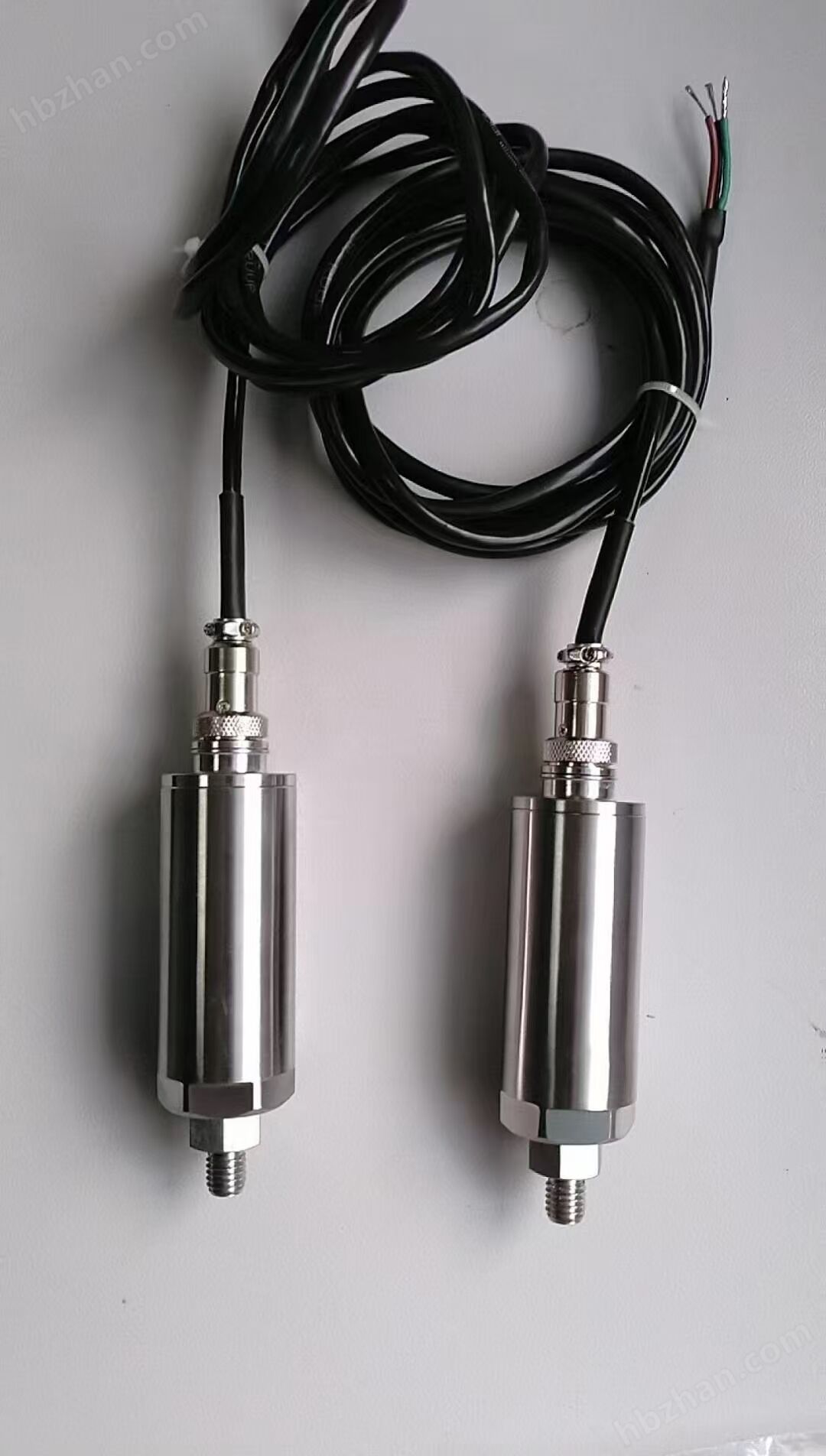

CIJ19900 integrated vibration transmitterBy integrating magneto electric speed sensors and precision measurement circuits, the traditional "sensor+monitoring instrument" mode vibration measurement system has been realized, which is suitable for building an economical high-precision vibration measurement system. This transmitter can be directly connected to DCS, PLC or other systems, and is an ideal choice for vibration measurement of factory equipment such as fans and pumps.

Technical Specifications
◆ External power supply: 24VDC ± 5%
◆ Input
Signal: taken from the signal of the built-in vibration speed sensor
Sensitivity: 20.0mV/mm/s ± 5%
Frequency response: 5-300Hz
Range: Vibration displacement 0~500um (peak to peak)
Vibration intensity 0~50.0mm/s (true effective value)
◆ Current output: 4~20mA active, output load ≤ 500 Ω
◆ Wiring method: Four core aviation socket
Red:+24V, Black: ⊥, Yellow: Current+, Blue: Current -
◆ Temperature range
Running time: -20 ℃~+65 ℃ Storage time: -40 ℃~+80 ℃
Relative humidity: up to 95%, non condensing
◆ Dimensions: Φ 33 × 75mm
Hole size: M10 × 1.5, depth 10mm
Weight: Approximately 300 grams
