1、 Overview-Single phase 4G IoT data center energy consumption statistical instrument

With the rapid advancement of information technology, the importance of data centers as key facilities for information storage, processing, and transmission has become increasingly significant. The power demand of data centers is complex and huge, which puts forward more stringent requirements for the accuracy of energy metering and the efficiency of power management. The traditional electricity metering methods and management methods are no longer suitable for the development needs of modern data centers. Therefore, a single-phase 4G electricity meter for data centers that integrates high-precision measurement, 4G remote communication, and intelligent management functions has emerged. With its own advantages, it has become a new darling in the field of data center electricity management.

2、 Product functional features-Single phase 4G IoT data center energy consumption statistical instrument

Accurate measurement of all power parameters: The ADW310-D16/4G meter has comprehensive power parameter measurement capabilities, including voltage, current, active power, reactive power, apparent power, power factor, as well as the phase angle and frequency of voltage and current. The measurement accuracy is very high, providing a solid accuracy guarantee for energy metering;

Accurate measurement of active energy: This meter can accurately measure both forward and reverse active energy, meeting the strict requirements of the data room for high-precision energy measurement;

Flexible and diverse communication methods: In addition to the traditional RS485 communication method, the ADW310-D16/4G meter also supports wireless communication technologies such as 4G, making it easy to adapt to various installation environments and achieve remote real-time transmission and monitoring of measurement data;

Real time data remote transmission: With the support of 4G network, the electricity meter can instantly transmit measurement data to remote servers or monitoring centers, easily achieving remote meter reading, monitoring and management, greatly improving work efficiency;

Powerful time-sharing billing function: The electricity meter supports setting up two sets of time period meters, which can be subdivided into four time zones per year. Each time period meter can flexibly configure 12 daily time periods and four rates (peak, off peak, off peak, off peak, off peak). This time-sharing billing mechanism helps to effectively reduce peak and off peak periods, optimize electricity quality, and ultimately improve overall economic benefits;

Comprehensive measurement of demand parameters: The electric meter can comprehensively measure three-phase current, forward active power, reverse active power, inductive reactive power, capacitive reactive power, and apparent powerbigThe detailed demand parameters and their occurrence time provide strong support for users to gain a deeper understanding of electricity usage and optimize their electricity strategies.

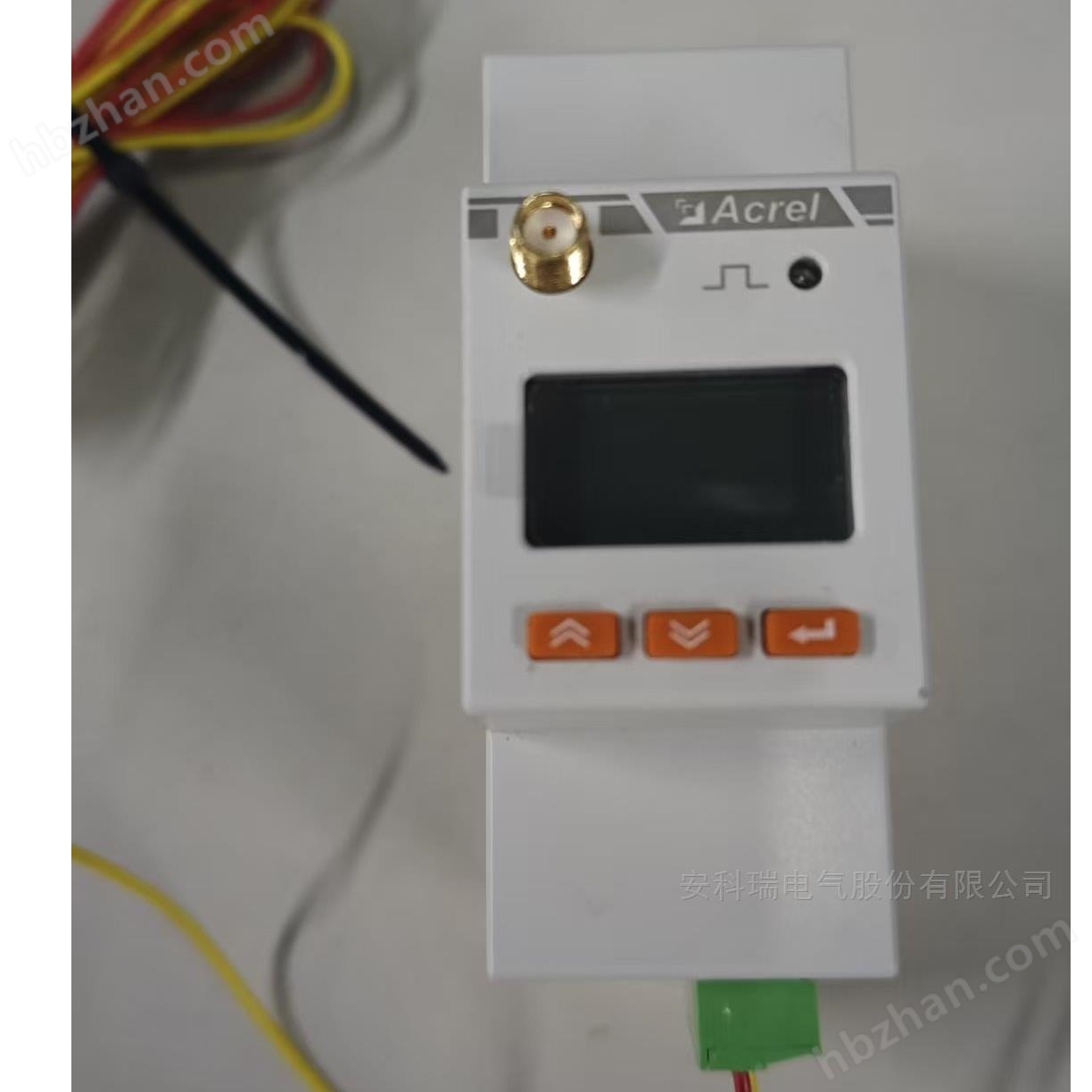

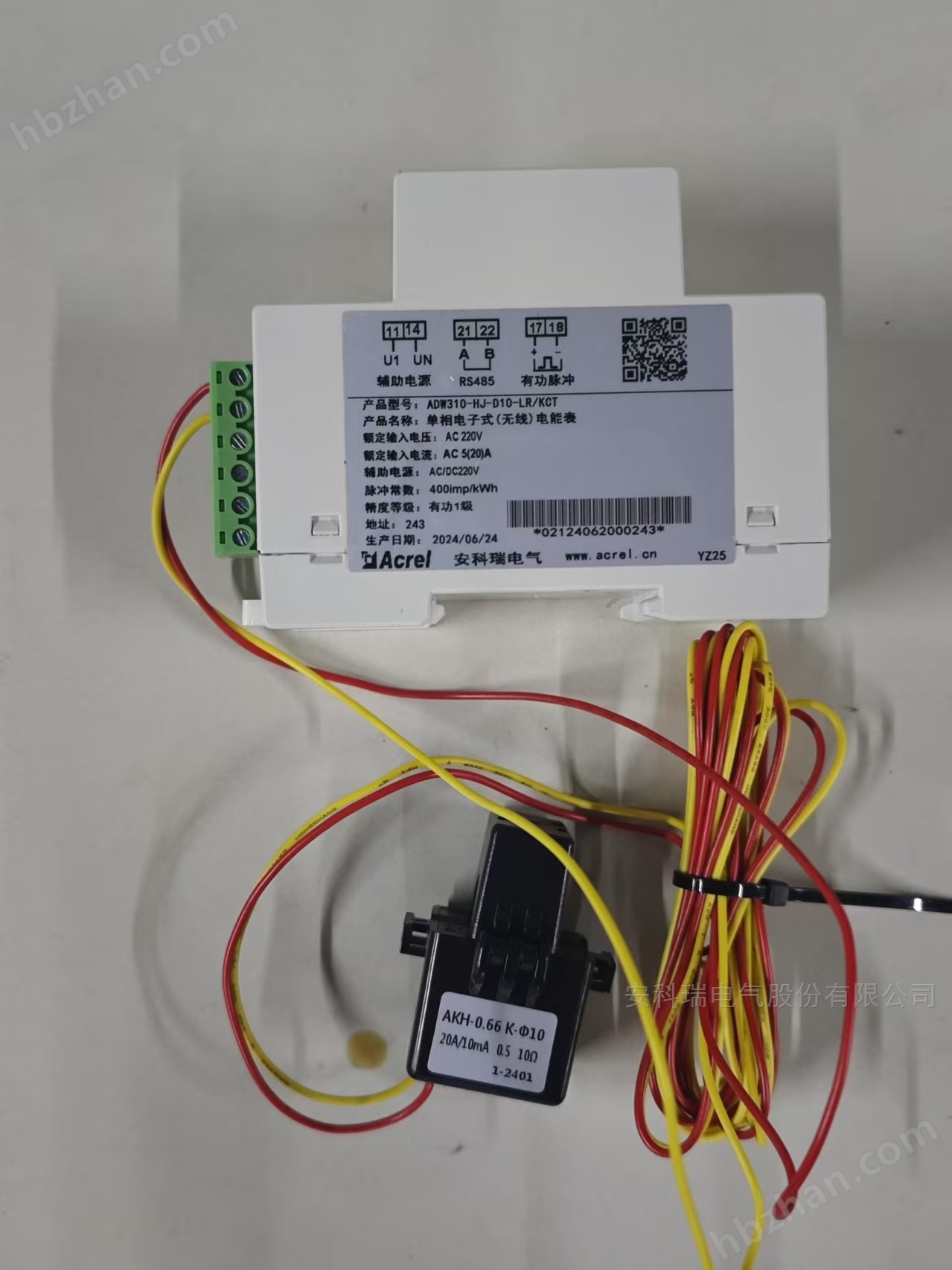

3、 Electricity meter installation

4、 Solution for power monitoring in data center

The power monitoring solution for data centers achieves real-time monitoring, data collection, analysis, processing, and intelligent management of all power equipment in the data center through integrated power monitoring equipment, data acquisition and transmission technology, and intelligent monitoring and management software. This plan aims to improve the power supply reliability of the data center, reduce energy consumption, enhance operation and maintenance efficiency, and ensure the stable operation of the data center.
