HMPP integrated prefabricated pump stationIt is a new type of intelligent drainage equipment made of high modulus polypropylene (HMPP) material, which integrates pump rooms, pipelines, and control systems. It has the characteristics of corrosion resistance, high strength, good sealing, easy installation, and high degree of intelligence. It is widely used in urban drainage, industrial wastewater treatment, rainwater collection, agricultural irrigation, and other fields. The following is a detailed introduction to its core features:

1、 Material advantages: corrosion resistance, high strength, long service life

1. corrosion resistance
   HMPP material has stable chemical properties and excellent corrosion resistance to chemicals such as acids, bases, and salts. It is particularly suitable for corrosive environments such as sewage treatment and industrial wastewater. Compared with traditional metal pump stations, it significantly reduces maintenance and replacement costs.

2. High strength and lightweight

• Through molding process and structural design, the HMPP cylinder has high bending modulus (>1800MPa), high elongation at break (axial>180%, circumferential>240%), and can withstand soil pressure, groundwater buoyancy, and external loads.

• Low material density, light overall weight, easy to transport and install, while reducing the requirements for the foundation.

3. Long-life design
   The design life is over 50 years, with a Vicat softening temperature>150 ℃ and a ball indentation hardness>80MPa, suitable for high and low temperature environments, and reducing material aging problems during long-term operation.

   HMPP Integrated Prefabricated Pump Station Manufacturer

4.

2、 Structural features: integration, sealing, modularity

1. integrated design

• The core components such as the cylinder, water pump, grille, pipeline, and control system are prefabricated in the factory, and only the foundation construction and equipment lifting connection are required on site. The installation cycle is shortened to 1-3 days, reducing the impact of construction on the surrounding environment.

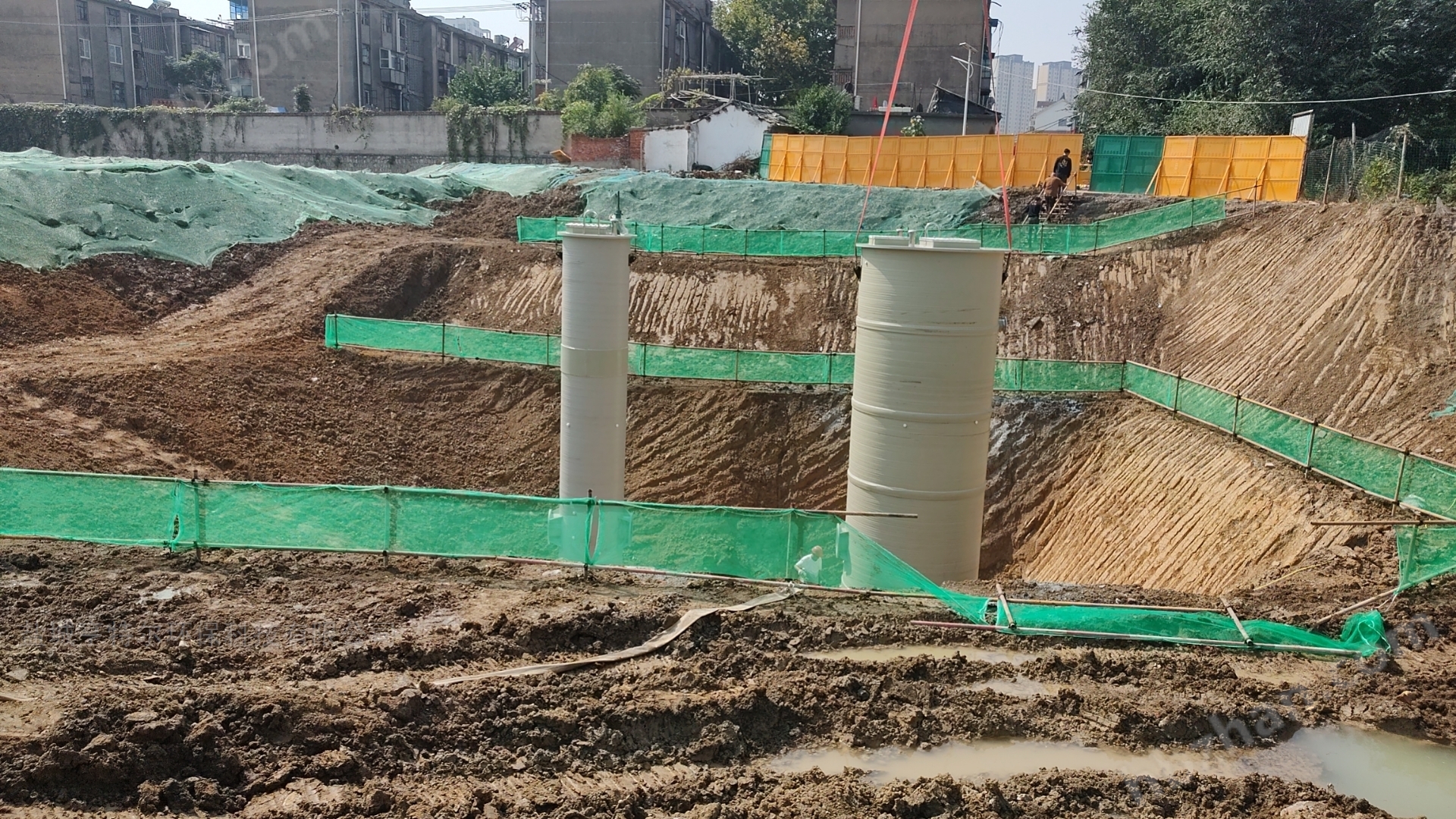

• Compact structure, occupying only 1/5 of the traditional pump station area, can be fully buried underground without damaging the ground landscape.

2. Excellent sealing performance

• Adopting integral molding and sealing technology to prevent sewage leakage and odor emission, in compliance with environmental protection requirements, especially suitable for environmentally sensitive areas such as residential and commercial areas.

• Internal self-cleaning design reduces the risk of sedimentation and blockage, maintaining the cleanliness and hygiene of the pump station.

3. Modular customization

• The diameter and height of the cylinder can be customized according to actual needs (such as a diameter of 1600mm and a height of 4600mm), supporting multiple water pump combinations (such as 2 in use and 1 backup), and adapting to different flow and head requirements.

• It can be equipped with a basket style grille or a crushing grille, made of SUS304 stainless steel, to filter large particles and prevent pipeline blockage.

3、 Intelligent control: automation, remote monitoring, energy-saving and efficient

1. intelligent control system

• Equipped with PLC or Internet of Things (IoT) technology, the pump station's operation status is monitored in real-time through liquid level sensors, flow meters, etc., and the pump's start stop and speed are automatically adjusted to achieve unmanned operation and maintenance.

• Support remote monitoring and fault warning, detect equipment vibration, abnormal temperature, current overload and other issues in advance, and reduce maintenance costs.

2. Energy-saving design

• The water pump adopts an efficient and unobstructed impeller design, with a motor insulation level of F and a protection level of IPX8. It is equipped with an internal overheat protector to ensure long-term stable operation.

• The intelligent speed regulation function adjusts energy consumption according to actual needs, achieving a comprehensive energy saving of 20% -35% and reducing operating costs.

3. safety protection

• The control cabinet is equipped with protective measures such as phase loss, phase failure, overcurrent, and overvoltage. The cabinet is also equipped with functions such as forced ventilation, dehumidification, heating, lightning protection, and grounding.

• PVC plastic steel isolation fences and video surveillance systems can be installed around the pump station to enhance anti-theft and alert capabilities.

•

•


4、 Application scenario: Multi domain coverage, solving drainage problemsHMPP Integrated Prefabricated Pump Station Manufacturer

1. Urban Drainage and Flood Control

• Used for collecting and discharging urban sewage and rainwater to solve waterlogging problems. For example, pump sets can be pre arranged or started in stages based on rainfall forecasts and liquid level changes.

2. Industrial wastewater treatment

• Transporting complex mixed wastewater with pH values ranging from 1 to 13, suitable for the special needs of industries such as chemical, pharmaceutical, and electroplating.

3. Building water supply and drainage

• Suitable for basement drainage, fire water supply and other scenarios, solving the problem of building drainage.

4. Agriculture and Ecological Irrigation

• Provide stable water source pressure for farmland irrigation, meet the growth needs of crops, and can also be used for ecological wetland and landscape water maintenance.

5. Special scenario applications

• Low lying terrain sewage upgrading, rural sewage treatment, highway interchange drainage, tourist attraction drainage, etc., to adapt to complex terrain and decentralized drainage needs.
