Imported water tank steam heating injector silencing heating mixer

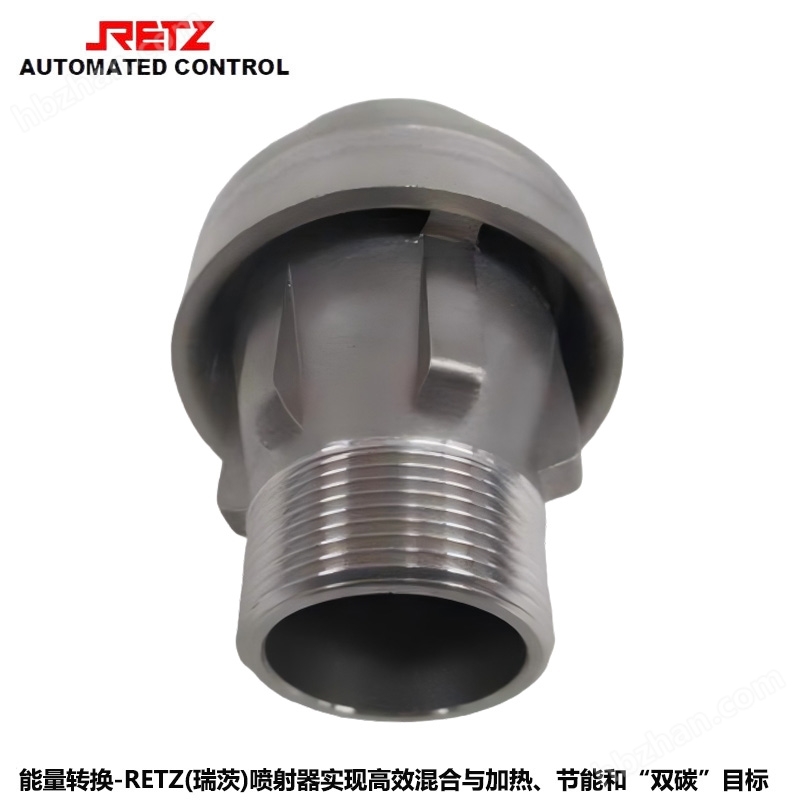

Imported water tank steam heating injector silencing heating mixerIt is a method of rapidly heating water or other fluids directly using steam. When working, the steam jet sucks in and mixes the liquid from the annular hole, and then sprays the heated hot water into the water tank. The circulation caused by the injector ensures sufficient mixing and avoids temperature stratification differences.

application

Silencing heater/Mixtures are suitable for situations where steam is used to heat water or other fluids. Cold water from (bathroom, bathhouse) water tanks and factory water tanks can be quietly heated to boiling point. In a sealed water tank, heating to the highest temperature can achieve150Degree, the use of steam allows for high pressure1MPa

Key Features:

All stainless steel material

Ideal application of boiler feedwater heating and deoxygenation

Effective steam heating of water and other fluids

Heating, mixing, and cycling -No moving parts

compact design -Minimize noise and vibration

Pressure temperature limit

Body design level PN25

Minimum work pressure 0.5 bar g

Large saturation steam condition 17 bar g @ 207°C

High heating temperature (open water tank) 90°C

Imported water tank steam heating injector silencing heating mixerInstallation:

Mainly divided into: (bathroom, bathhouse) water tank heating special type, factory water tank heating special typeSpecial type for horizontal installation of water tanks in bathrooms and bathhouses.

1Special type for heating water tank (bathroom, bathhouse): vertically installed in the center of the water tank, with heated water temperature60Below the threshold, the noise is controlled to55dBWithin. Specially used for: (bathroom, bathhouse) water tank heating bath water.

2Factory water tank heating special type: vertically installed in the center of the water tank and pool in the factory. After heating, the water temperature can be allowed to reach95Temperature and noise control65dBWithin. Specially used for heating water used in the production process of enterprise water tanks.

3Special type for horizontal installation of water tanks in "bathrooms and bathhouses": horizontally installed on the outer wall of "water tanks and tanks", mainly used for heating water in "bathrooms and bathhouses", and the water temperature after heating60Below the threshold, the noise is controlled to55dBWithin.

Provide technical specifications:

（1）The pressure (gauge pressure) of saturated steam, steam flow rate, heating water volume, heating time, starting temperature of heating water, and the temperature to be reached.

（2）Water tank size, water quality condition, and purpose of heating water——Used for bathrooms or bathhouses? For heating systems? Is it used for enterprise production processes? Is it used for heating raw water in power plants? Used for sewage and wastewater? Wait.

（3）Is it necessary to equipAutomatic control system for temperature and liquid level.

（4）Installation method: horizontally installed on the outer wall of the pool? Vertically installed in the pool
